Engine Lift Bracket and Generator Bracket Removal

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the generator bracket bolts (1-3).
  2. Remove the generator bracket.
  3. Remove the front engine lift hook.

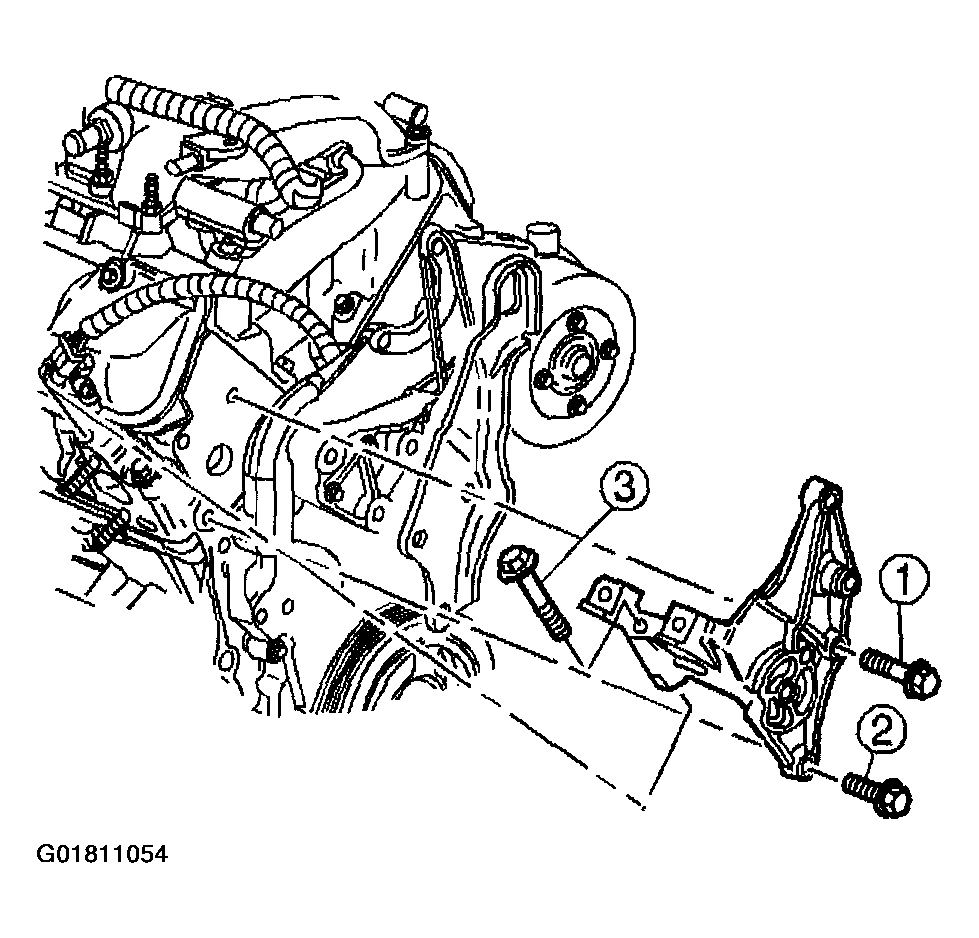

Fig 1: Removing Engine Lift Bracket
G01811054Courtesy of GENERAL MOTORS CORP.
