Engine Lift Bracket and Generator Bracket Installation

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front engine lift hook.
  2. Install the generator bracket.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the generator bracket bolts.

    Tighten

    Tighten the generator bracket bolts in sequence (1, 2, 3) to 50 N.m (37 lb ft).

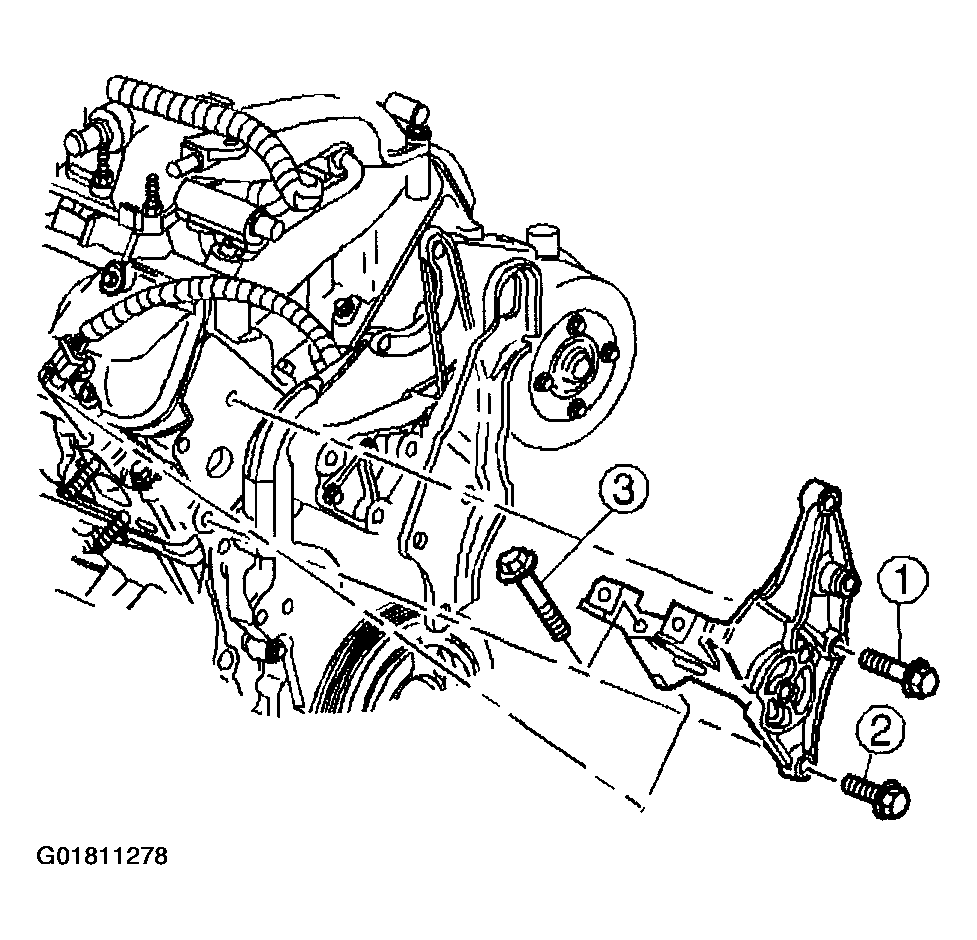

    4. Fig 1: Installing Engine Lift Bracket
    G01811278Courtesy of GENERAL MOTORS CORP.
