Engine Lift Bracket Installation - Rear

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear engine lift bracket.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the rear engine lift bracket bolts.

    Tighten

    Tighten the rear engine lift bracket bolts to 70 N.m (52 lb ft).

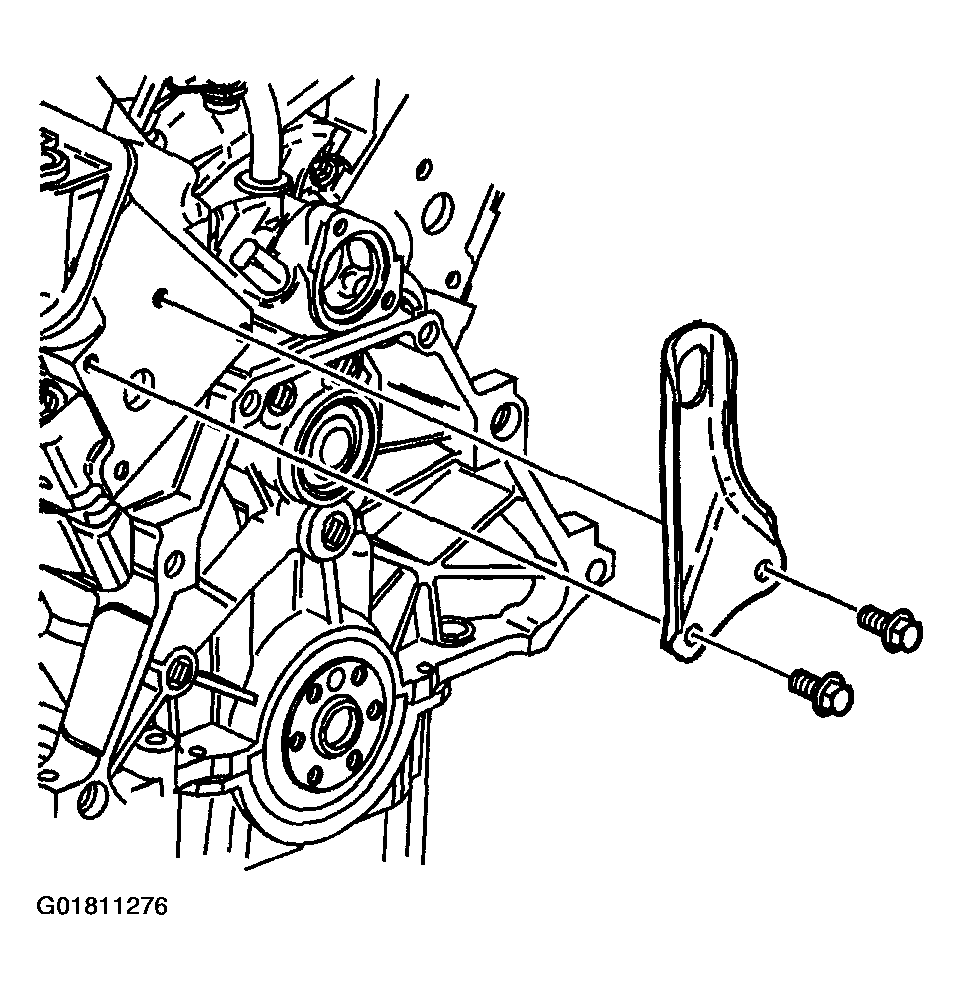

    3. Fig 1: Installing Rear Engine Lift Bracket
    G01811276Courtesy of GENERAL MOTORS CORP.
