Engine Front Cover Removal

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft position sensor wiring bracket bolt.
  2. Remove the crankshaft position sensor wiring bracket.

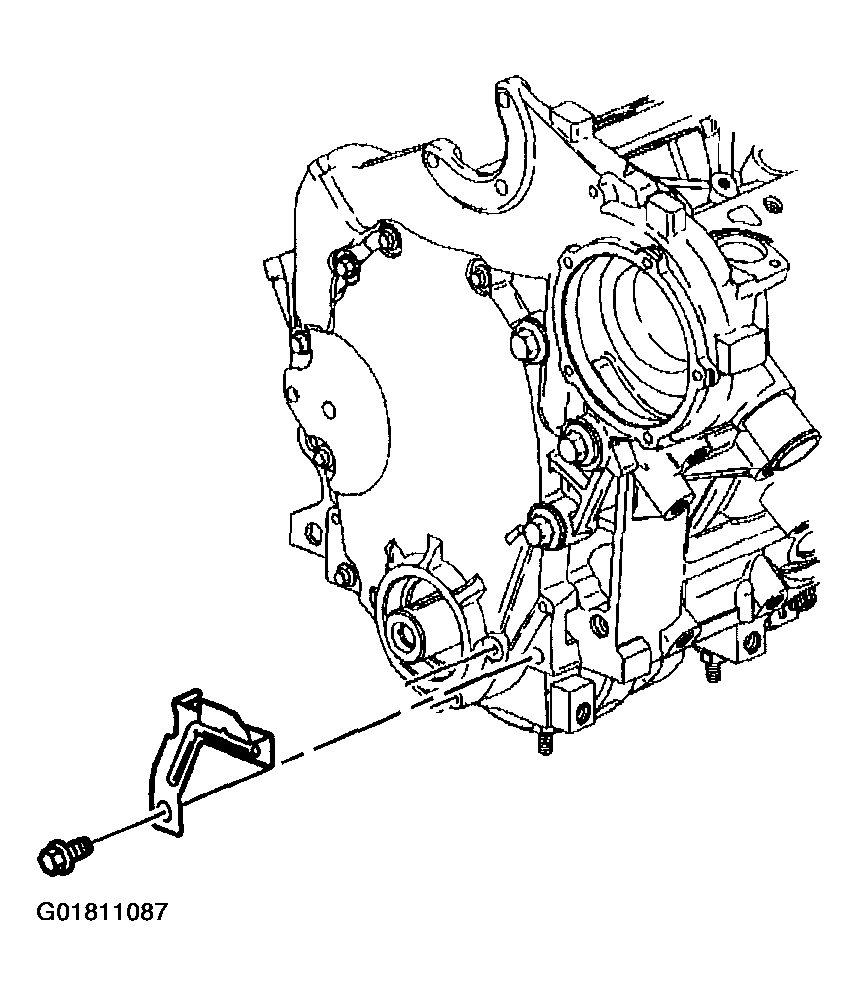

    Fig 1: Removing Crankshaft Position Sensor Wiring Bracket
    G01811087Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine front cover bolts (1, 2, 3).
  4. Remove the engine front cover.
  5. Remove the engine front cover gasket.

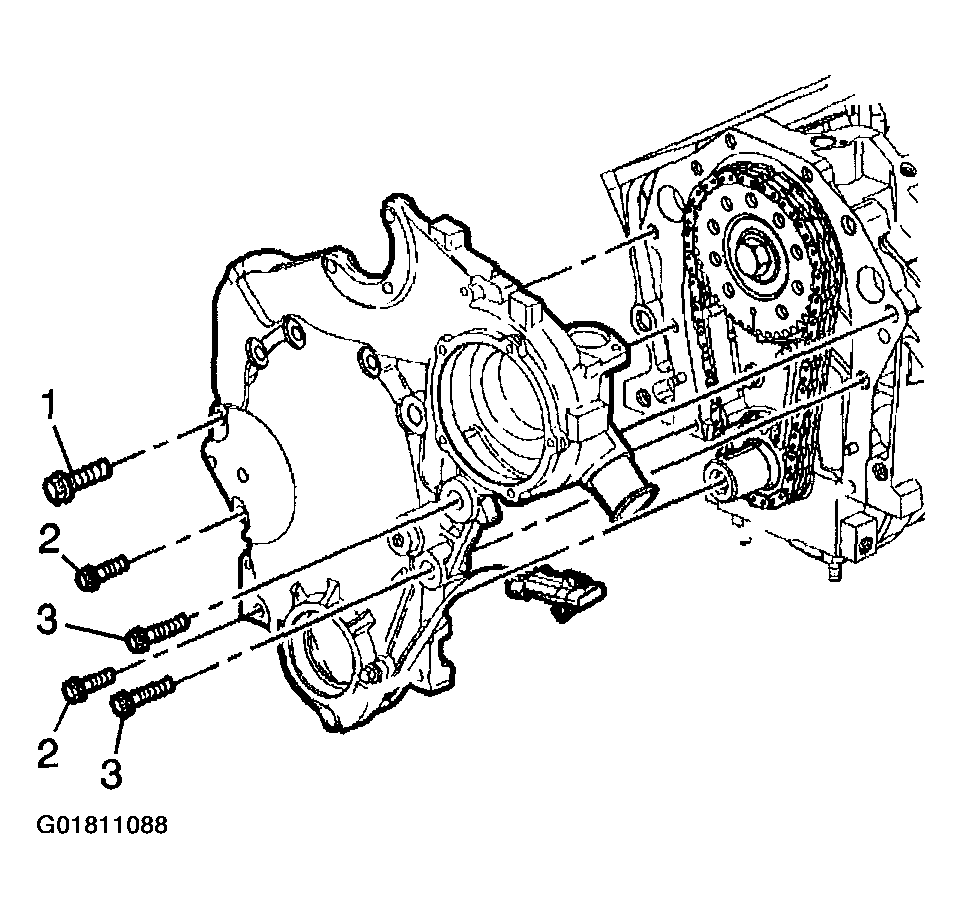

Fig 2: Removing Engine Front Cover & Gasket
G01811088Courtesy of GENERAL MOTORS CORP.
