Engine Front Cover Installation

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine front cover gasket.
Apply sealer GM P/N United States 12346004, GM P/N Canada 10953480 or the equivalent to both sides of the lower tabs of the engine front cover gasket.

Fig 1: Applying Sealer To Engine Front Cover Gasket
Courtesy of GENERAL MOTORS CORP.
Install the engine front cover.
CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
Install the engine front cover bolts (3).
Tighten

Tighten the bolts (3) to 55 N.m (41 lb ft).
Install the engine front cover bolt (1).
Tighten

Tighten the bolt (1) to 55 N.m (41 lb ft).
Install the engine front cover bolts (2).
Tighten

Tighten the bolts (2) to 27 N.m (20 lb ft).

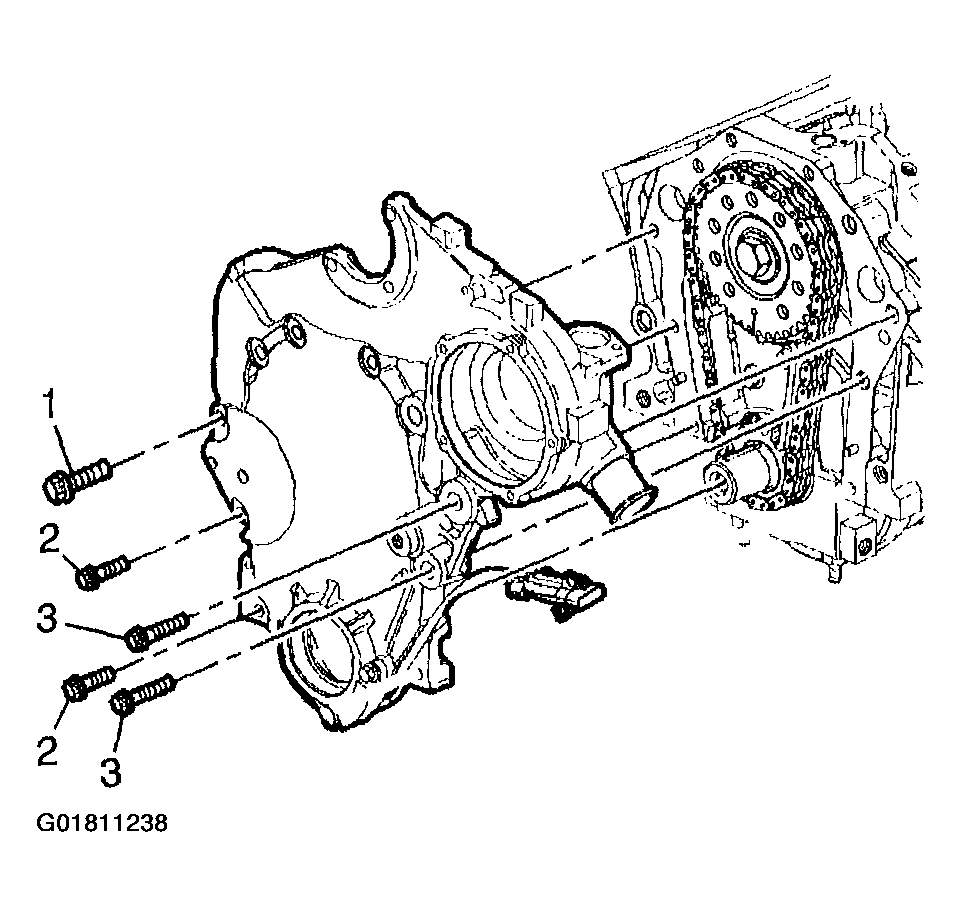

Fig 2: Installing Engine Front Cover
Courtesy of GENERAL MOTORS CORP.
Install the crankshaft position sensor wiring bracket.
Install the crankshaft position sensor wiring bracket bolt.
Tighten

Tighten the crankshaft position sensor wiring bracket bolt to 40 N.m (30 lb ft).

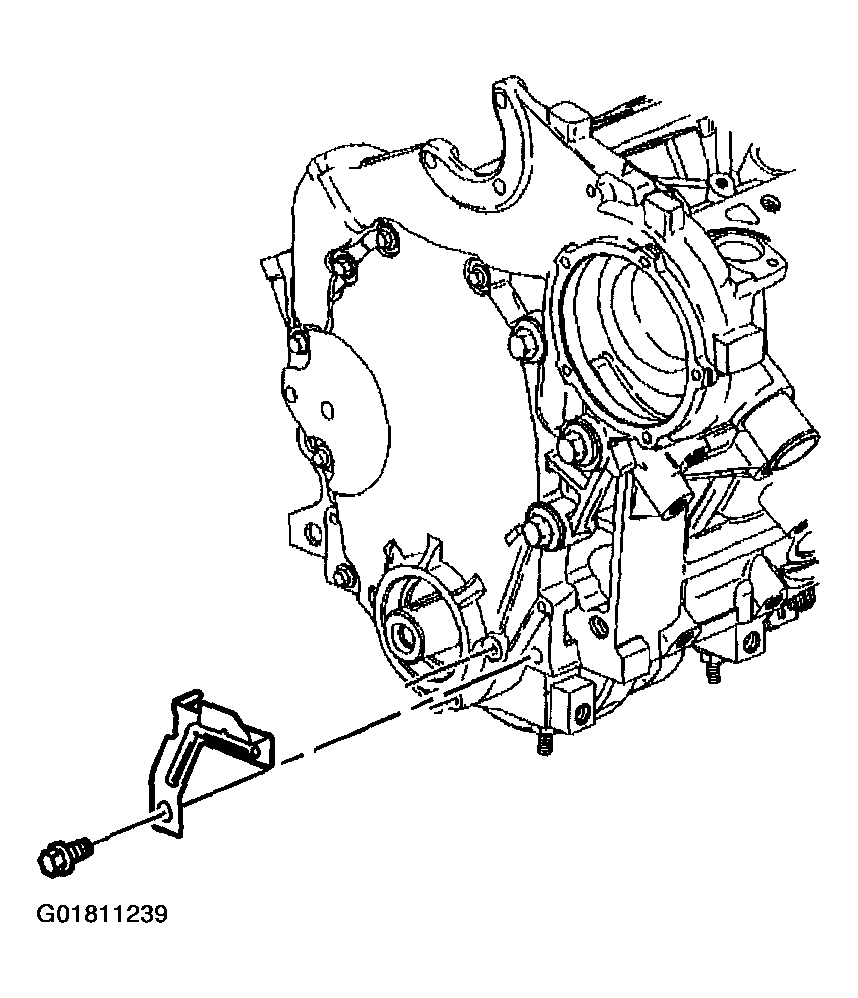

Fig 3: Installing Crankshaft Position Sensor Wiring Bracket

Courtesy of GENERAL MOTORS CORP.
