Engine Flywheel Installation

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flywheel.
  2. Install the flywheel retainer.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the flywheel bolts.

    Tighten

    Tighten the flywheel bolts to 71 N.m (52 lb ft).

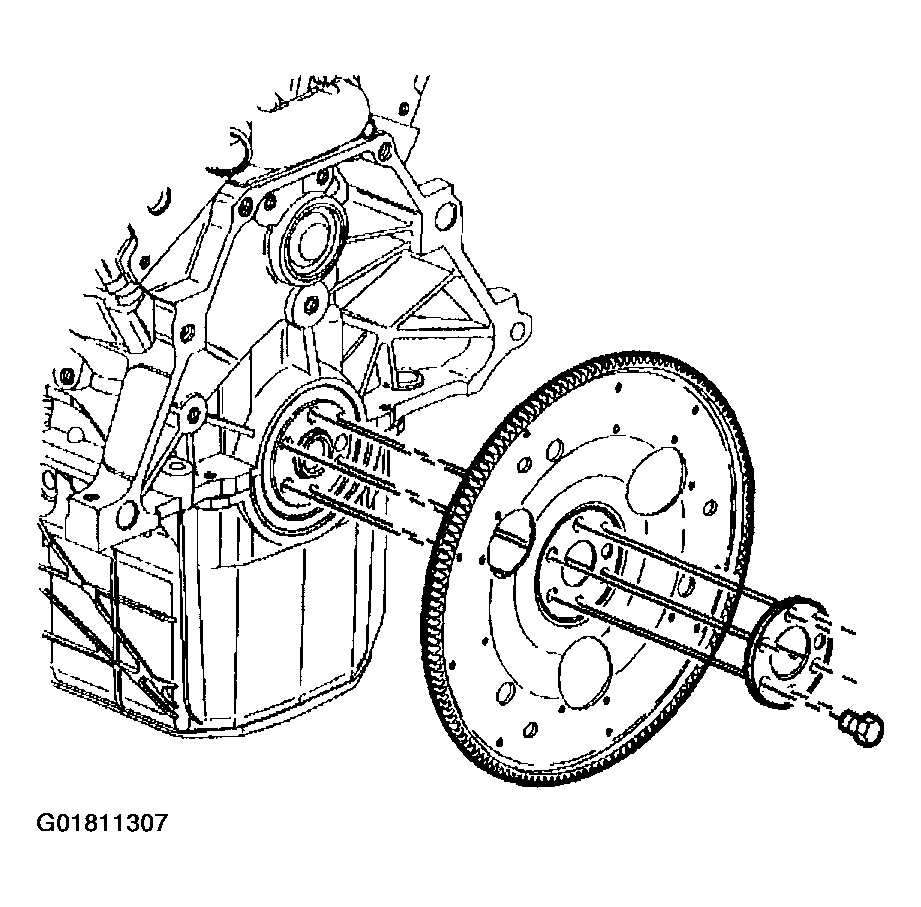

    Fig 1: Installing Engine Flywheel
    G01811307Courtesy of GENERAL MOTORS CORP.
