Engine Block Disassemble

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft rear bearing hole plug.

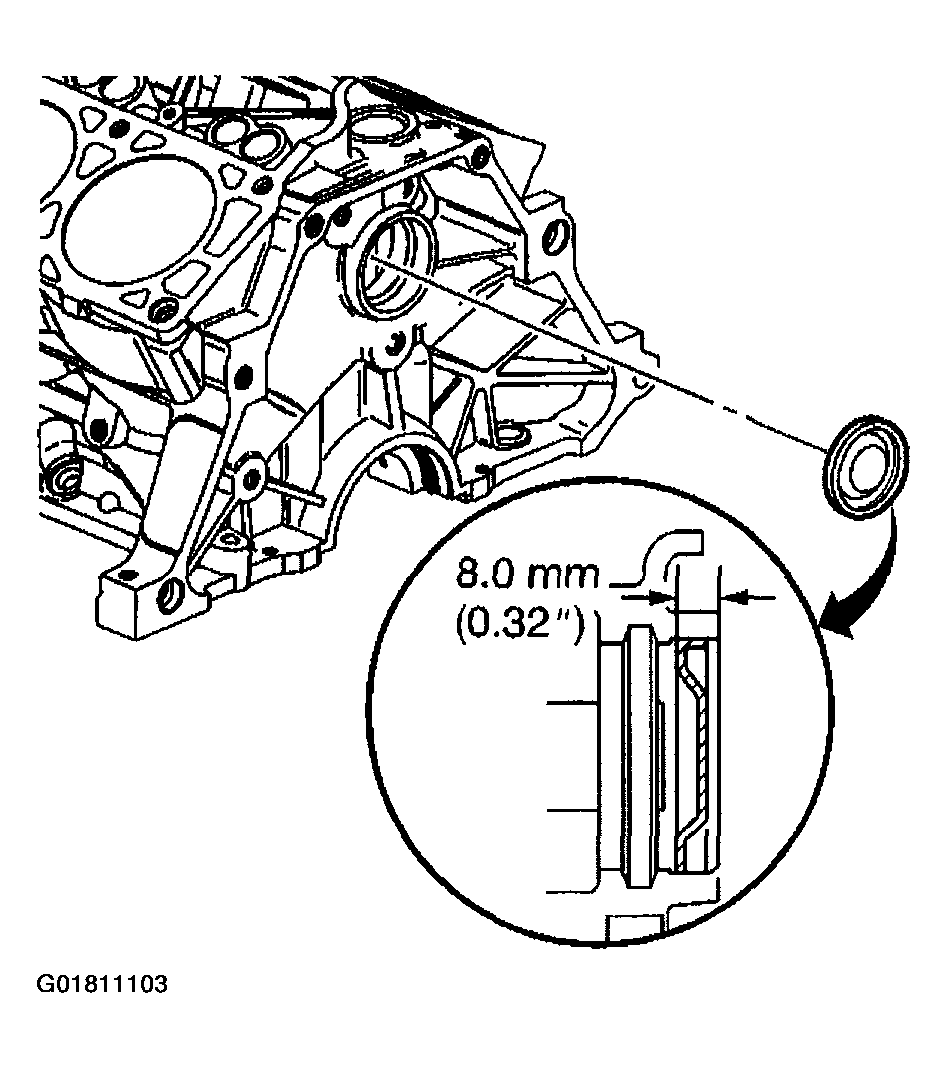

    Fig 1: Removing Camshaft Rear Bearing Hole Plug
    G01811103Courtesy of GENERAL MOTORS CORP.
  2. Remove the rear oil gallery plugs (1, 2, 3).

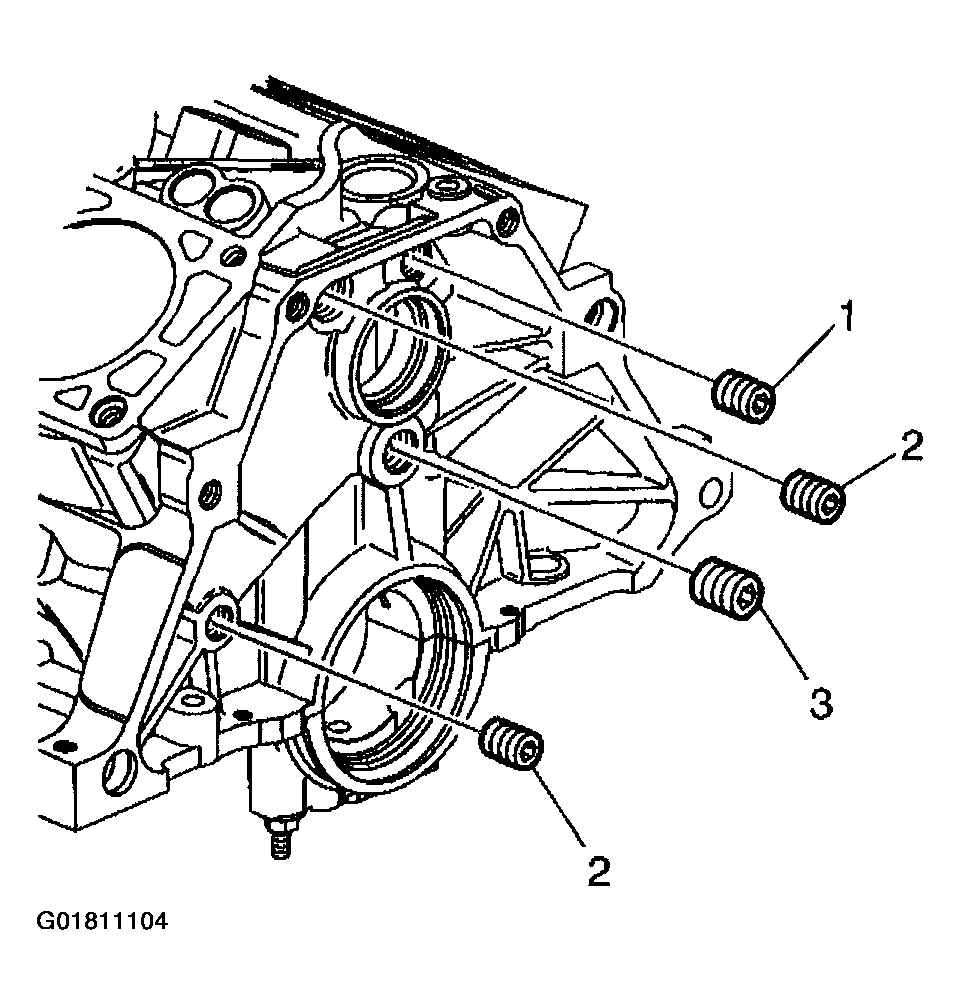

    Fig 2: Removing Rear Oil Gallery Plugs
    G01811104Courtesy of GENERAL MOTORS CORP.
  3. Remove the front oil gallery plugs (1, 2).
  4. Remove all of the remaining engine block plugs.

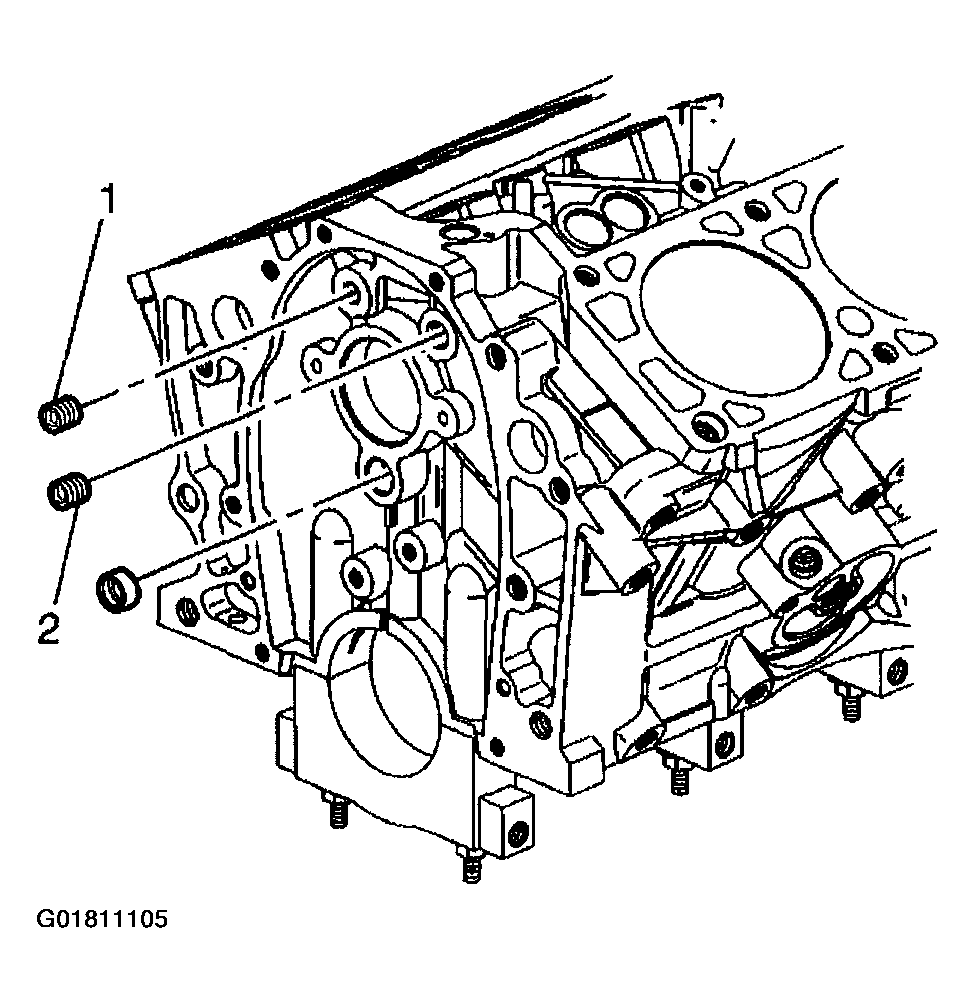

    Fig 3: Removing Front Oil Gallery Plugs
    G01811105Courtesy of GENERAL MOTORS CORP.
  5. Remove the knock sensor.

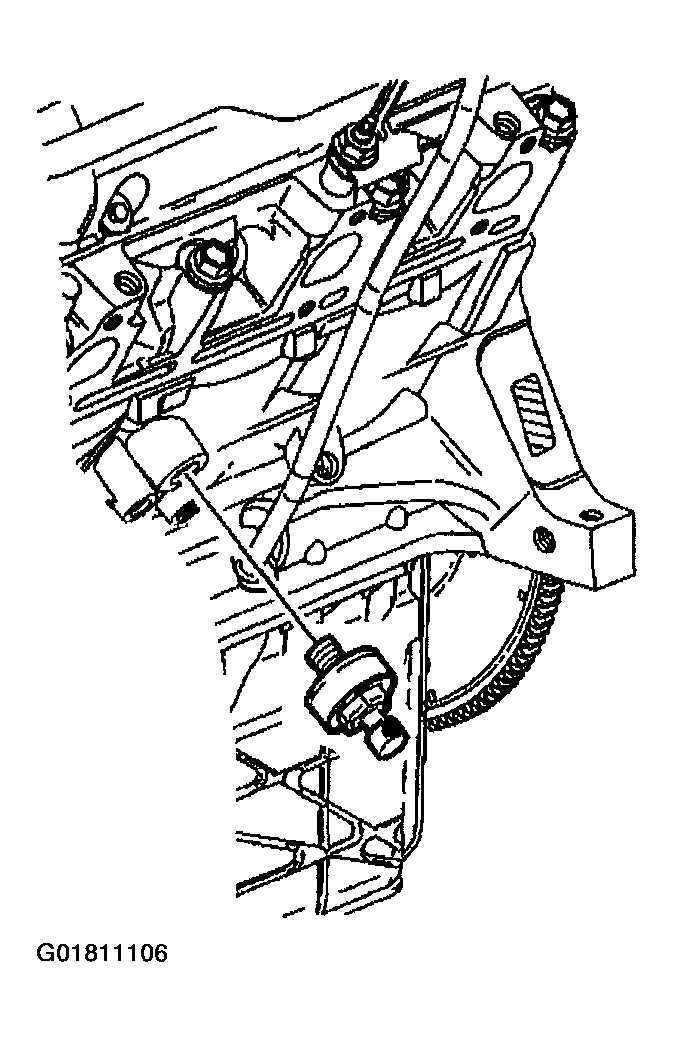

    Fig 4: Removing Knock Sensor
    G01811106Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine oil pressure switch.

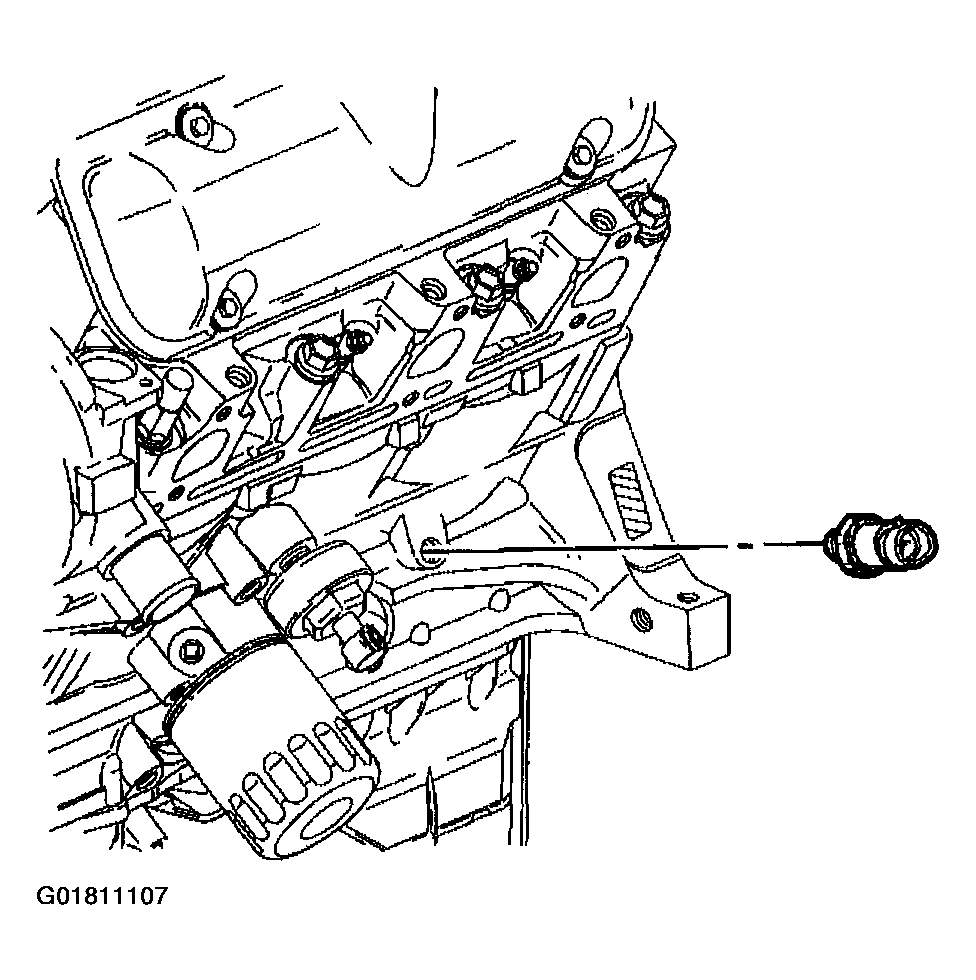

Fig 5: Removing Engine Oil Pressure Switch
G01811107Courtesy of GENERAL MOTORS CORP.
