Drive Belt Tensioner Installation

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt tensioner.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the drive belt tensioner bolt.

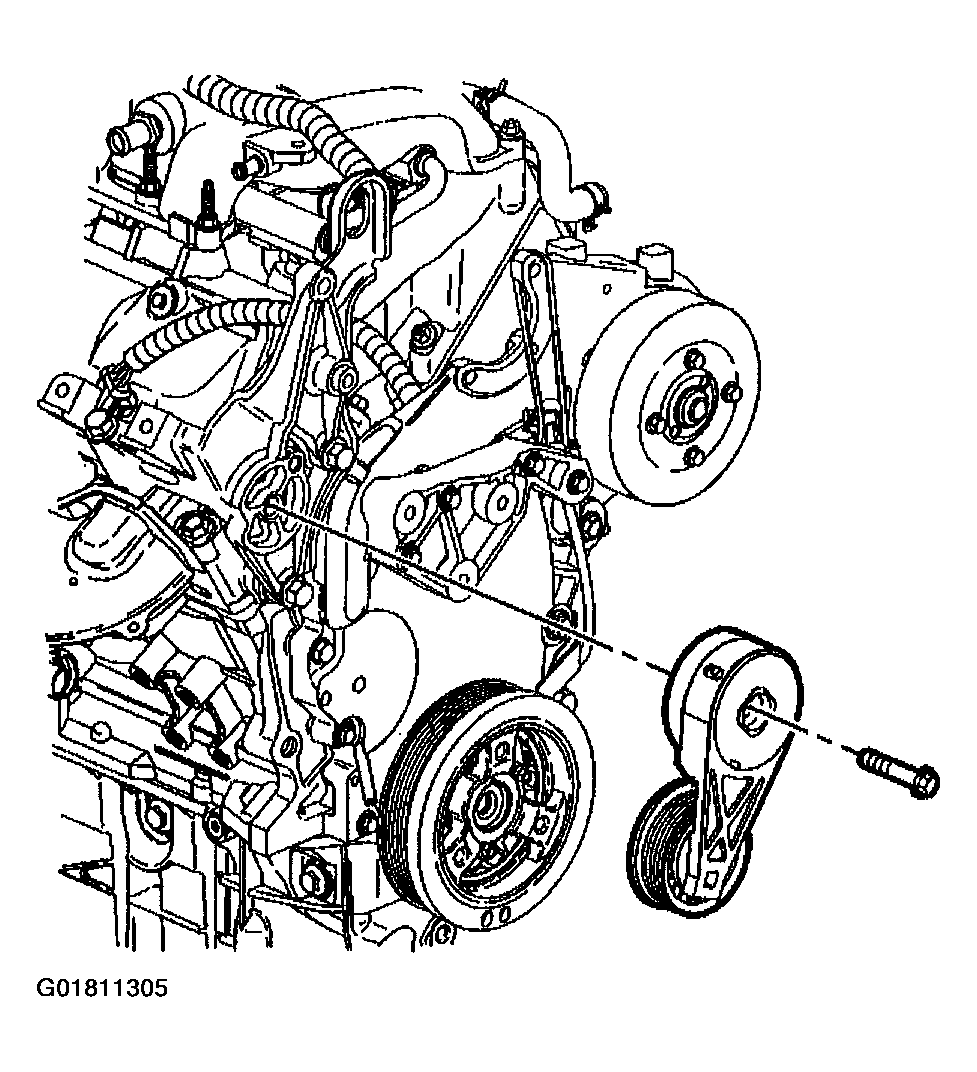

    Fig 1: Installing Drive Belt Tensioner & Bolt
    G01811305Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the drive belt tensioner bolt to 50 N.m (37 lb ft).
