Cylinder Head Removal - Left

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Remove the spark plugs.
Remove and discard the cylinder head bolts.
Remove the cylinder head.

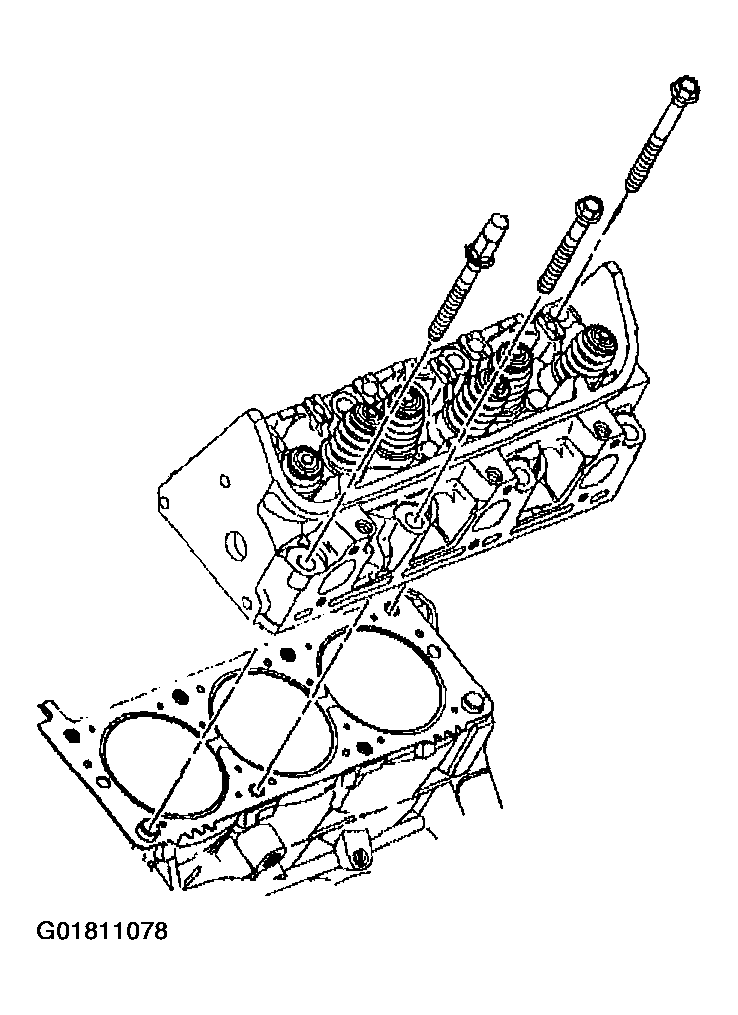

Fig 1: Cylinder Head
Courtesy of GENERAL MOTORS CORP.
Remove the cylinder head gasket.
Remove the dowel pins - cylinder head locator, if required.

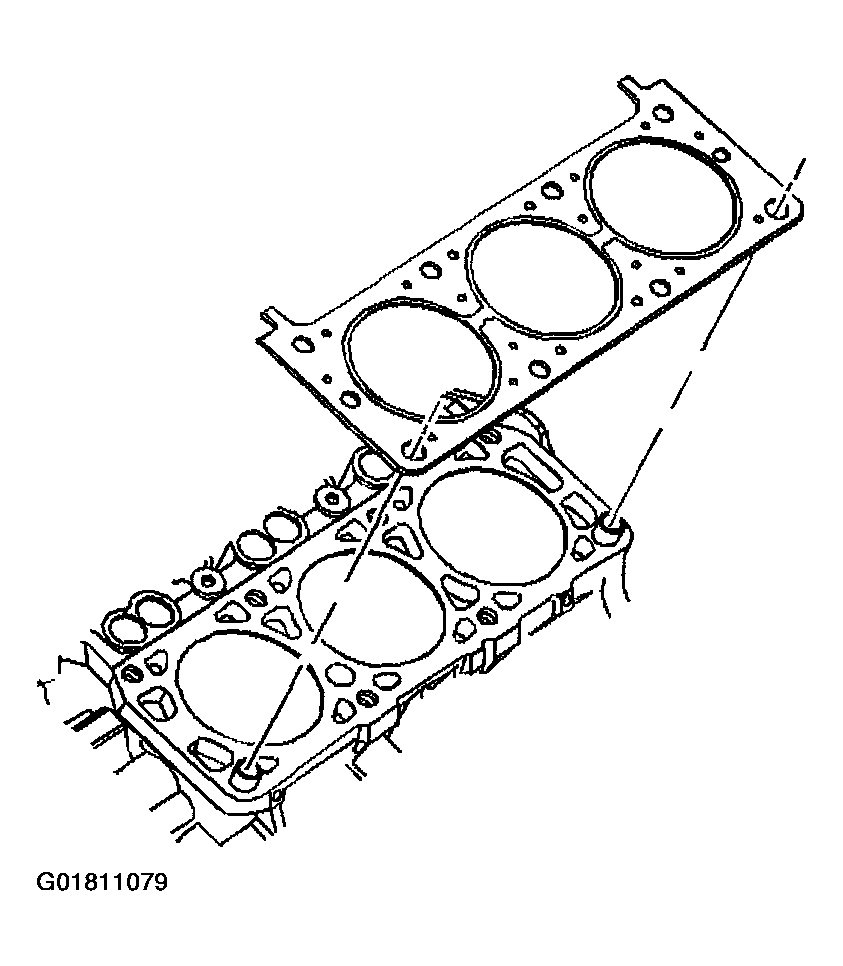

Fig 2: Cylinder Head Gasket

Courtesy of GENERAL MOTORS CORP.
