Cylinder Head Installation - Right

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 36660-A Torque Angle Meter

Install the dowel pins (cylinder head locator) (if necessary).
Inspect the dowel pins (cylinder head locator) for proper installation.
Install the cylinder head gasket.

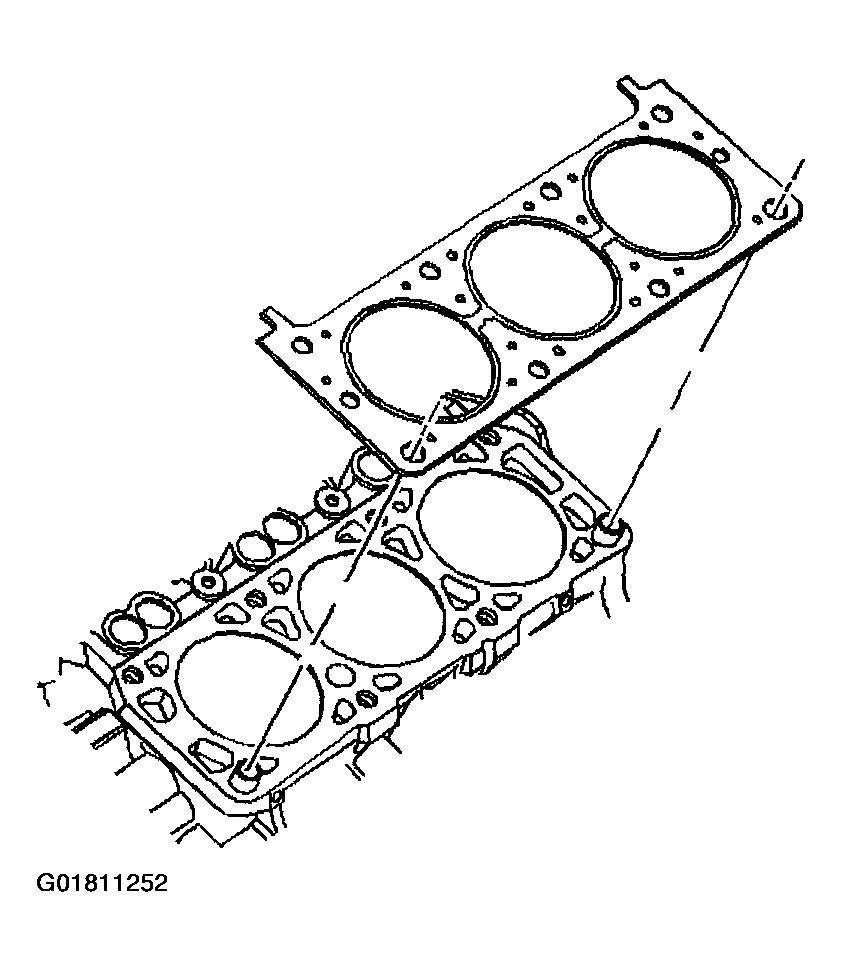

Fig 1: Cylinder Head Gasket
Courtesy of GENERAL MOTORS CORP.
Install the cylinder head.

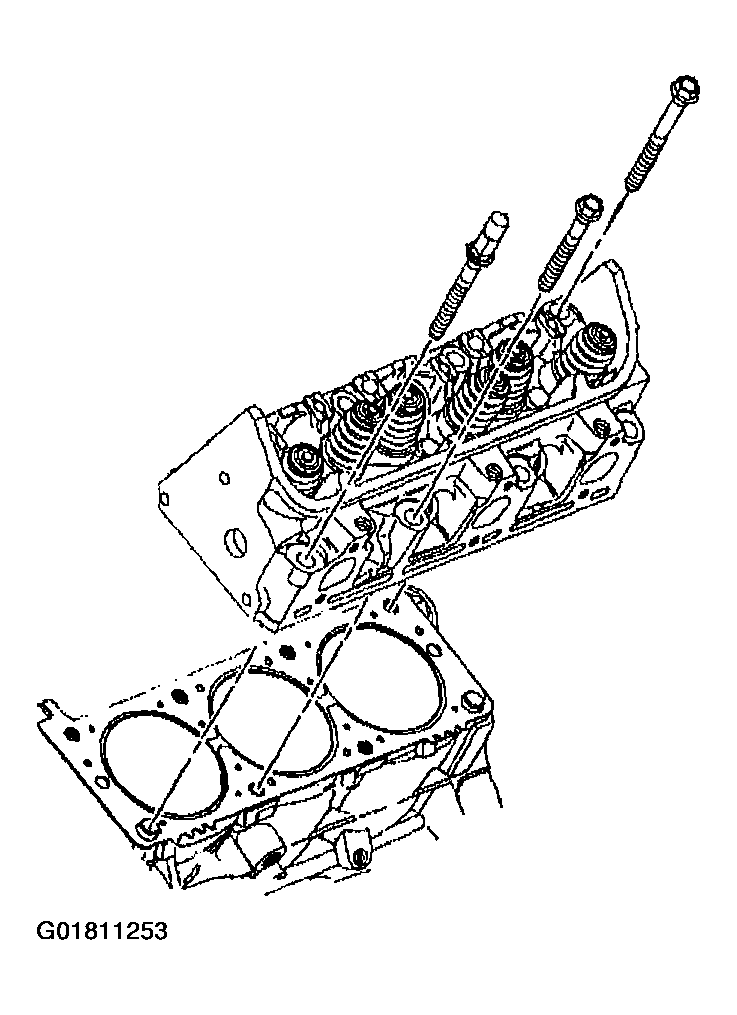

Fig 2: Cylinder Head
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
Install NEW cylinder head bolts.
Tighten

Tighten the cylinder head bolts in sequence to 60 N.m (44 lb ft). Turn the bolts an additional 95 degrees using the J 36660-A.

Fig 3: Cylinder Head Bolts Tightening Sequence

Courtesy of GENERAL MOTORS CORP.
