Crankshaft Front Oil Seal Installation

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 35468 Crankshaft Front Oil Seal Installer

  1. Align the J 35468 and the crankshaft front oil seal with the engine front cover and crankshaft.
  2. Install the crankshaft front oil seal using the J 35468 and a suitable tool.

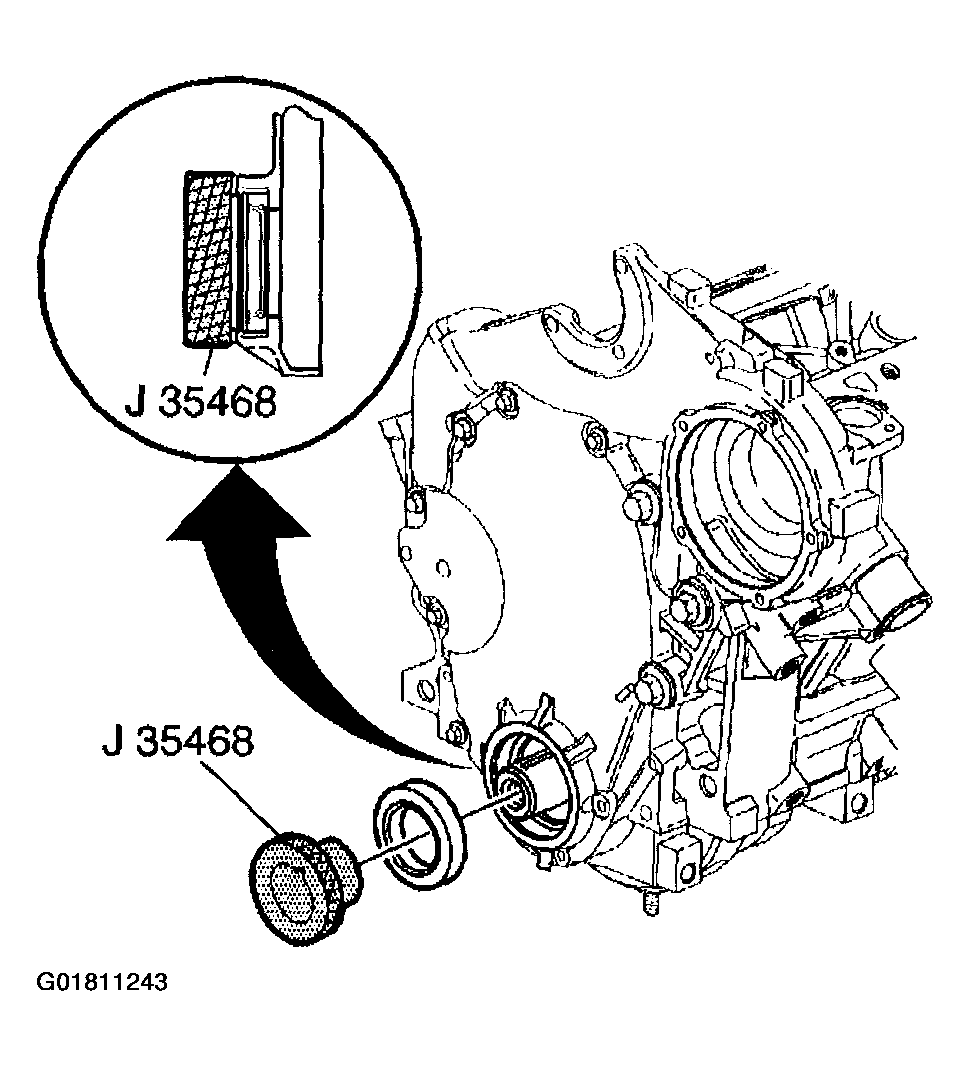

Fig 1: Identifying J 35468
G01811243Courtesy of GENERAL MOTORS CORP.
