Tools Required

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

J24420-C Crankshaft Balancer Puller

Remove the crankshaft balancer retaining bolt and washer.

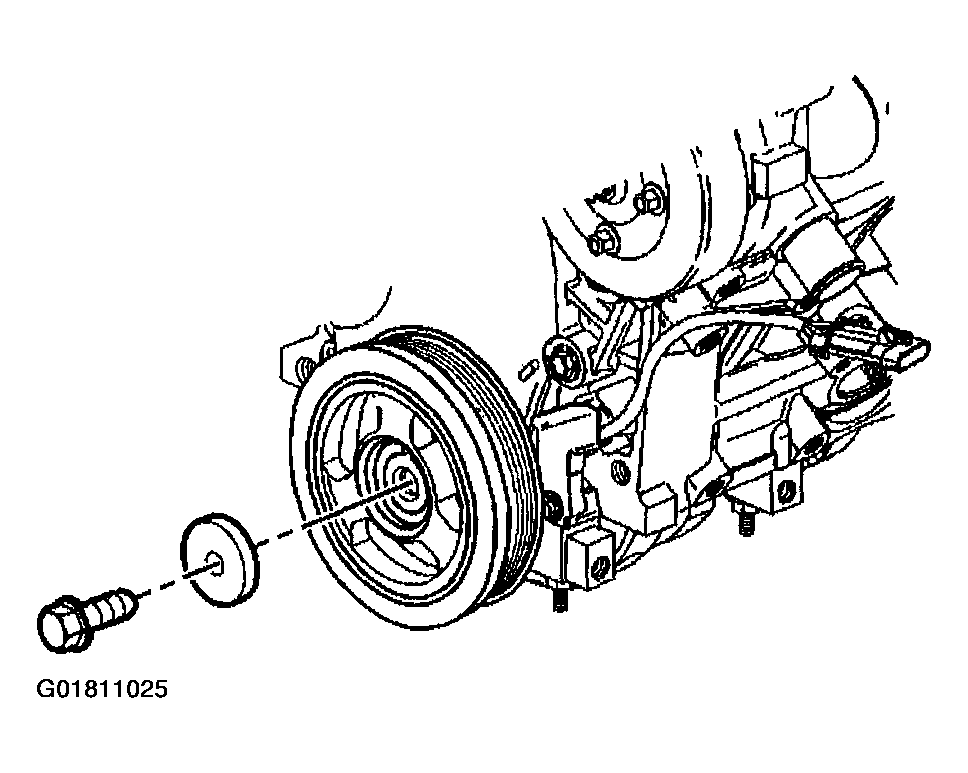

Fig 1: Removing Crankshaft Balancer Retaining Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the crankshaft balancer using the J24420-C .

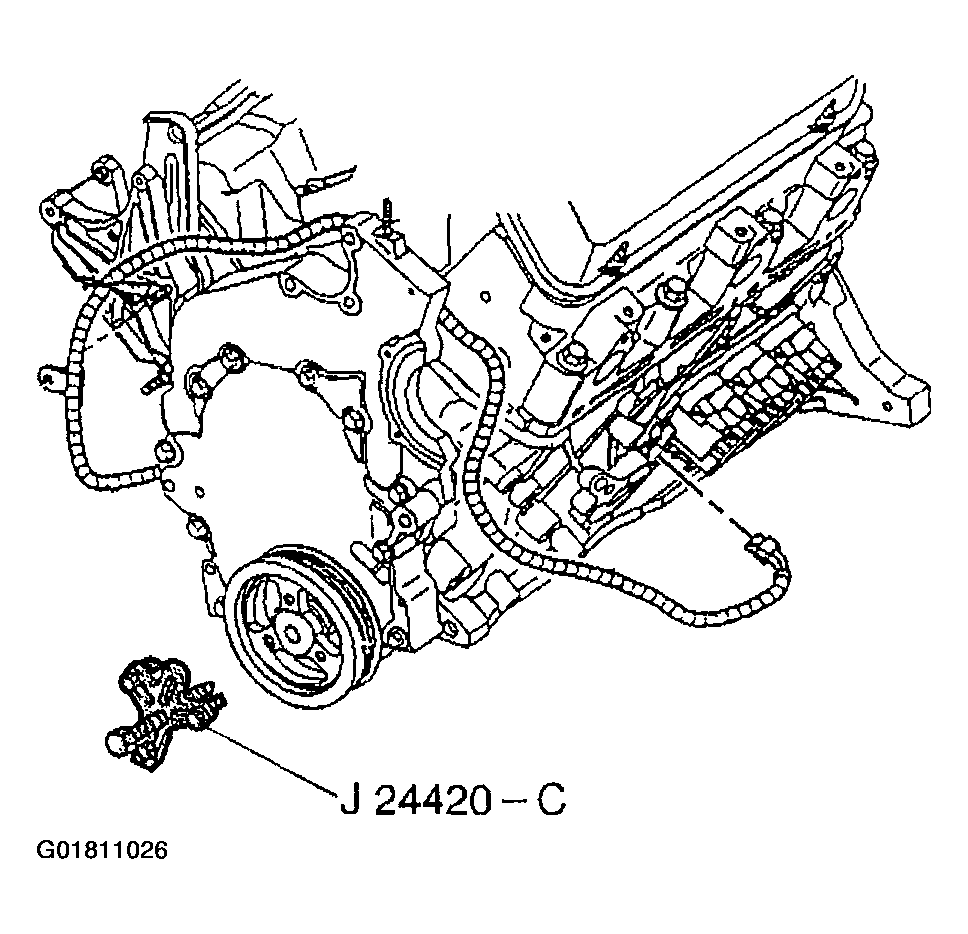

Fig 2: Removing Crankshaft Balancer

Courtesy of GENERAL MOTORS CORP.
