Air Injection Check Valve Removal

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

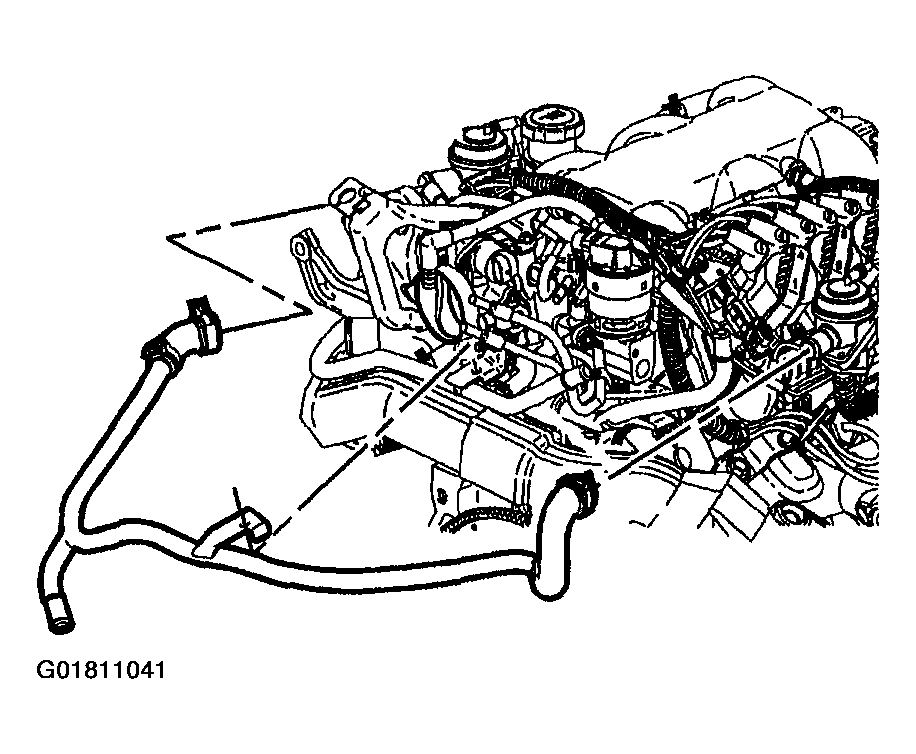

Remove air injection vacuum hose.

Fig 1: Removing Air Injection Vacuum Hose
Courtesy of GENERAL MOTORS CORP.

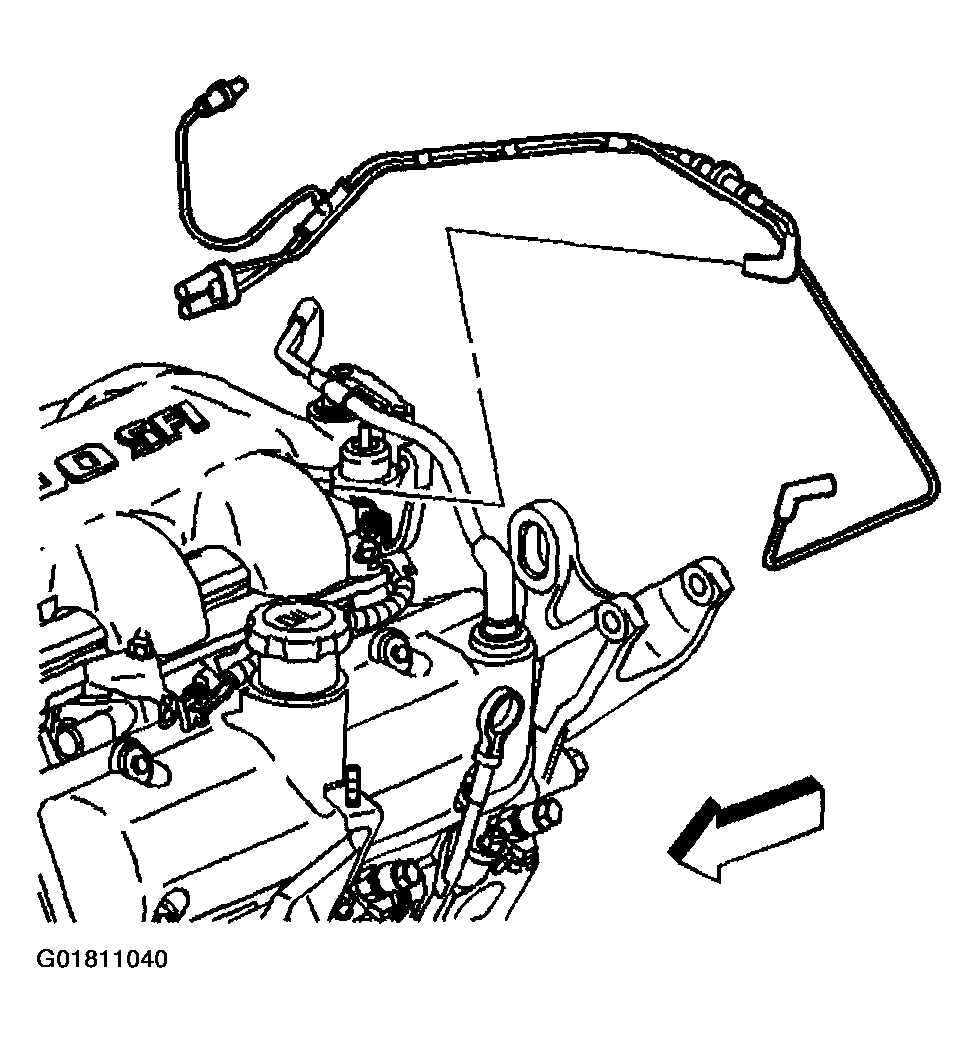

Remove air injection check valve pipe, clamps, and bolt.

Fig 2: Removing Air Injection Check Valve Pipe
Courtesy of GENERAL MOTORS CORP.
Remove air injection solenoid switch and bolt.

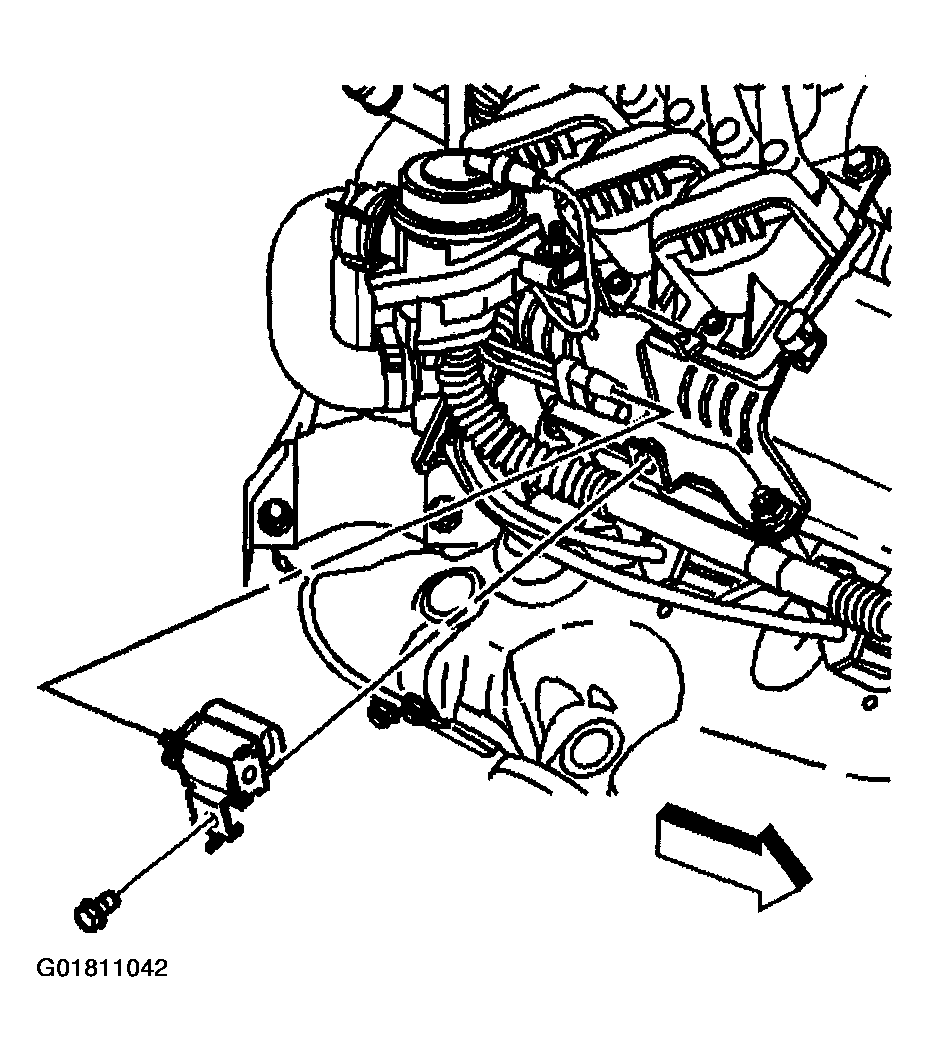

Fig 3: Removing Air Injection Solenoid Switch
Courtesy of GENERAL MOTORS CORP.

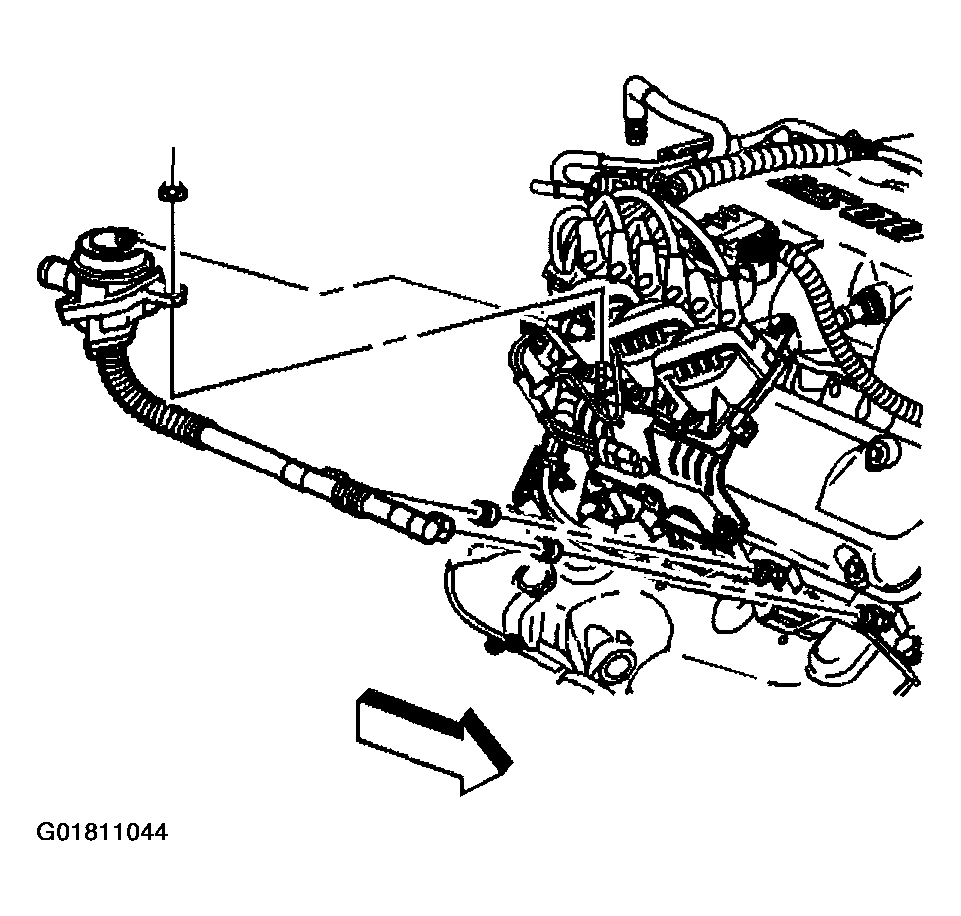

Remove air injection check valve front nuts.

Fig 4: Removing Air Injection Check Valve
Courtesy of GENERAL MOTORS CORP.

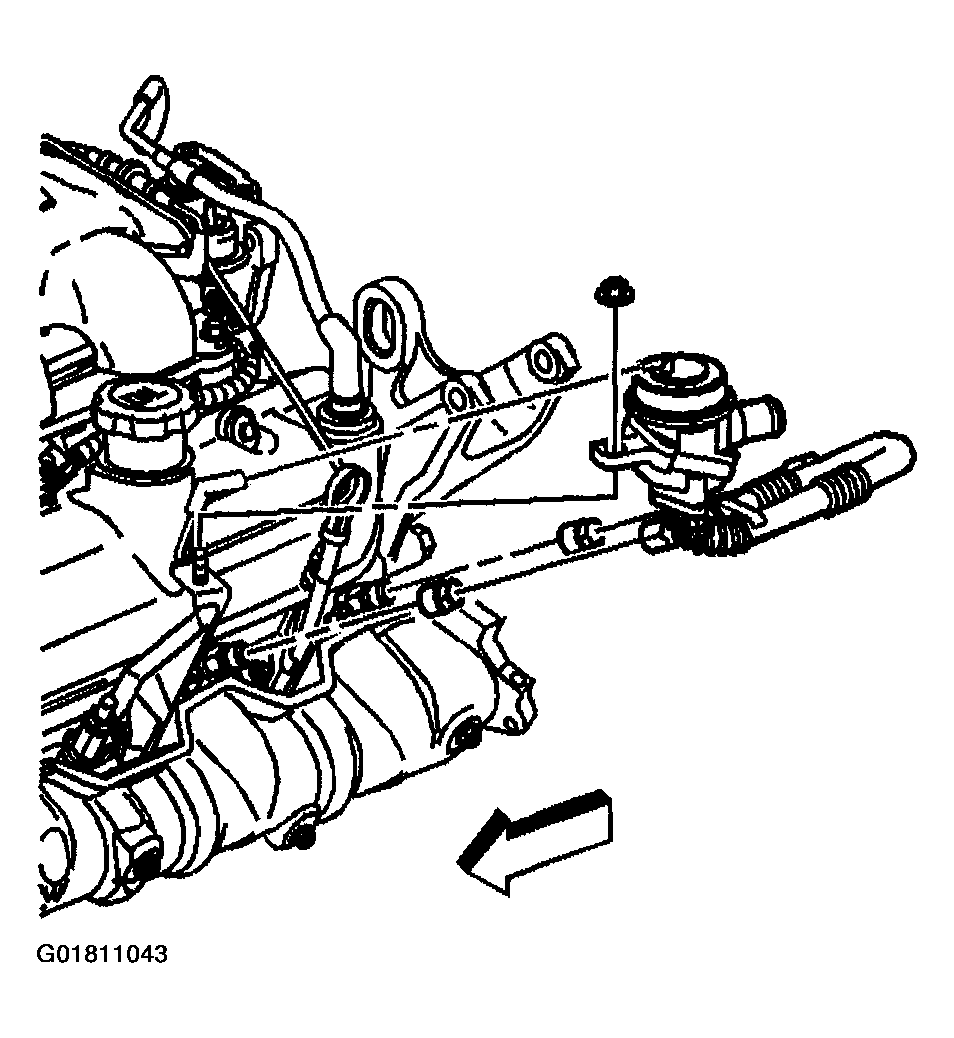

Remove air injection check valve rear nuts.

Fig 5: Removing Air Injection Check Valve Rear Nuts
Courtesy of GENERAL MOTORS CORP.

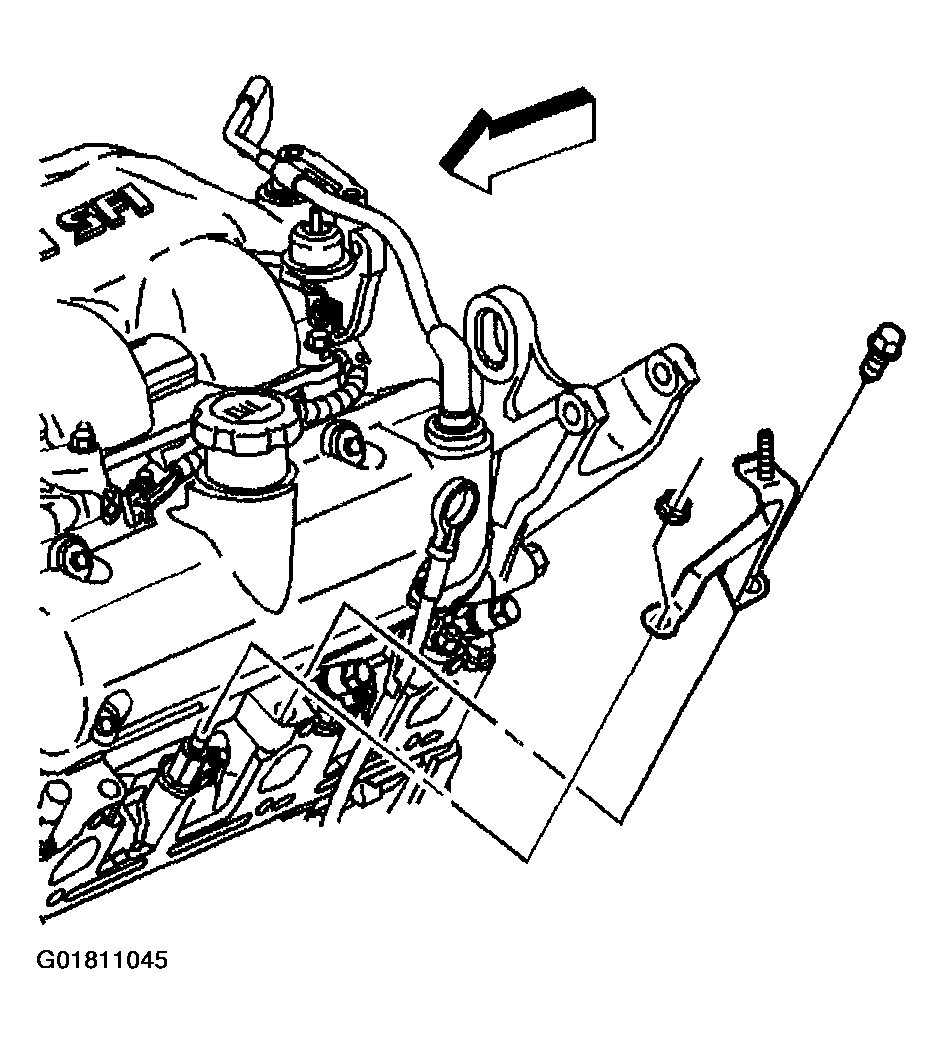

Remove air injection check valve front bracket and bolt.

Fig 6: Removing Air Injection Check Valve Front Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.

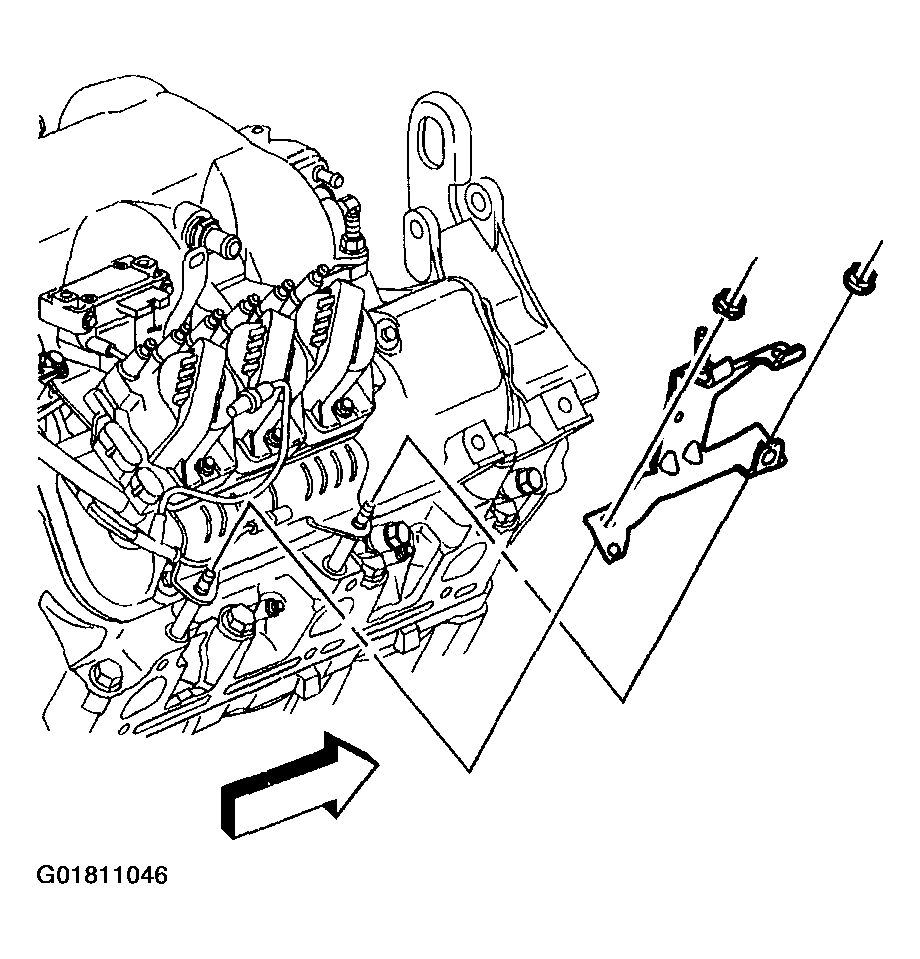

Remove air injection check valve rear bracket and nuts.

Fig 7: Removing Air Injection Check Valve Rear Bracket & Nuts
Courtesy of GENERAL MOTORS CORP.

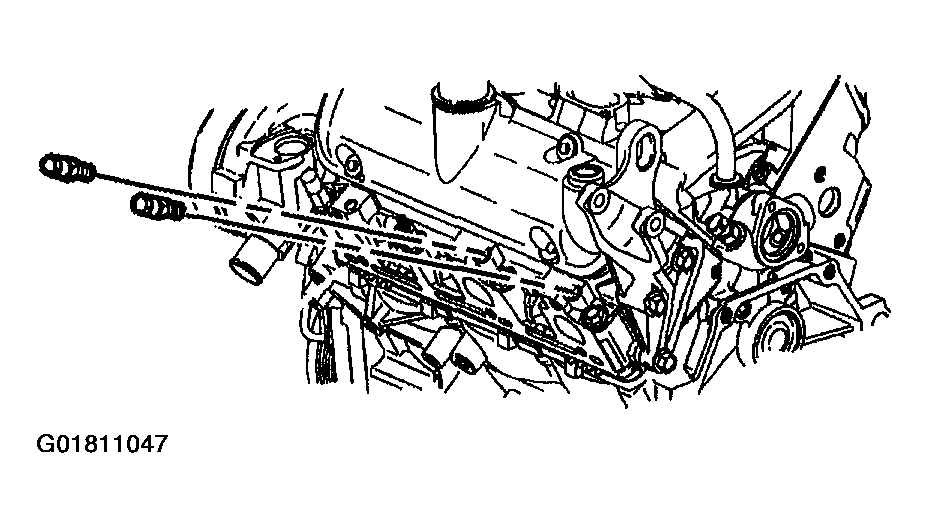

Remove air injection check valve pipe adapters, front.

Fig 8: Removing Air Injection Check Valve Pipe
Courtesy of GENERAL MOTORS CORP.

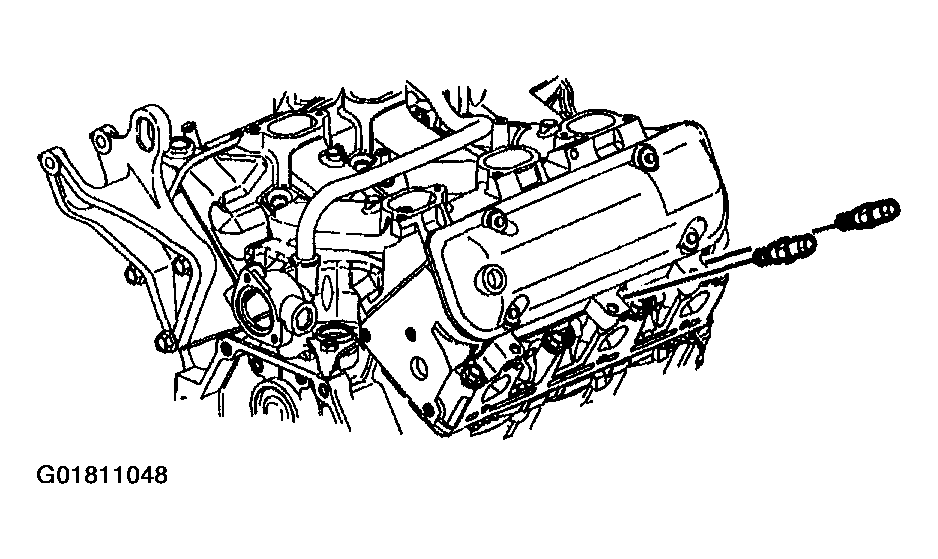

Remove air injection check valve pipe adapters, rear.

Fig 9: Removing Air Injection Check Valve Pipe Adapters

Courtesy of GENERAL MOTORS CORP.
