Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower intake manifold. Refer to Intake Manifold Replacement - Lower  .
  2. Remove the rocker arms and pushrods. Refer to Valve Rocker Arm and Push Rod Replacement  .

    Important:  Keep the valve lifters in order. You must install the lifters in the original position.

  3. Remove the valve lifter guide bolts.
  4. Remove the valve lifter guide.
  5. Remove the valve lifter.

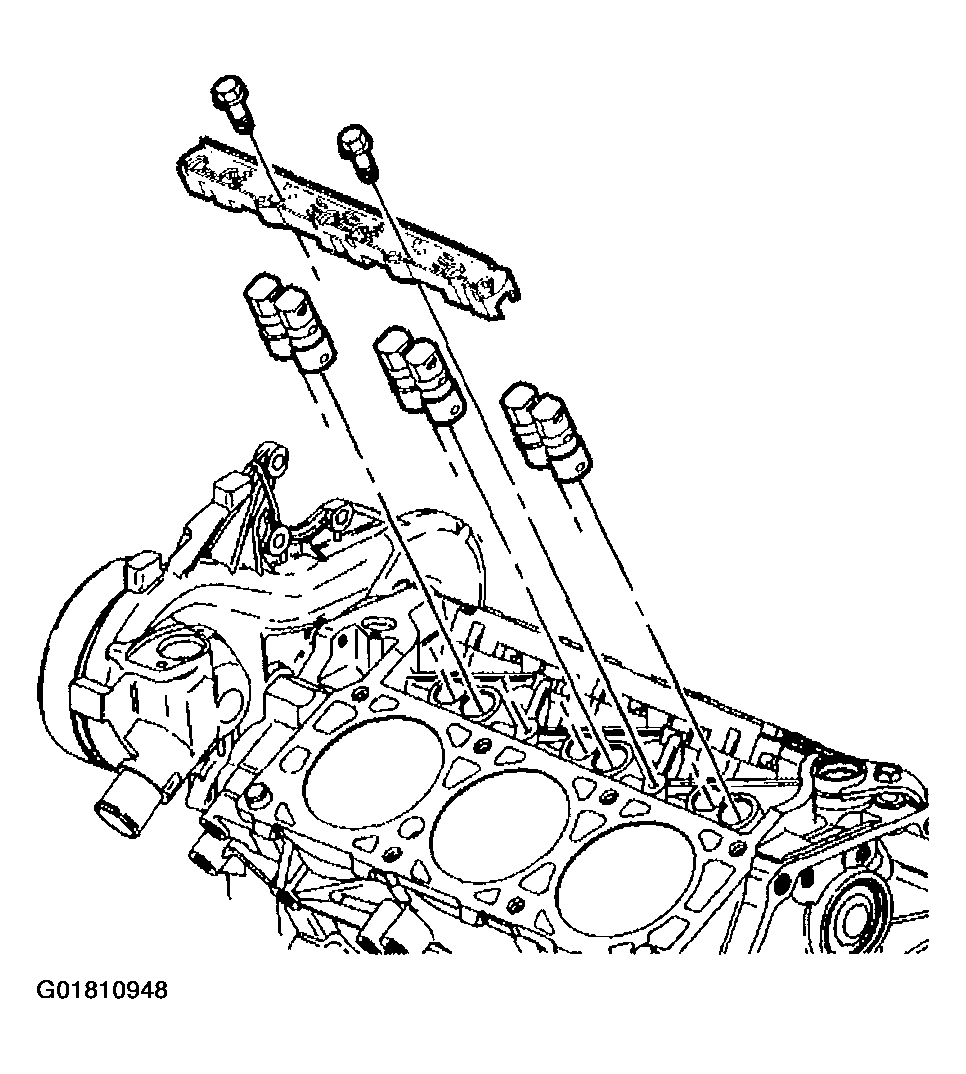

    Fig 1: Removing Valve Lifter
    G01810948Courtesy of GENERAL MOTORS CORP.
