Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil pump.
  2. Install the drive shaft extension.
  3. Engage the drive shaft extension into the drive gear.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the pump to the rear bearing cap bolt.

    Tighten

    Tighten the oil pump nut to 41 N.m (30 lb ft).

  5. Install the oil pan. Refer to Oil Pan Replacement  .

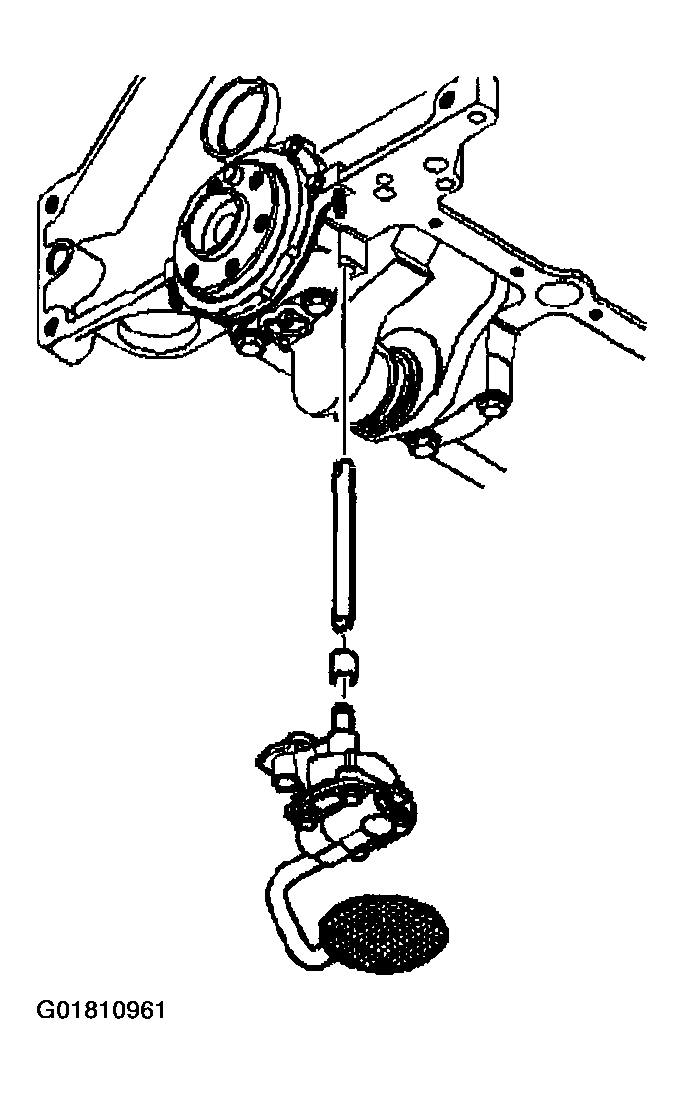

    Fig 1: Installing Oil Pump
    G01810961Courtesy of GENERAL MOTORS CORP.
