Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper intake manifold. Refer to Intake Manifold Replacement - Upper
  2. Remove the oil pump drive bolt and clamp.
  3. Remove the oil pump drive and seal.

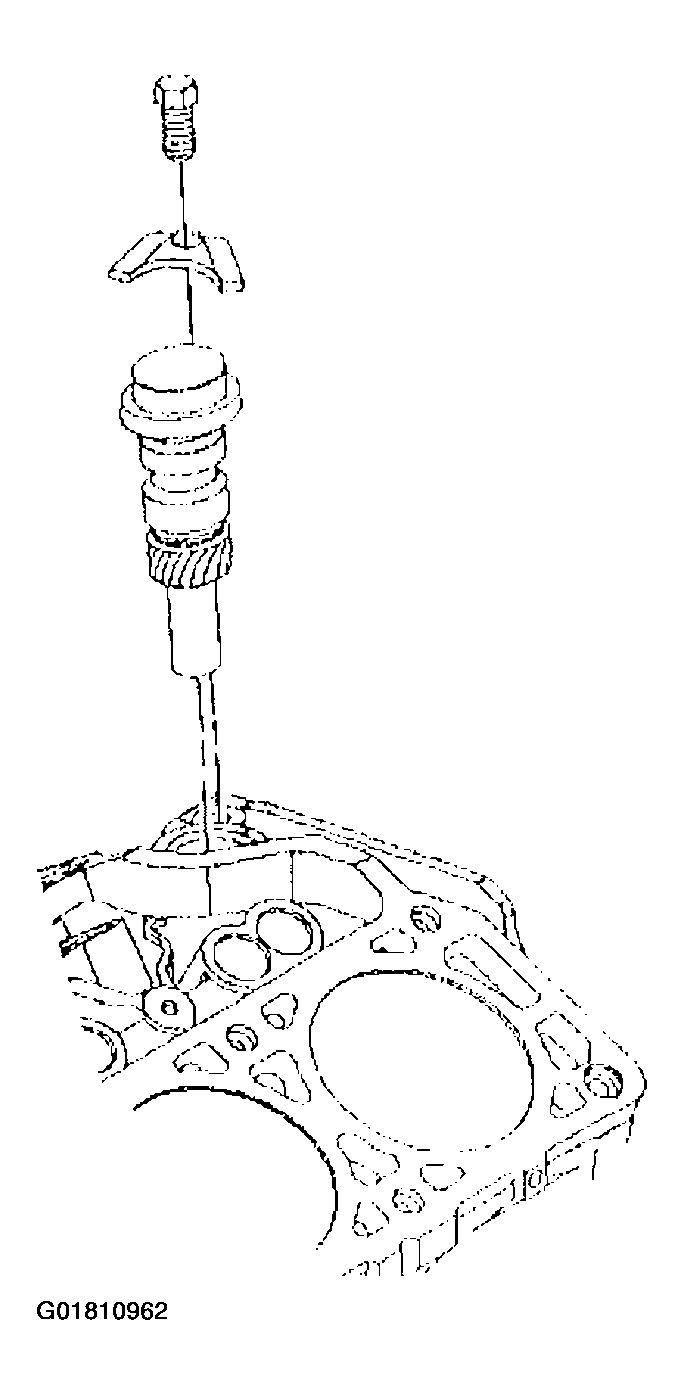

    Fig 1: Removing Oil Pump Drive
    G01810962Courtesy of GENERAL MOTORS CORP.
