Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil pump drive seal. Coat the seal or the bore in the engine block with engine oil.
  2. Install the oil pump drive. Coat the drive gear on the drive with prelube GM P/N 1052365 for a full 360 degrees.
  3. Install the oil pump drive clamp.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the oil pump drive bolt.

    Tighten

    Tighten the oil pump drive bolt to 36 N.m (27 lb ft).

  5. Install the upper intake manifold. Refer to Intake Manifold Replacement - Upper

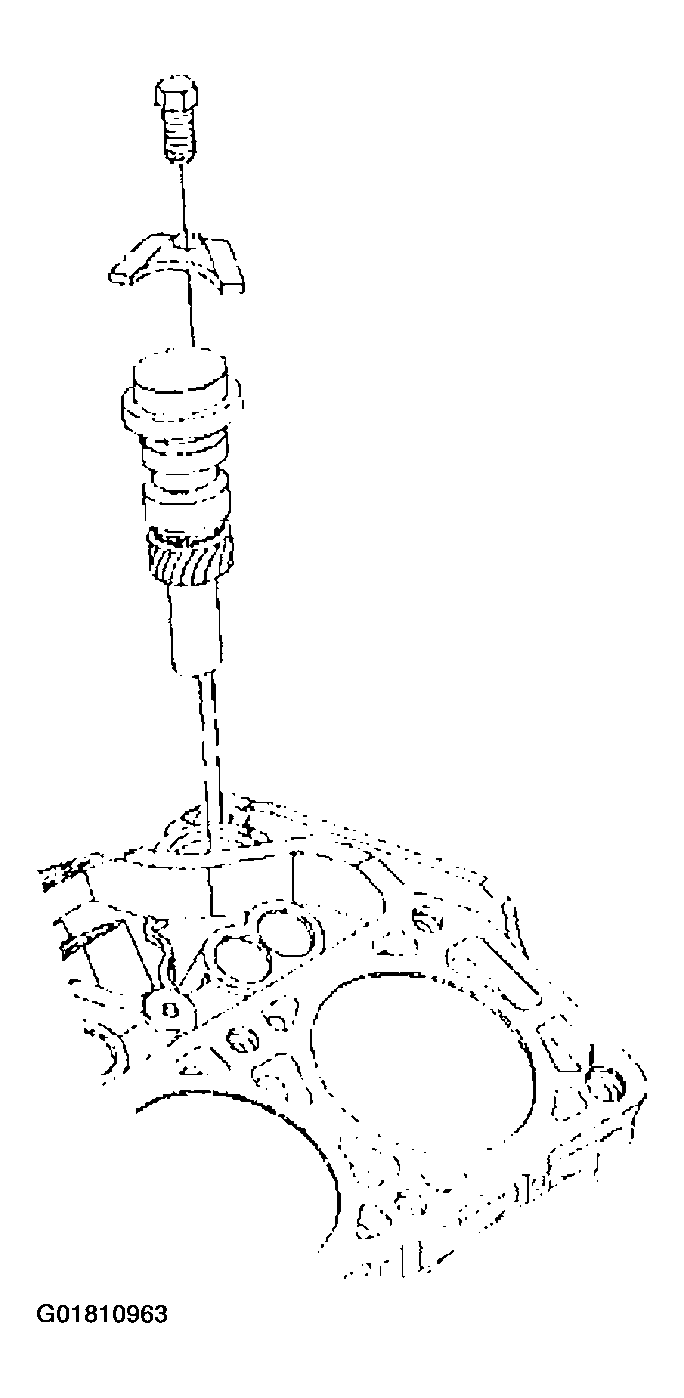

    Fig 1: Installing Oil Pump Drive
    G01810963Courtesy of GENERAL MOTORS CORP.
