Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil level indicator tube to the engine. Ensure that the tube assembly is fully seated in the engine.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the oil level indicator tube bolt.

    Tighten

    Tighten the oil level indicator tube bolt to 25 N.m (18 lb ft).

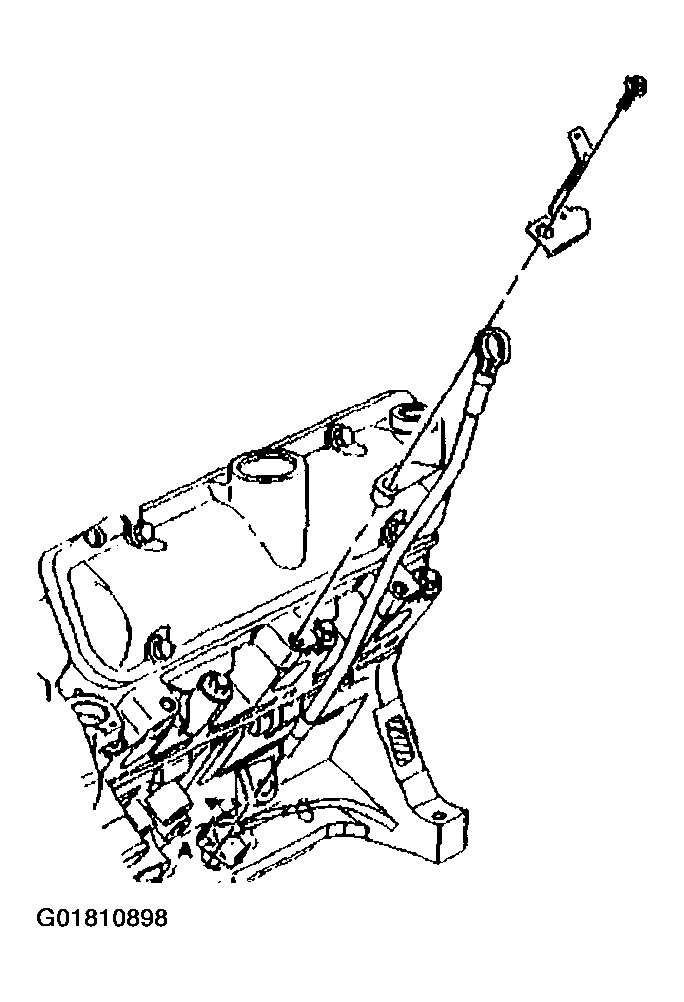

    Fig 1: Installing Oil Level Indicator & Tube
    G01810898Courtesy of GENERAL MOTORS CORP.
