Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Drain the oil from the oil pan.
  3. Disconnect the electrical connector from the oil level sensor.
  4. Remove the retainer bolt from the oil pan.
  5. Remove the oil level sensor from the oil pan.

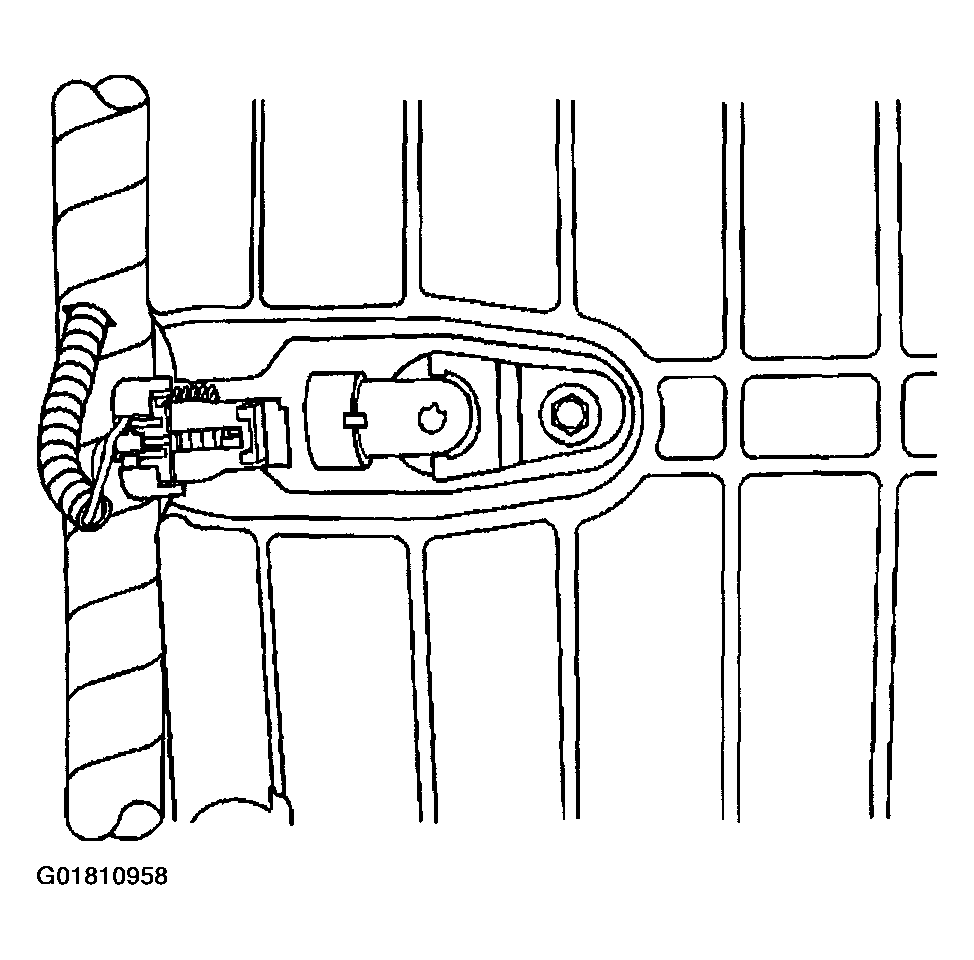

    Fig 1: Removing Engine Oil Level Sensor
    G01810958Courtesy of GENERAL MOTORS CORP.
