Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the engine by the oil pan.
  2. Remove and position cruise control module aside.
  3. Remove the engine mount to engine mount bracket bolts.

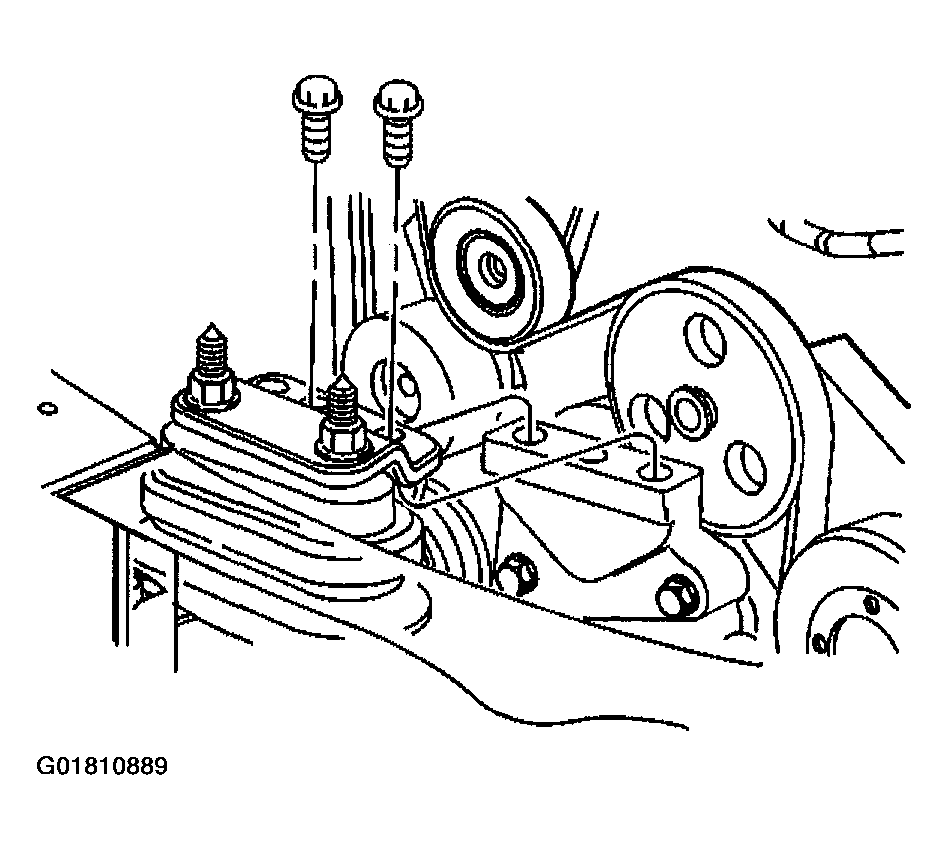

    Fig 1: Removing Engine Mount To Engine Mount Bracket Bolts
    G01810889Courtesy of GENERAL MOTORS CORP.
  4. Remove the engine mount to body nuts.
  5. Remove the engine mount.

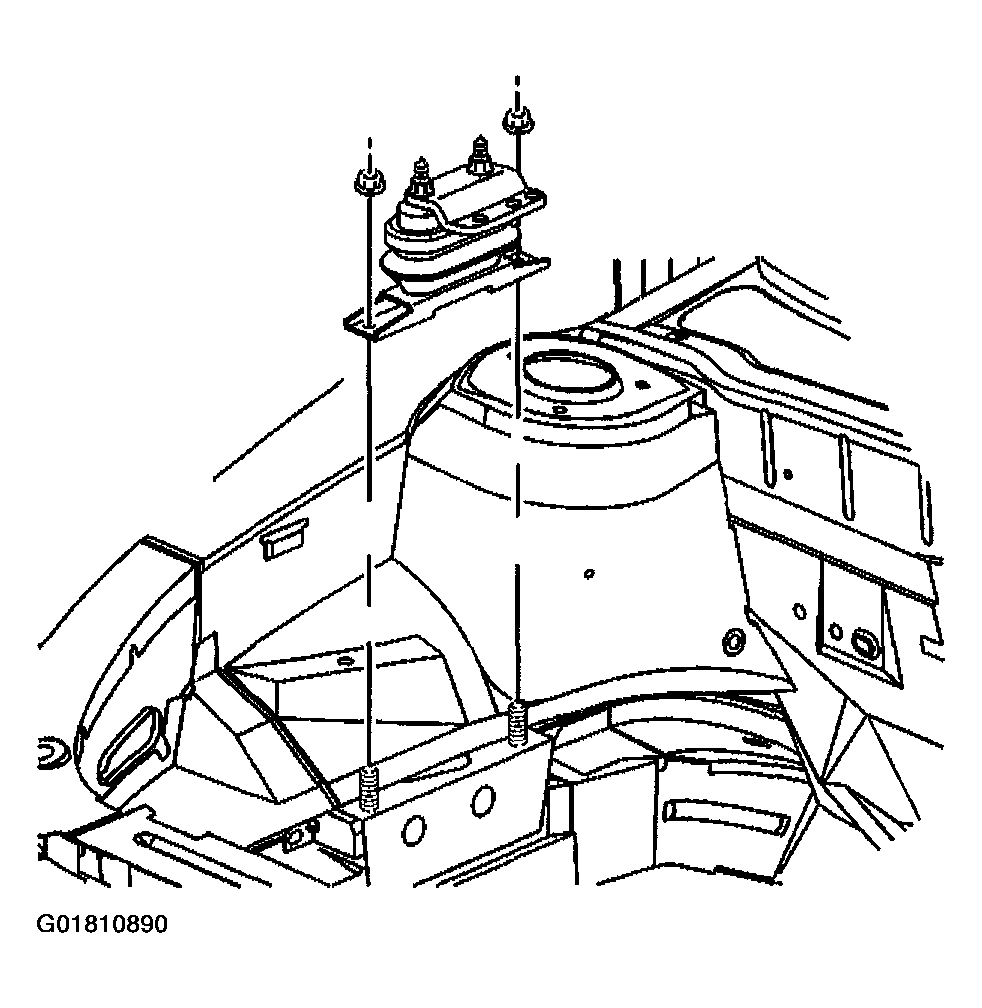

    Fig 2: Removing Engine Mount
    G01810890Courtesy of GENERAL MOTORS CORP.
