Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the engine mount to body nuts.

    Tighten

    Tighten the engine mount to body nuts to 66 N.m (49 lb ft).

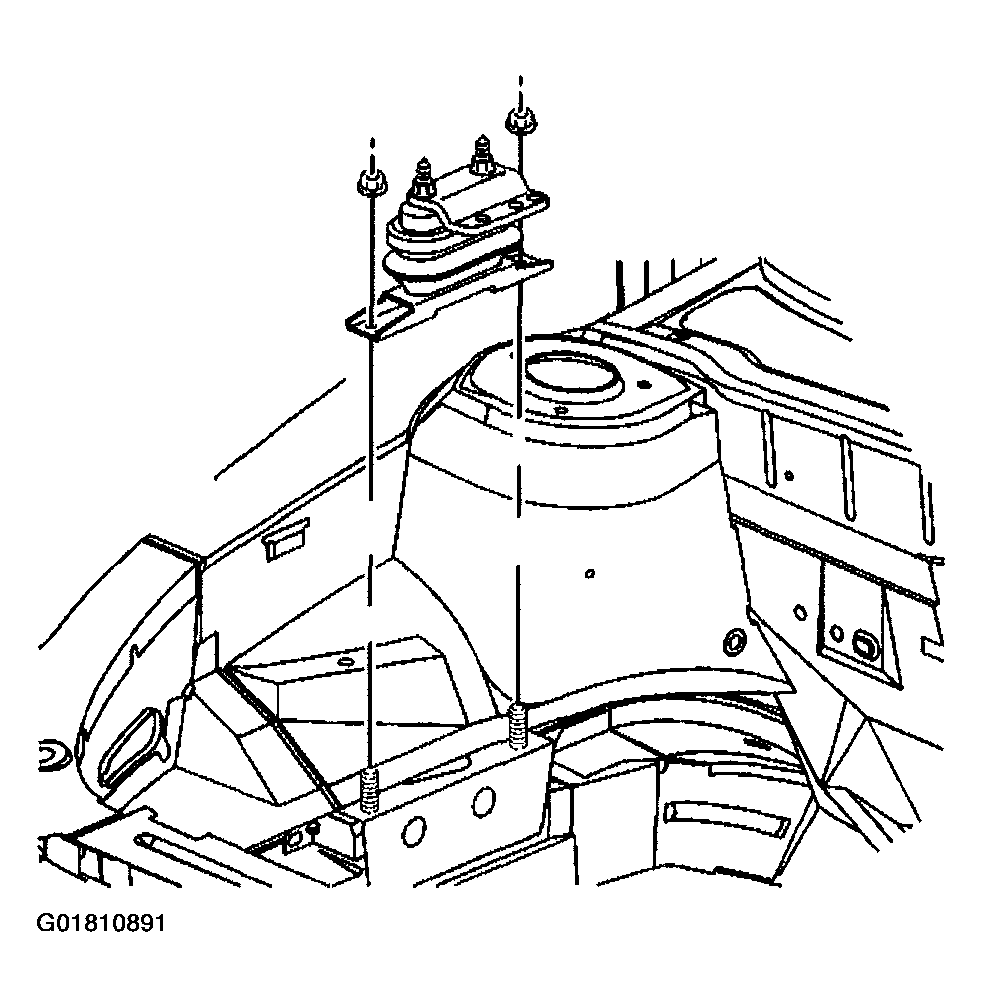

    Fig 1: Installing Engine Mount
    G01810891Courtesy of GENERAL MOTORS CORP.
  3. Install the engine mount to engine mount bracket bolts.

    Tighten

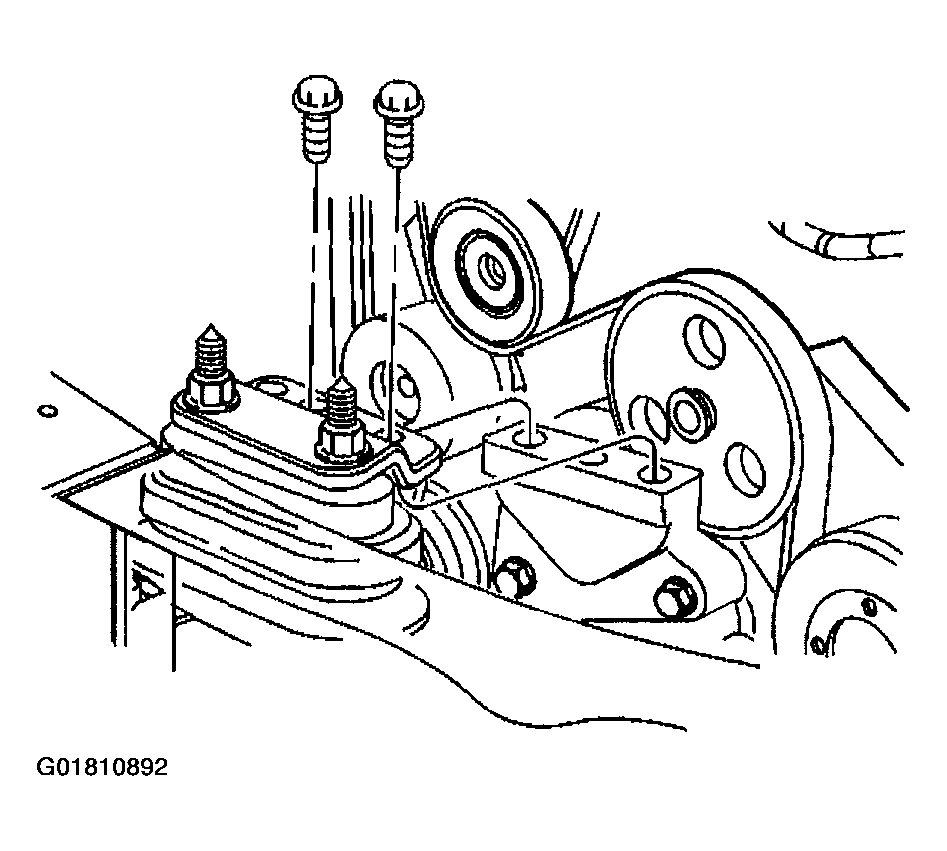

    Fig 2: Installing Engine Mount To Engine Mount Bracket Bolts
    G01810892Courtesy of GENERAL MOTORS CORP.

    Tighten the engine mount to engine mount bracket bolts to 130 N.m (96 lb ft).

  4. Install the cruise control module to bracket.
  5. Remove the floor jack.
