Removal Procedure
WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Routine inspection of the belt may reveal cracks in the belt ribs. These cracks will not impair the belt performance. The belt should be replaced if the belt slip occurs if a section of the belt ribs are missing.
A single serpentine drive belt is used to drive all engine accessories. All belt driven accessories are rigidly mounted with the belt tension maintained by a spring loaded tensioner. The indicator on the movable portion of the tensioner must be within the limits of the marks of the stationary portion of the tensioner. Any reading outside of these limits indicates either a defective belt or tensioner.
- Remove engine mount. Refer to Engine Mount Replacement .

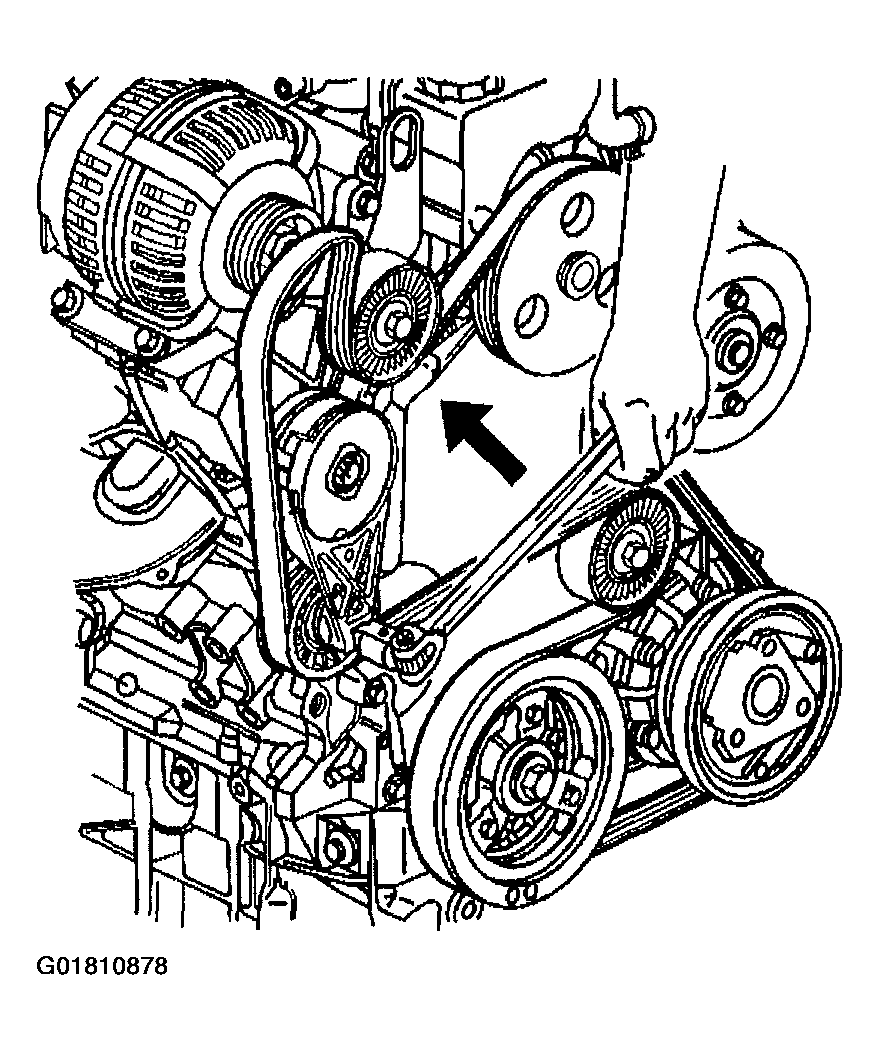

- Rotate the drive belt tensioner in a clockwise motion using a box end wrench.
- Remove the drive belt.
