Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the drive belt tensioner in a clockwise motion using a box end wrench.
  2. Install the drive belt. Connect the serpentine drive belt last to the power steering pulley.
  3. Install engine mount. Refer to Engine Mount Replacement  .

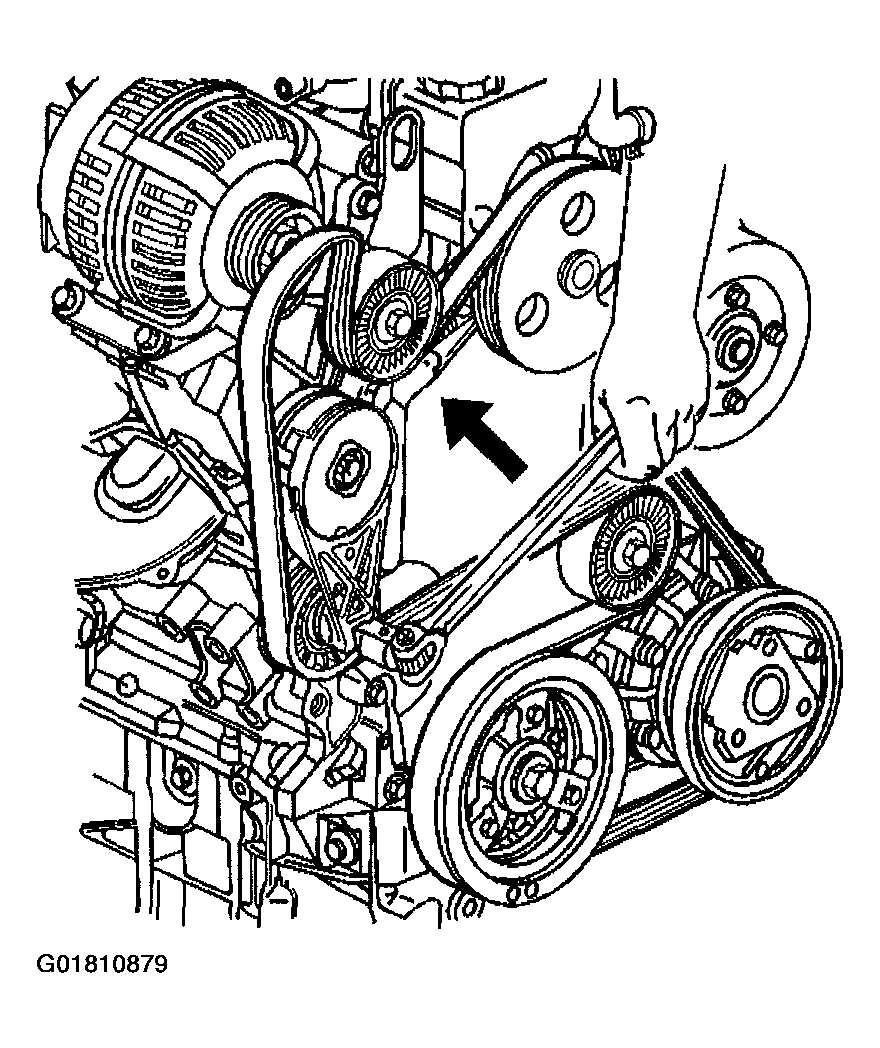

    Fig 1: Installing Drive Belt
    G01810879Courtesy of GENERAL MOTORS CORP.
