Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the oil seal using clean engine oil.
  2. Insert the oil seal into the front cover with the lip facing the engine. Use the J 35468.

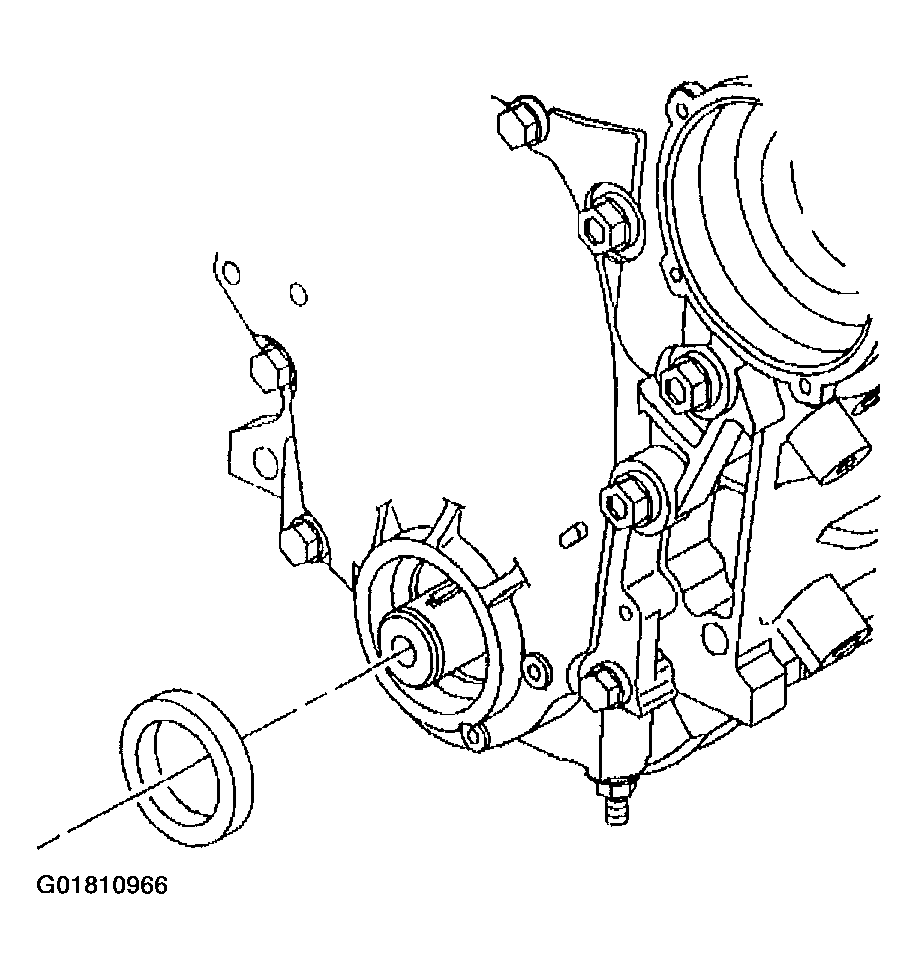

    Fig 1: Inserting Oil Seal
    G01810966Courtesy of GENERAL MOTORS CORP.
  3. Install the crankshaft key into the keyway.

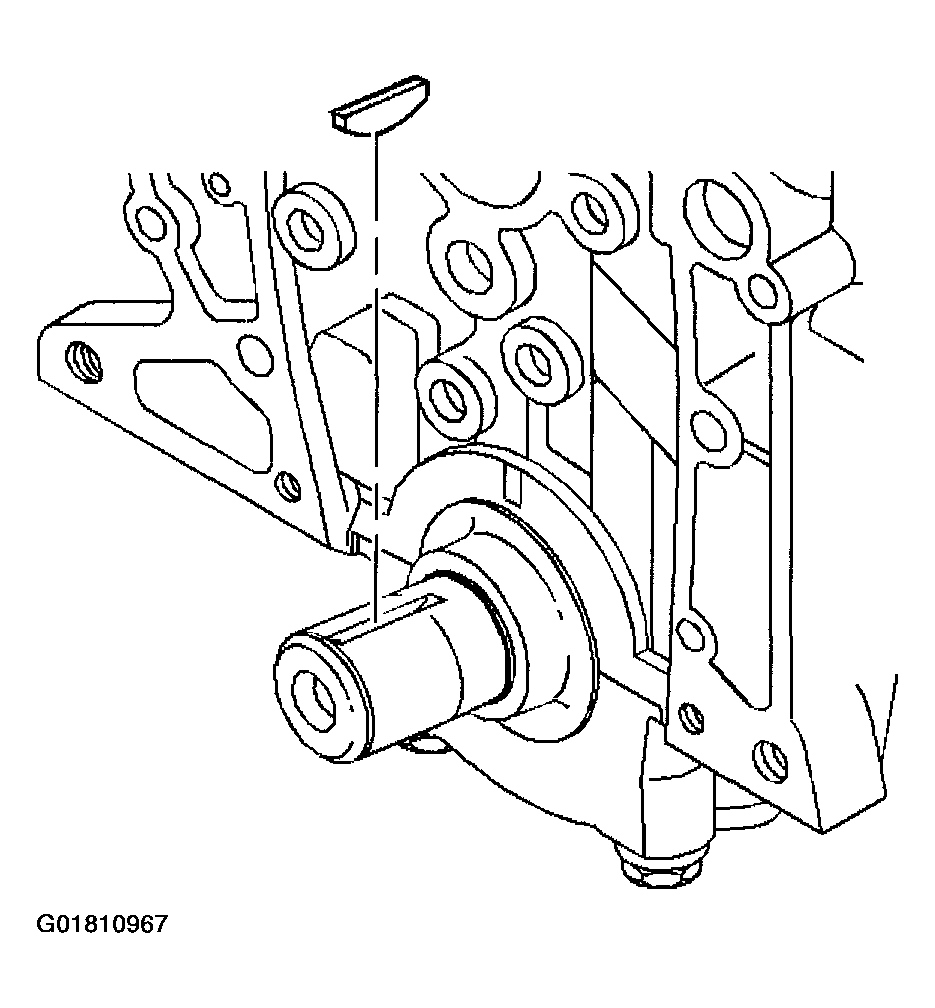

    4. Fig 2: Installing Crankshaft Key
    G01810967Courtesy of GENERAL MOTORS CORP.
  4. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement  .
