Upper Engine Noise, Regardless of Engine Speed

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

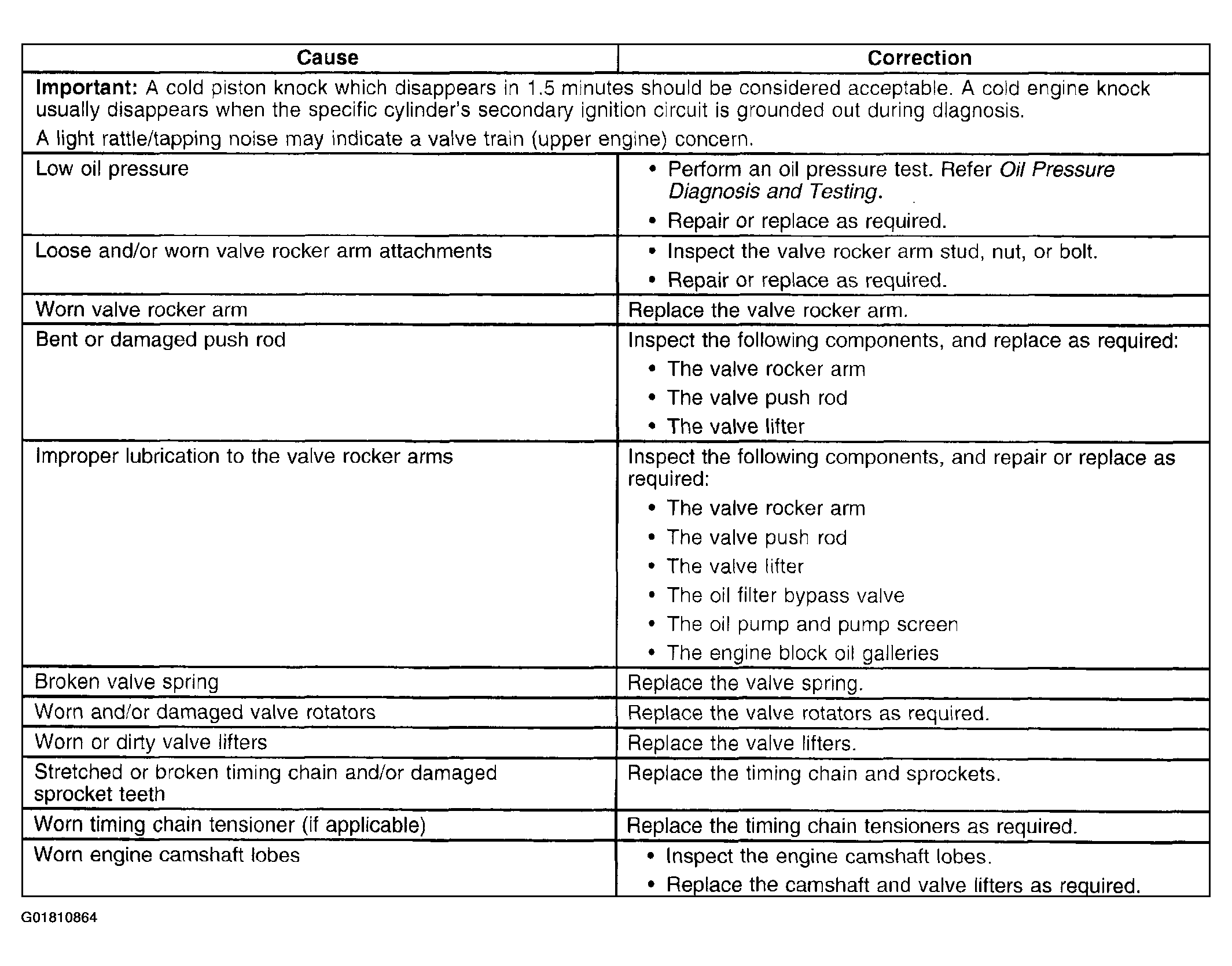

Fig 1: Upper Engine Noise, Regardless of Engine Speed (1 Of 2)
G01810864Courtesy of GENERAL MOTORS CORP.

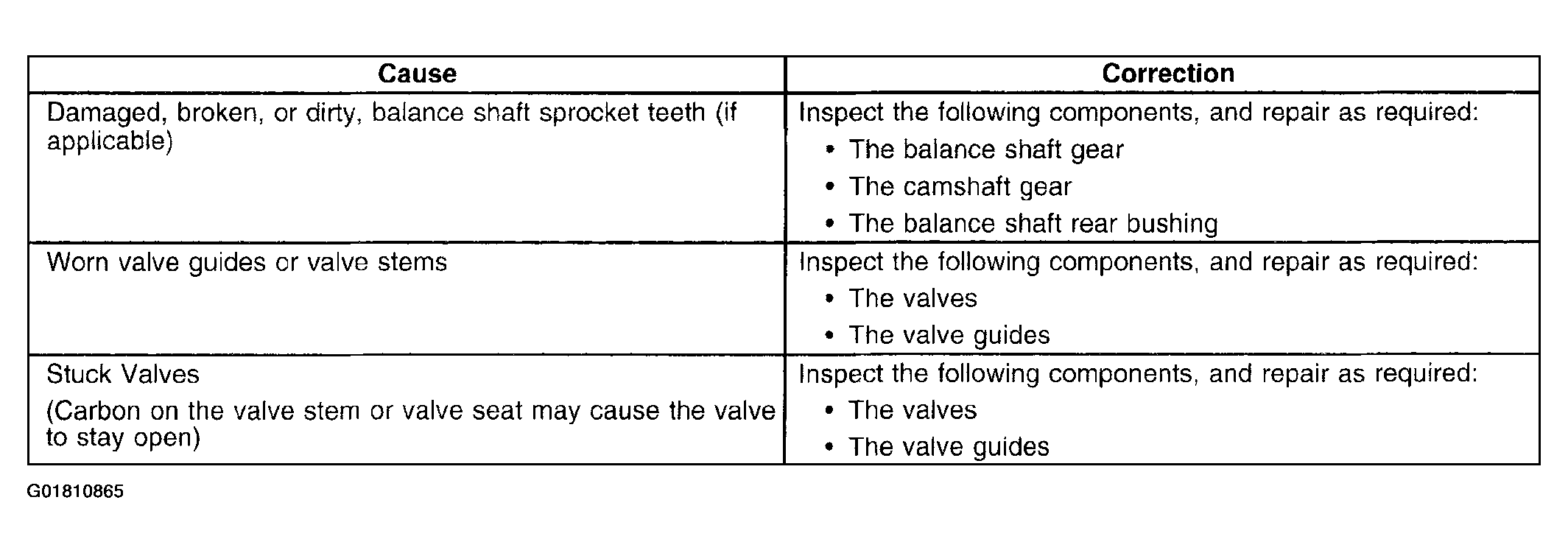

Fig 2: Upper Engine Noise, Regardless of Engine Speed (2 Of 2)
G01810865Courtesy of GENERAL MOTORS CORP.
