Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust manifold pipe gasket.

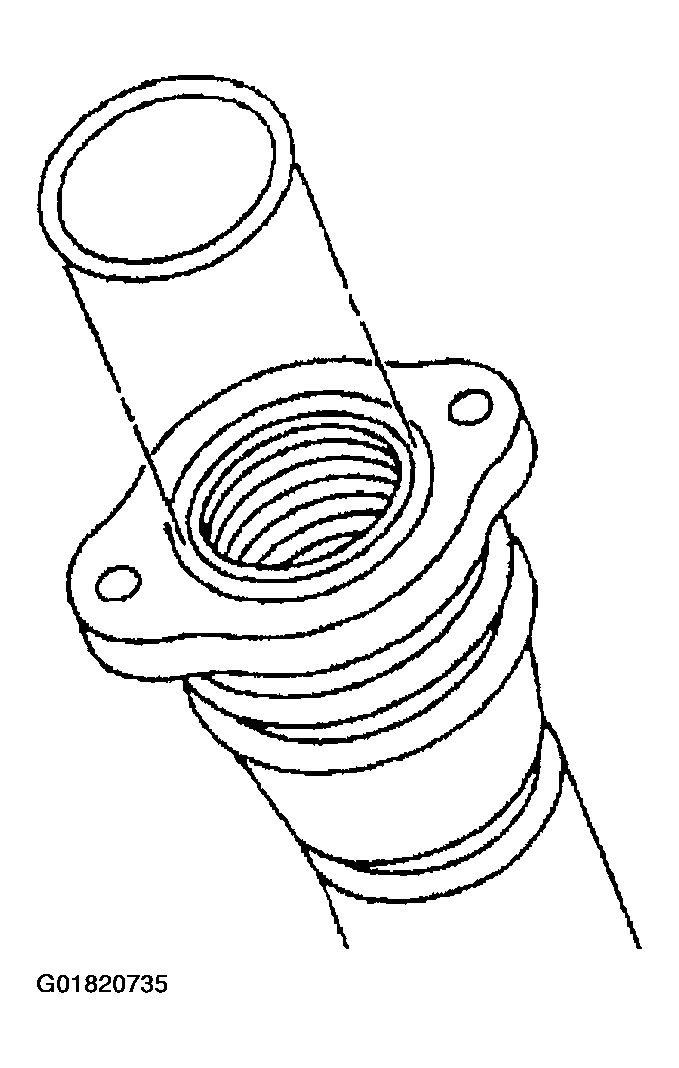

    Fig 1: Installing Exhaust Manifold Pipe Gasket
    G01820735Courtesy of GENERAL MOTORS CORP.
  2. Return the exhaust system to the proper position.
  3. Connect any hangers.
  4. Remove the exhaust system support.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the exhaust front pipe nuts to the exhaust manifold pipe studs.

    Tighten

    Tighten the exhaust nuts to 35 N.m (26 lb ft).

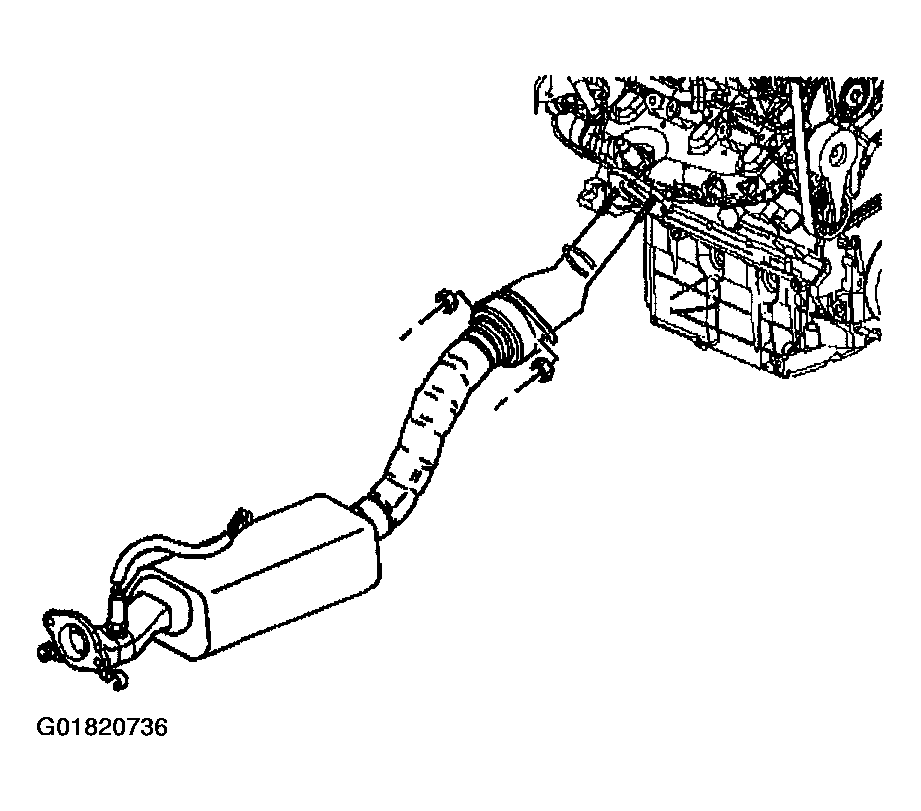

    6. Fig 2: Installing Exhaust Front Pipe Nuts
    G01820736Courtesy of GENERAL MOTORS CORP.
  6. Inspect the exhaust system for leaks and underbody contact.
  7. Lower the vehicle.
