Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Remove the crossover pipe. Refer to Exhaust Crossover Pipe Replacement .

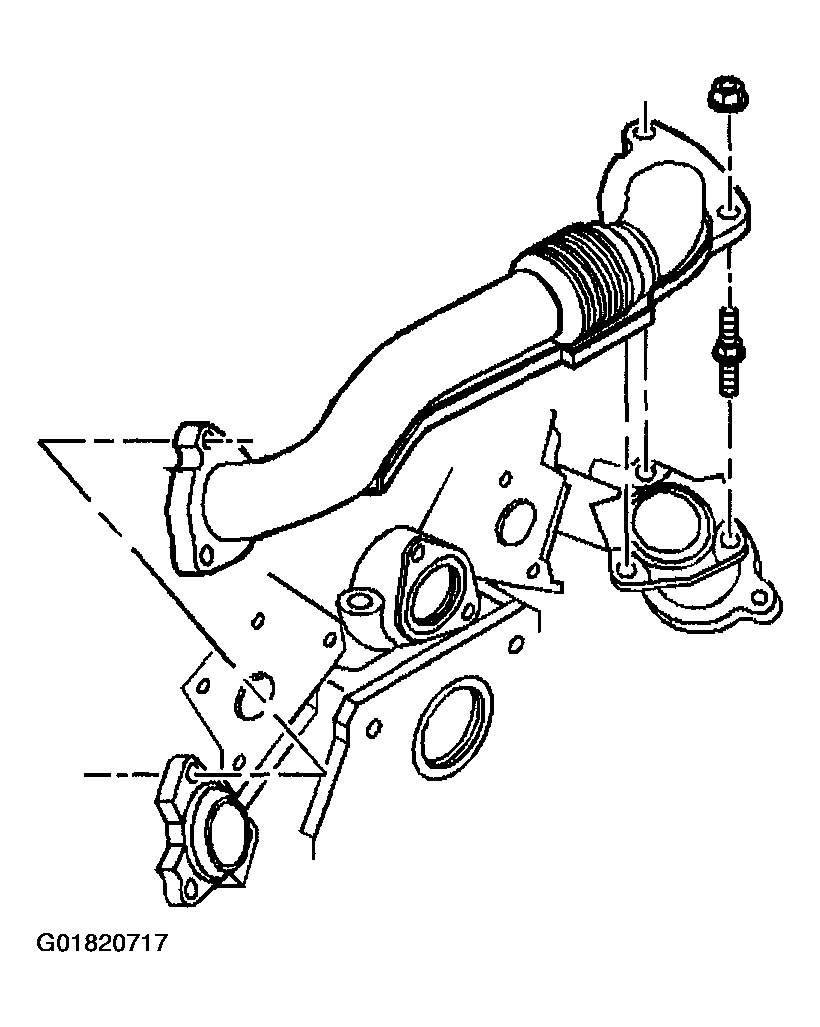

Fig 1: Removing Crossover Pipe
Courtesy of GENERAL MOTORS CORP.
Remove the exhaust manifold heat shield bolts.
Remove the exhaust manifold heat shield.

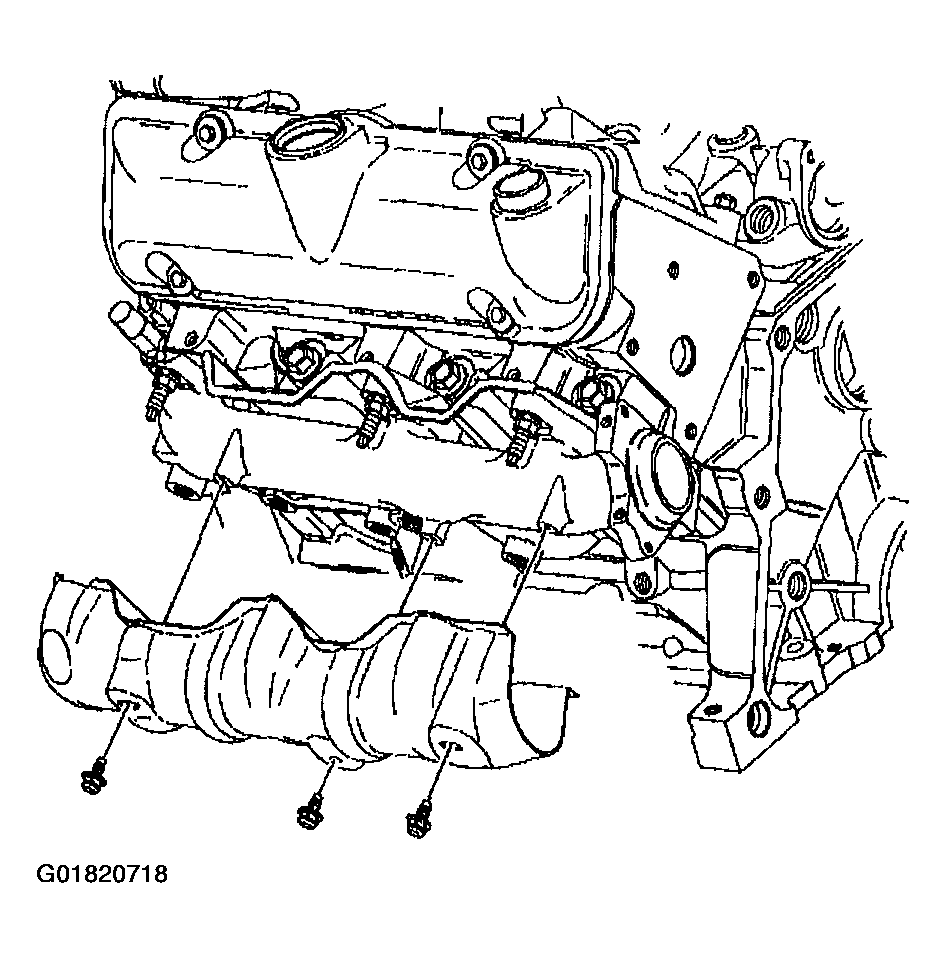

Fig 2: Removing Exhaust Manifold Heat Shield
Courtesy of GENERAL MOTORS CORP.
Remove the exhaust manifold nuts.
Remove the exhaust manifold.
Remove the exhaust manifold gasket.

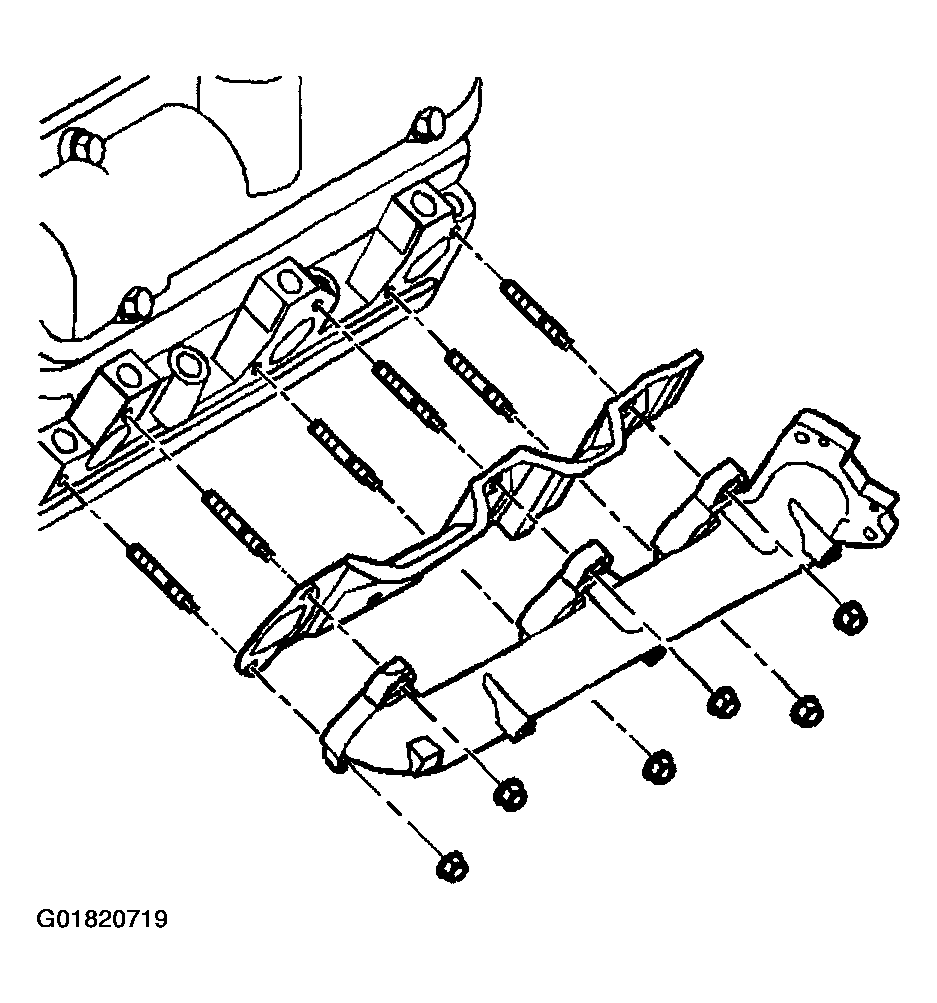

Fig 3: Removing Exhaust Manifold & Gasket

Courtesy of GENERAL MOTORS CORP.

Clean the mating surfaces at the cylinder head and at the exhaust manifold.
