Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly.
  2. Remove thermostat by-pass pipe assembly. Refer to THERMOSTAT BYPASS PIPES REPLACEMENT in Engine-Engine Cooling.
  3. Remove the exhaust crossover pip heat shield bolts.
  4. Remove the crossover pipe heat shield.

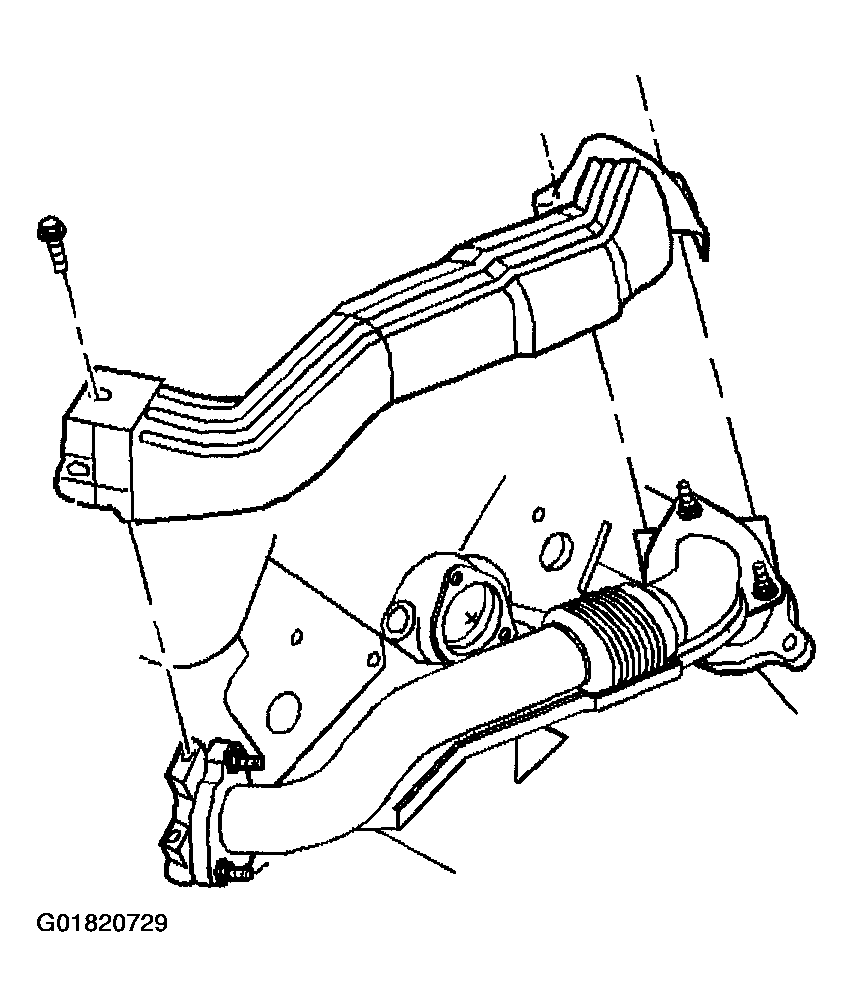

    Fig 1: Removing Exhaust Crossover Pipe Heat Shield
    G01820729Courtesy of GENERAL MOTORS CORP.
  5. Remove the exhaust crossover pipe bolts.
  6. Remove the exhaust crossover pipe.

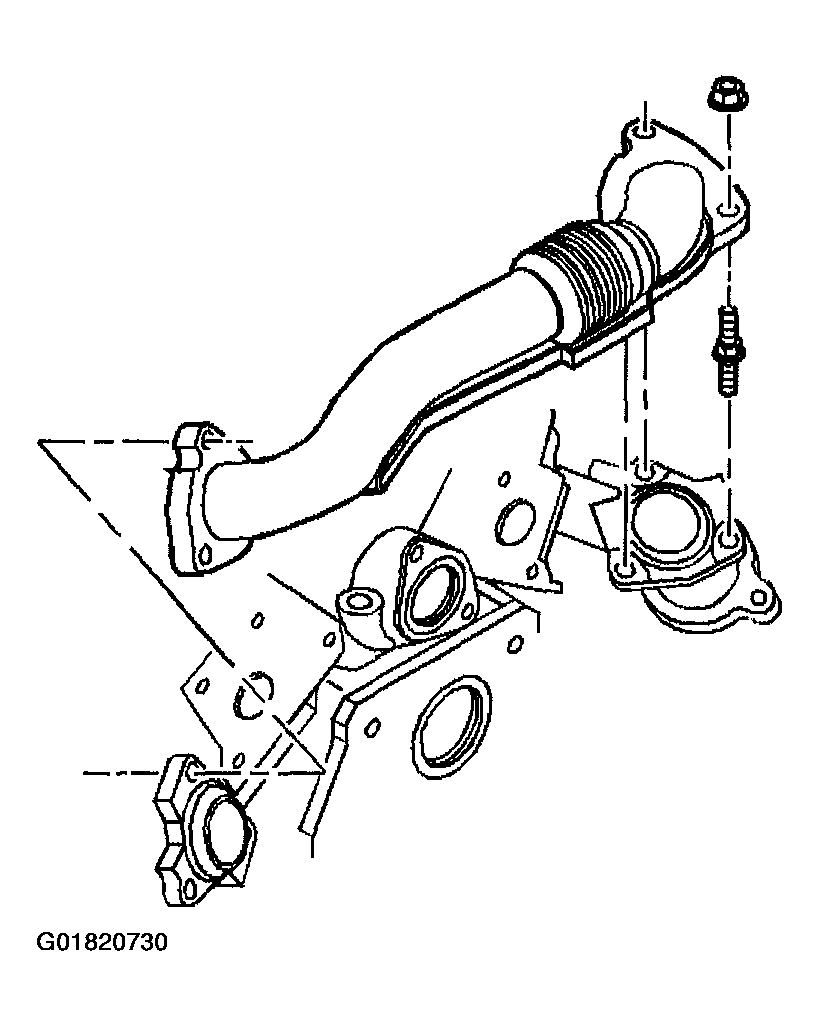

    Fig 2: Removing Exhaust Crossover Pipe
    G01820730Courtesy of GENERAL MOTORS CORP.
