Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
  2. Remove the rear speaker screws (1) from the speaker (3).
  3. Remove the speaker (3) from the rear package self.
  4. Disconnect the electrical connector (2) from the speaker (3).

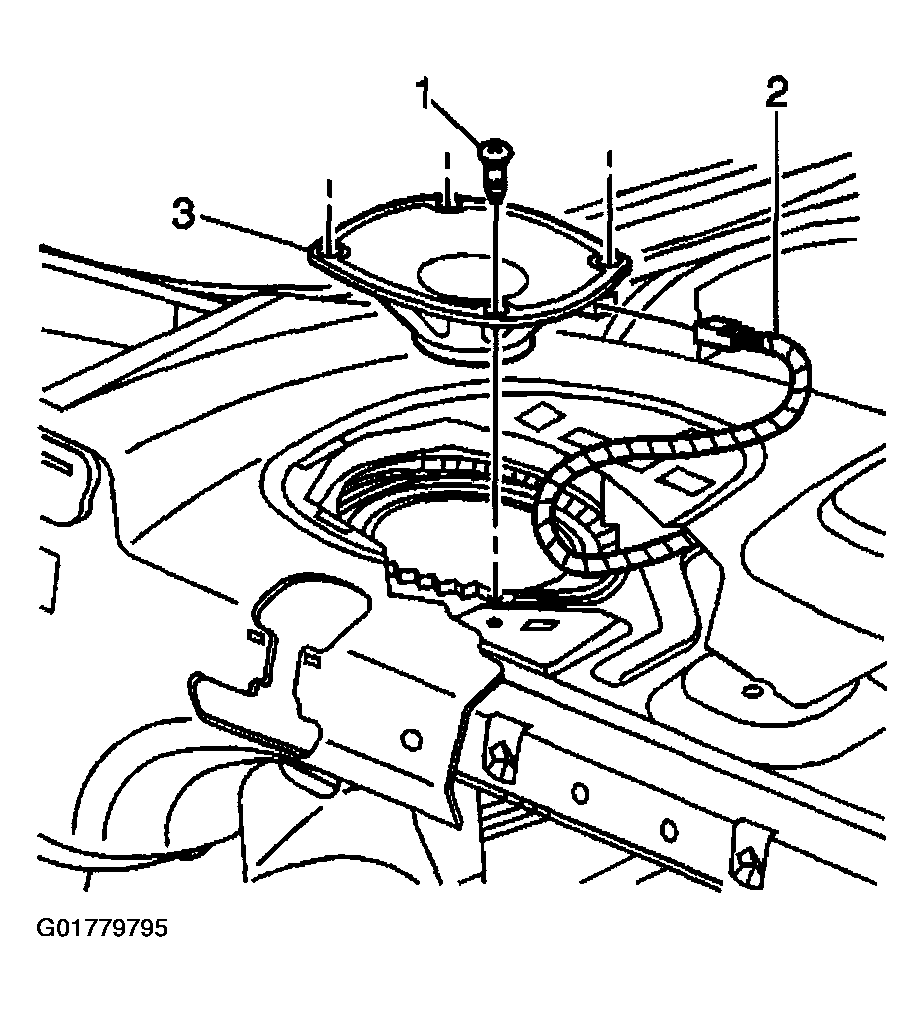

    Fig 1: Removing Rear Speaker
    G01779795Courtesy of GENERAL MOTORS CORP.
