Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector (2) to the speaker (3).
  2. Install the speaker (3) to the package self.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the speaker screws to the rear speaker.

    Tighten

    Tighten the screws to 3 N.m (27 lb in).

  4. Install the rear window trim shelf. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .

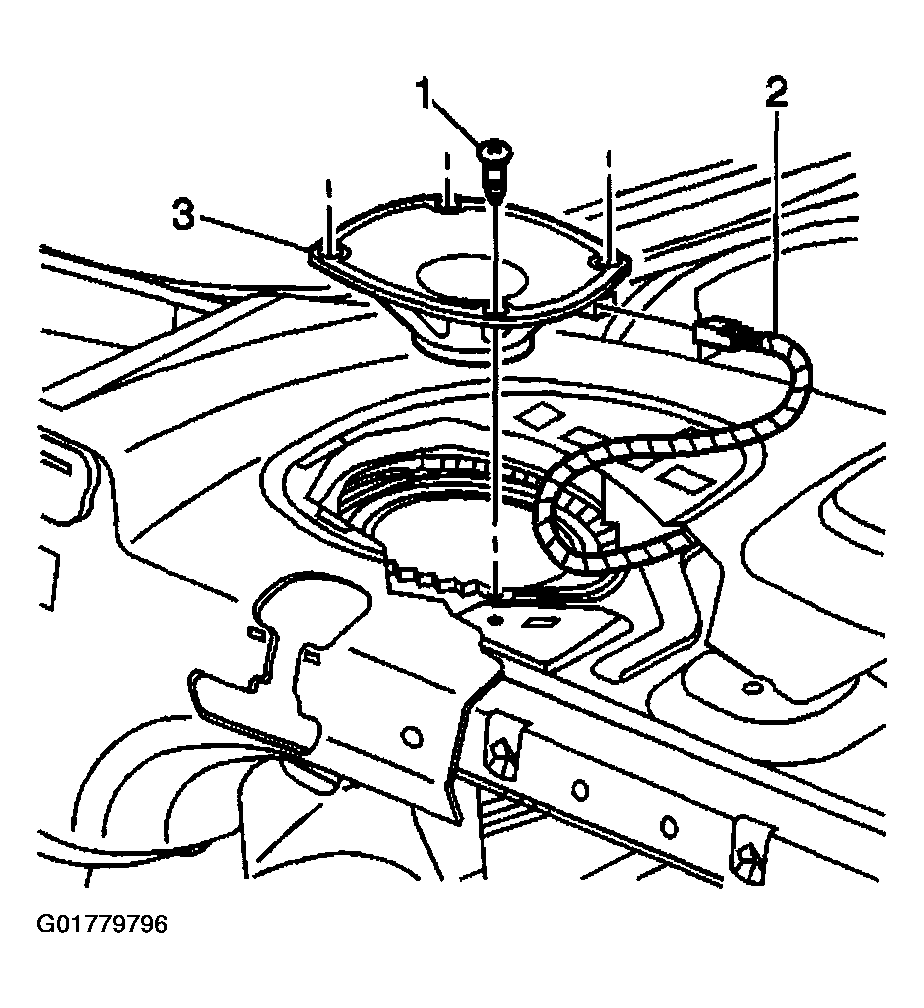

    Fig 1: Installing Rear Speaker
    G01779796Courtesy of GENERAL MOTORS CORP.
