Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use tape on the tool surface so that you do not damage the paint on the antenna mast.
  1. Remove the antenna mast from the antenna base (3).
  2. Open rear trunk lid and pull back the carpet in the rear compartment to expose the antenna base (3).
  3. Remove the mounting bolts from the antenna base (3).
  4. Disconnect the antenna lead (2) from the antenna base (3).
  5. Remove the antenna base (3) from the antenna mounting spacer (1), by pulling in a downward motion.

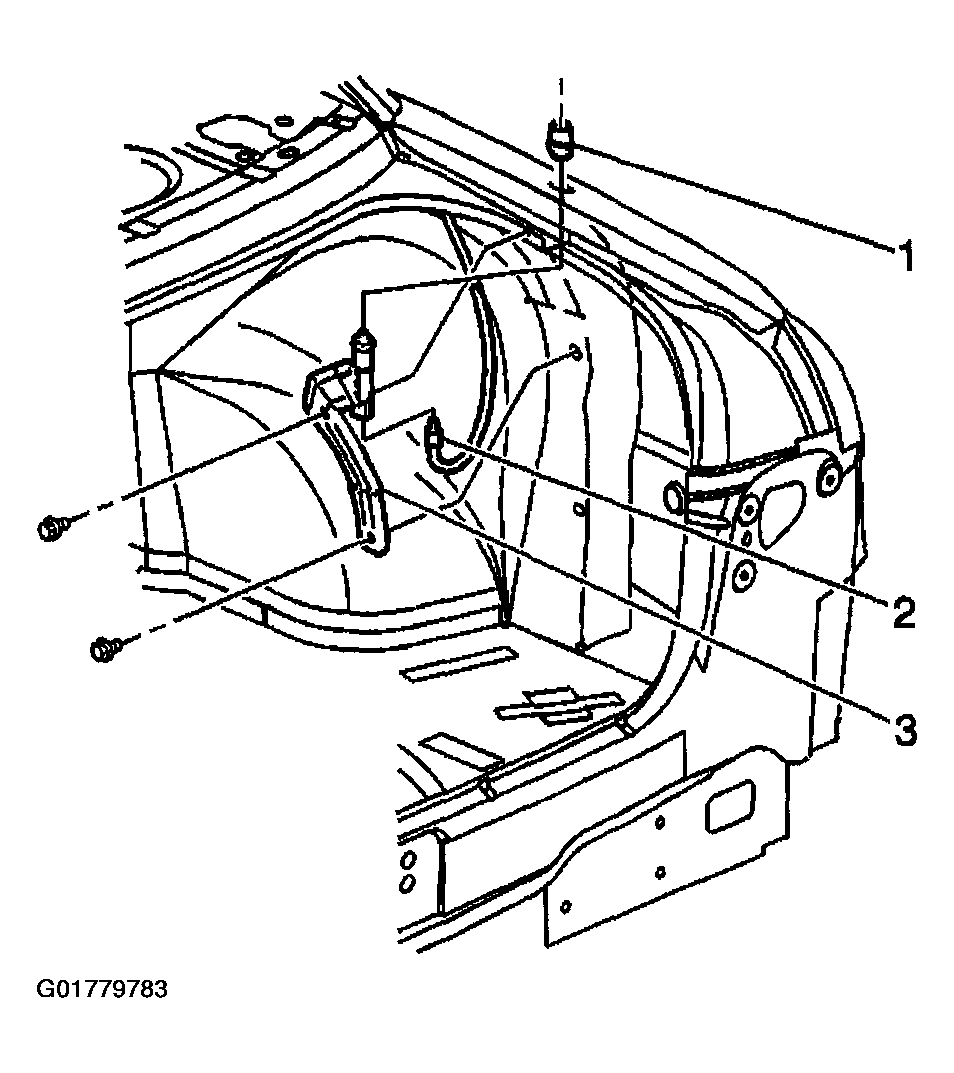

    Fig 1: Removing Fixed Antenna
    G01779783Courtesy of GENERAL MOTORS CORP.
