Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the passenger door.
  2. Remove the passenger side carpet retainer. Refer to COMPARTMENT REPLACEMENT -- IP .
  3. Remove the center pillar lower trim panel. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR .
  4. Adjust the carpet for access to the wiring harness as required.
  5. Disconnect the antenna extension lead (2) from the main body harness coaxial cable (1).

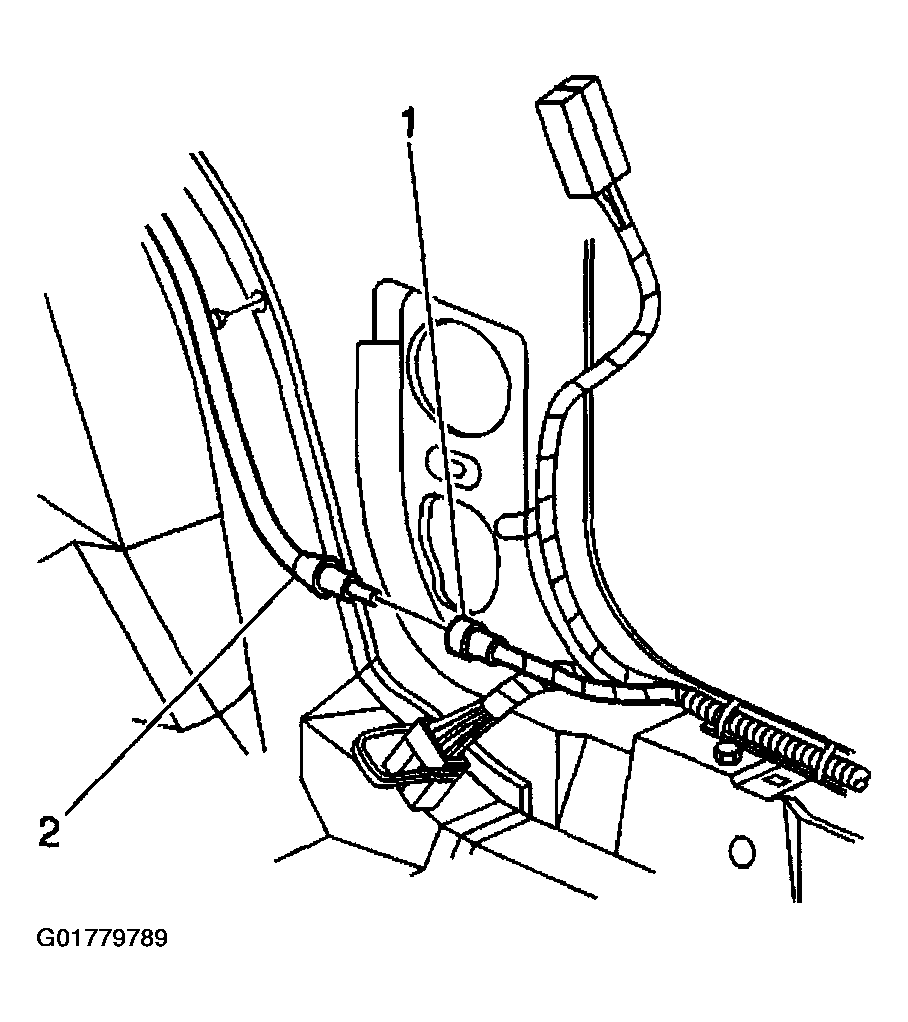

    6. Fig 1: Disconnecting Antenna Extension Lead From Main Body Harness Coaxial Cable
    G01779789Courtesy of GENERAL MOTORS CORP.
  6. Cut off the visible end of the coaxial antenna cable from the wiring harness in the front kick plate area.
  7. Open the rear trunk lid and pull back the rear compartment carpet to expose the antenna base.
  8. Disconnect the antenna lead (2) from the antenna base (3).
  9. Cut off the visible end of the coaxial antenna cable from the wiring harness in the rear compartment area.

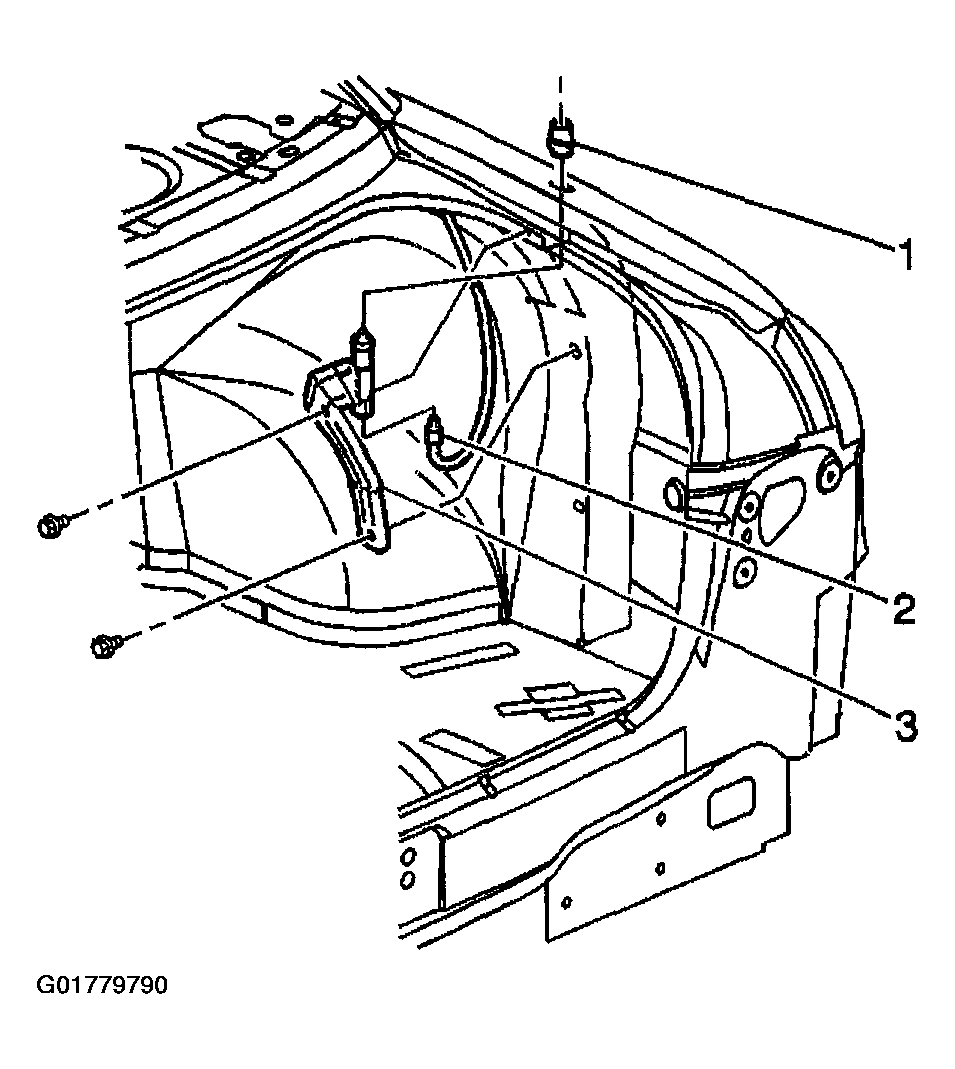

    Fig 2: Disconnecting Antenna Lead From Antenna Base
    G01779790Courtesy of GENERAL MOTORS CORP.
