Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radio. Refer to Radio Replacement .
  2. Remove the instrument panel storage compartment. Refer to COMPARTMENT REPLACEMENT -- IP .
  3. Remove the antenna extension cable retainers (2) from the instrument panel (1).

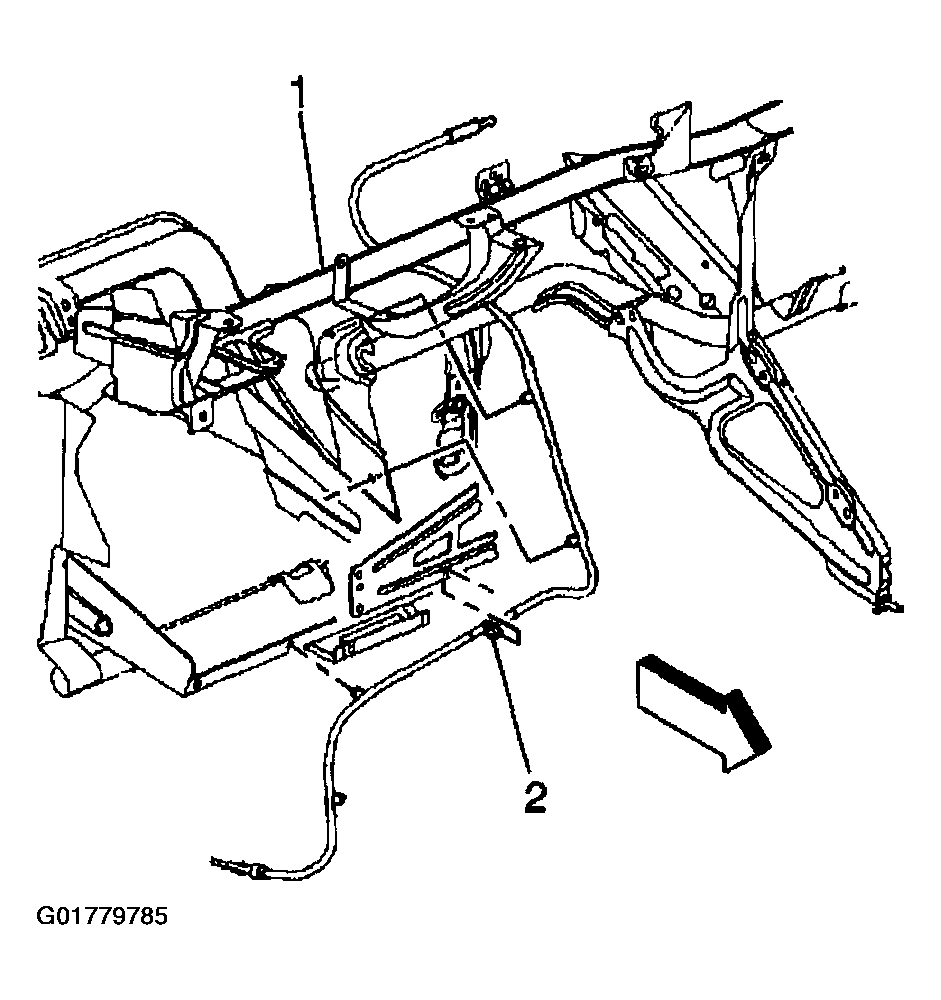

    Fig 1: Removing Antenna Extension Cable Retainers
    G01779785Courtesy of GENERAL MOTORS CORP.
  4. Remove the right side carpet retainer. Refer to CARPET RETAINER REPLACEMENT .
  5. Pull back the carpet in order to gain access to the antenna extension cable (2).
  6. Disconnect the antenna extension cable (2) from the main body harness (1).
  7. Remove the antenna extension cable (2) from the vehicle.

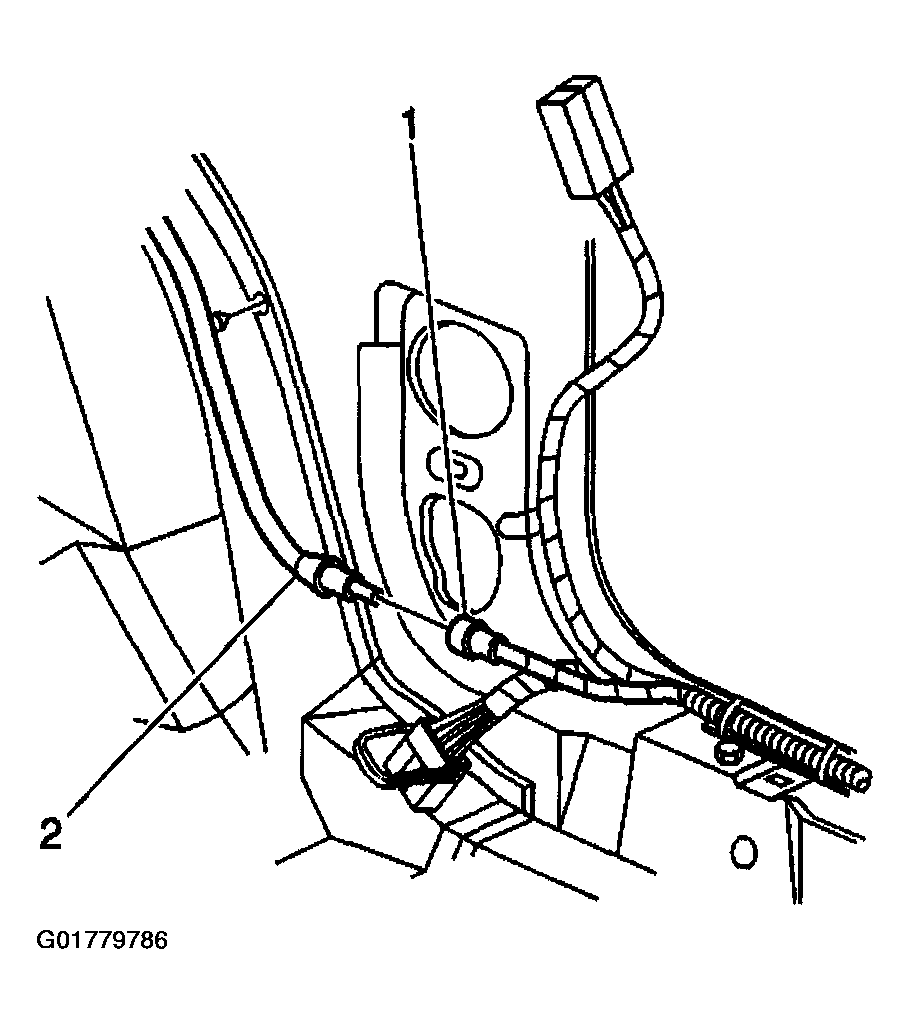

    Fig 2: Removing Antenna Extension Cable
    G01779786Courtesy of GENERAL MOTORS CORP.
