Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  2. Disconnect the wiper motor electrical connector.
  3. Remove the wiper motor cover screws.
  4. Remove the wiper motor cover from the wiper motor.

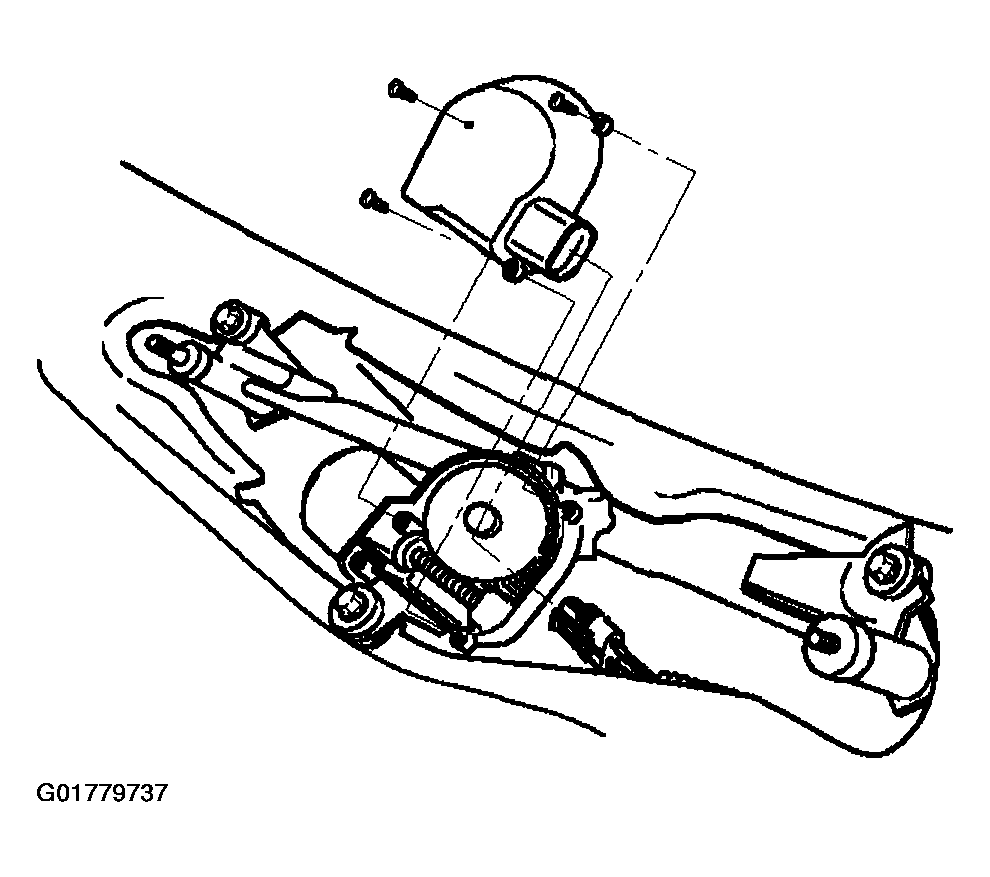

    Fig 1: Removing Wiper Motor Cover
    G01779737Courtesy of GENERAL MOTORS CORP.
