Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the left front fender liner. Refer to FRONT FENDER LINER REPLACEMENT .
  3. Disconnect the washer hose from the washer pump.
  4. Lower the vehicle.

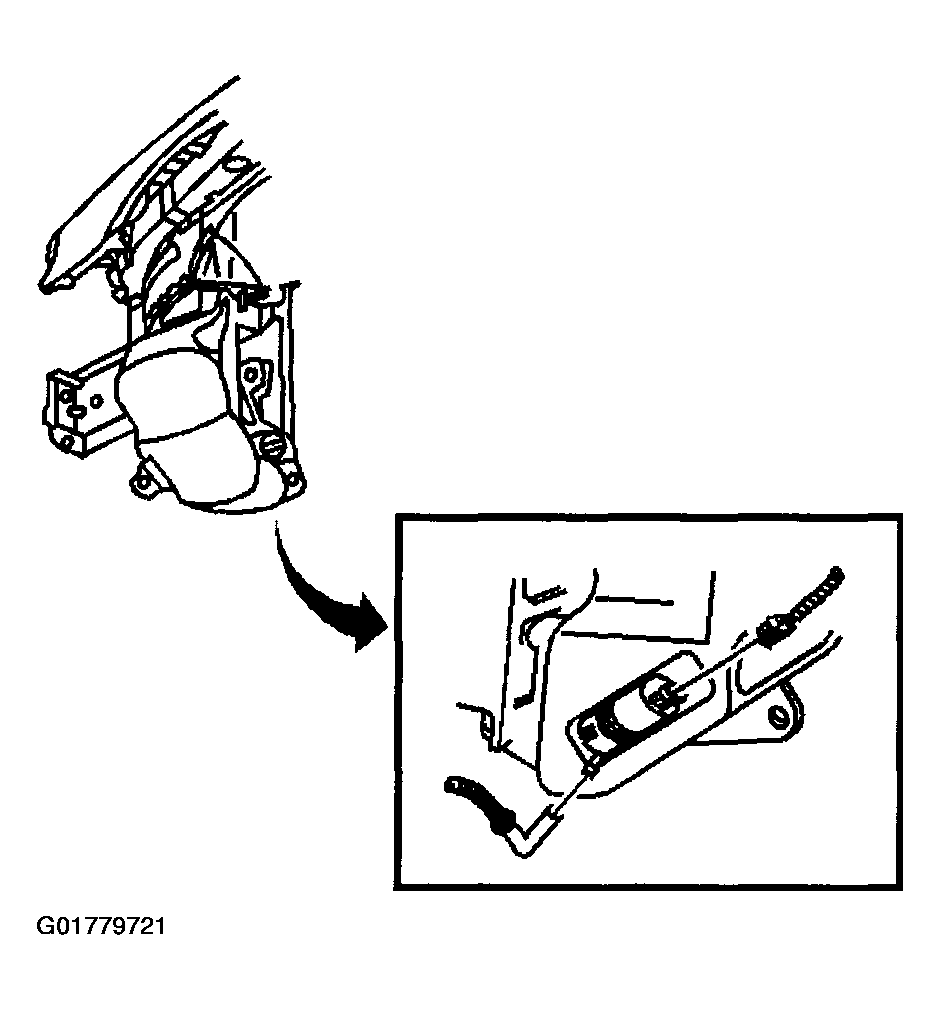

    Fig 1: Disconnecting Washer Hose From Washer Pump
    G01779721Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the washer hose from the left front fender.

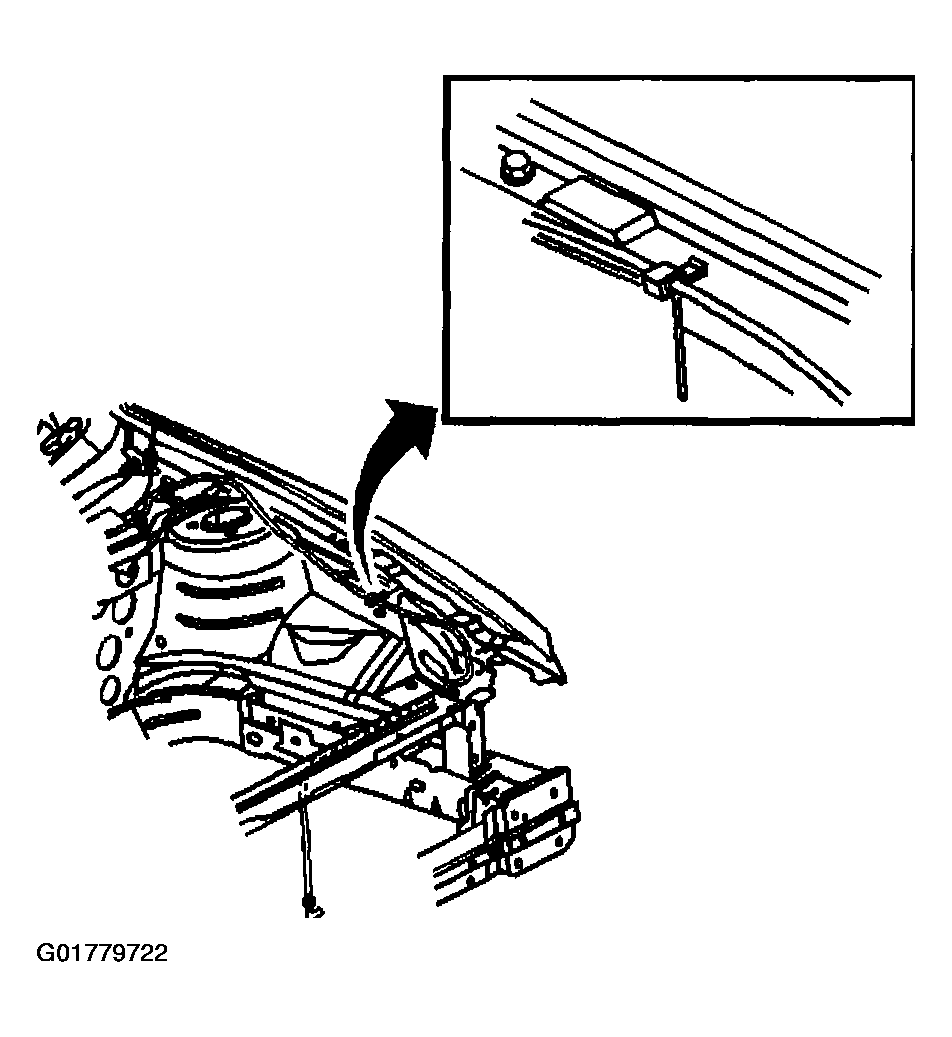

    Fig 2: Disconnecting Washer Hose From Left Front Fender
    G01779722Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the washer hose from the wiper arms.
  7. Disconnect the washer hose from the air inlet grille panel.
  8. Remove the washer hose from the vehicle.

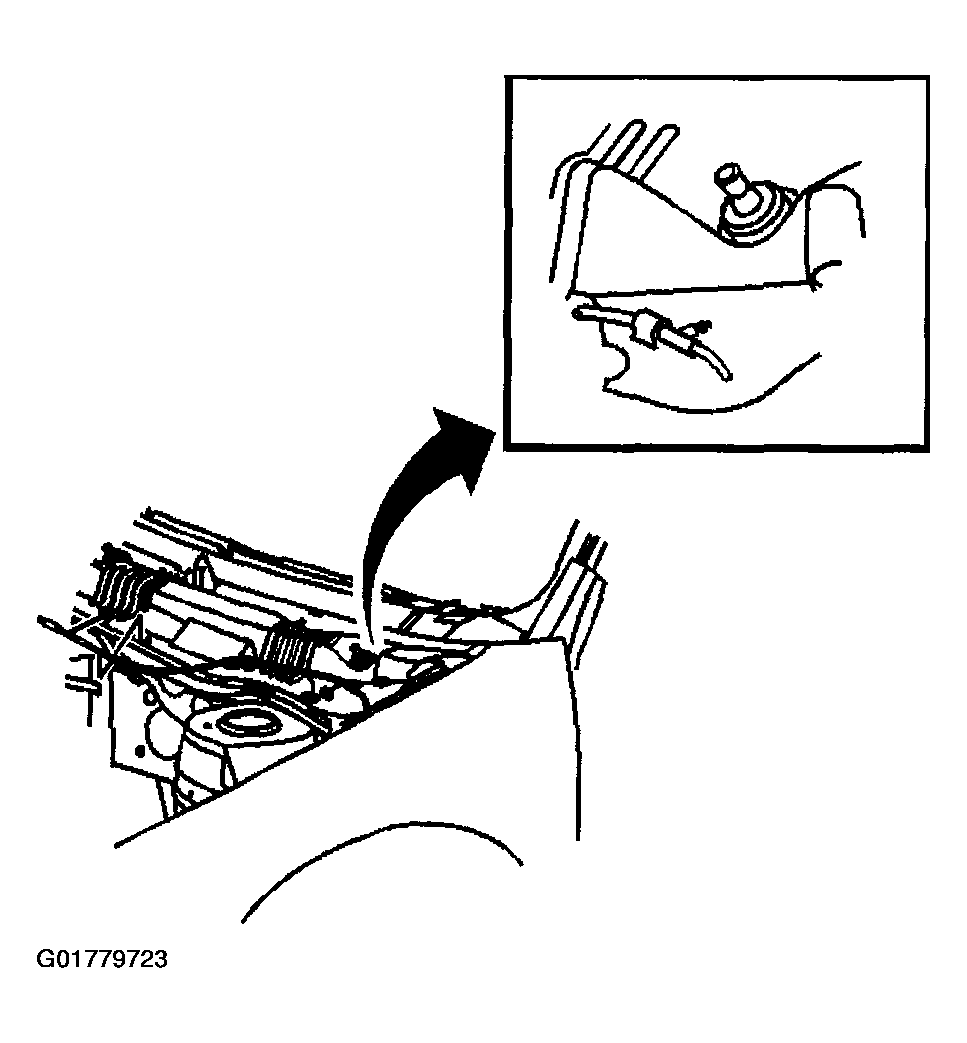

    Fig 3: Removing Washer Hose
    G01779723Courtesy of GENERAL MOTORS CORP.
