Test Description

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

8. This step tests for continuity through the 24K Ω resistor in the windshield wiper/washer switch.
9. This step tests for continuity through the delay resistors in the windshield wiper/washer switch. The measured resistance will change in sequence from high to low as the delay speed is increased.

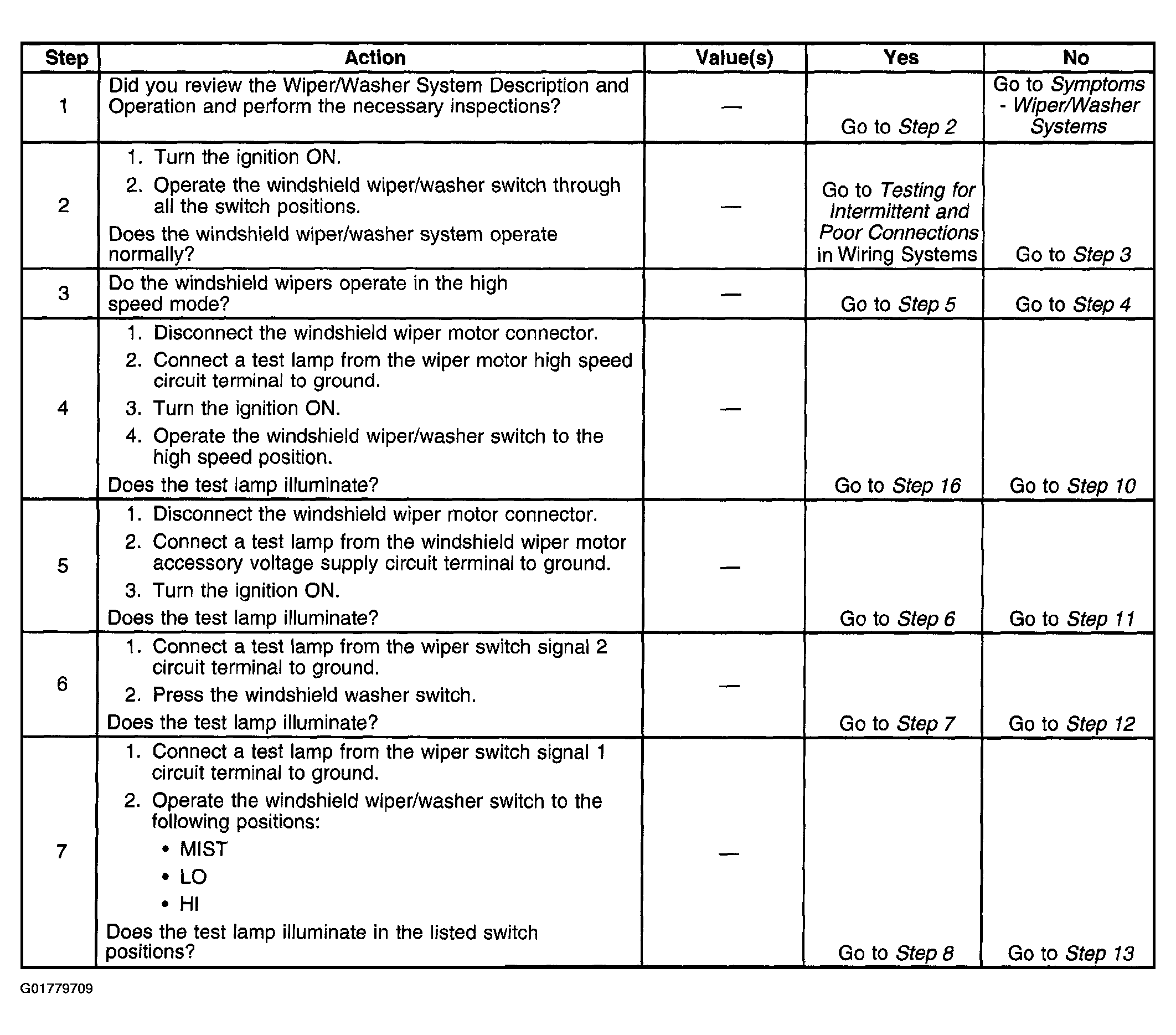

Fig 1: Identifying Wipers Inoperative - One Or More Modes Diagnostic Table (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

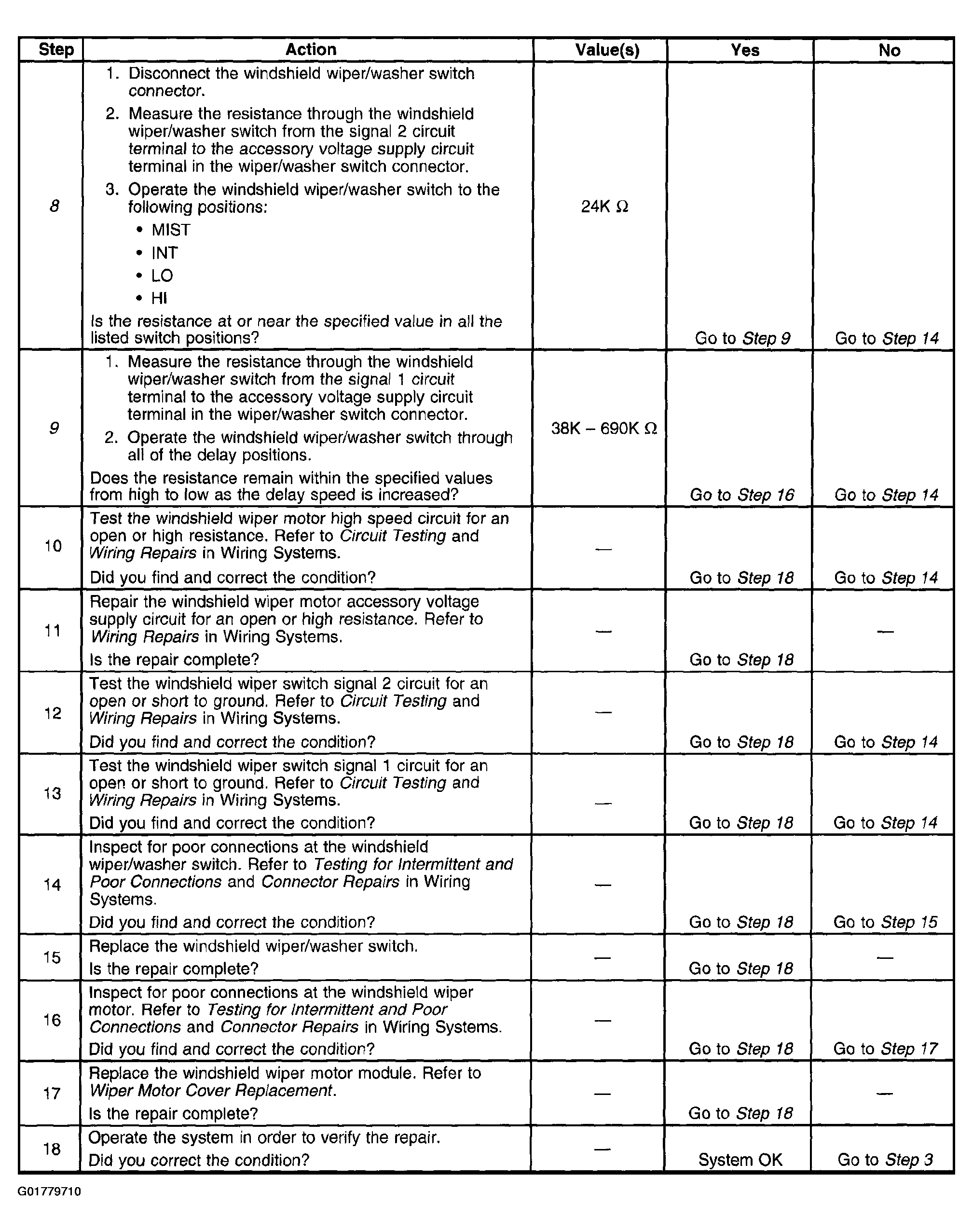

Fig 2: Identifying Wipers Inoperative - One Or More Modes Diagnostic Table (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
