Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the throttle body air inlet duct.
  2. Drain the cooling system. Refer to Draining and Filling Cooling System  .
  3. Remove the throttle body inlet hose clamp and hose (3) from the coolant pipe.
  4. Remove the throttle body inlet hose clamp and hose from the throttle body.
  5. Remove the throttle body inlet hose (3).

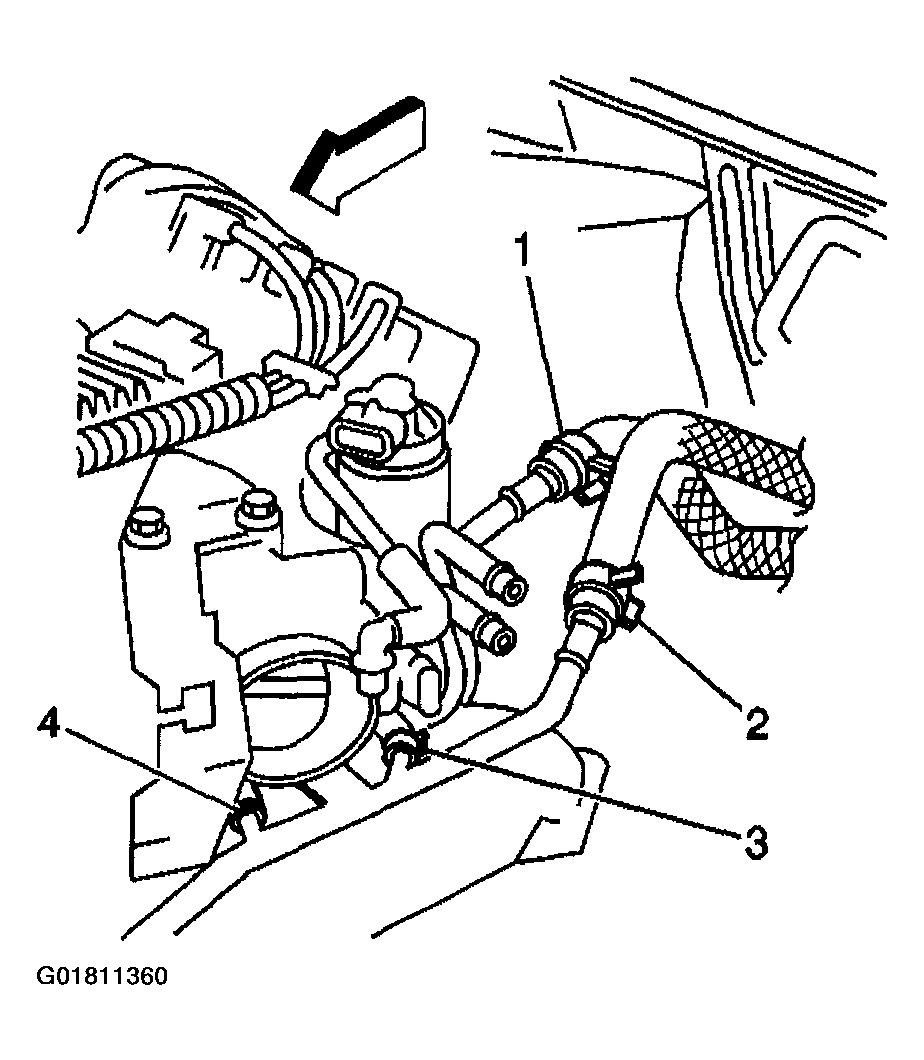

    Fig 1: Removing Throttle Body Heater Inlet Hose
    G01811360Courtesy of GENERAL MOTORS CORP.
