Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the throttle body inlet hose (3).
  2. Install the throttle body inlet hose and clamp to the throttle body.
  3. Install the throttle body inlet hose (3) and clamp to the coolant pipe.
  4. Fill the cooling system. Refer to Draining and Filling Cooling System  .
  5. Install the throttle body air inlet duct.

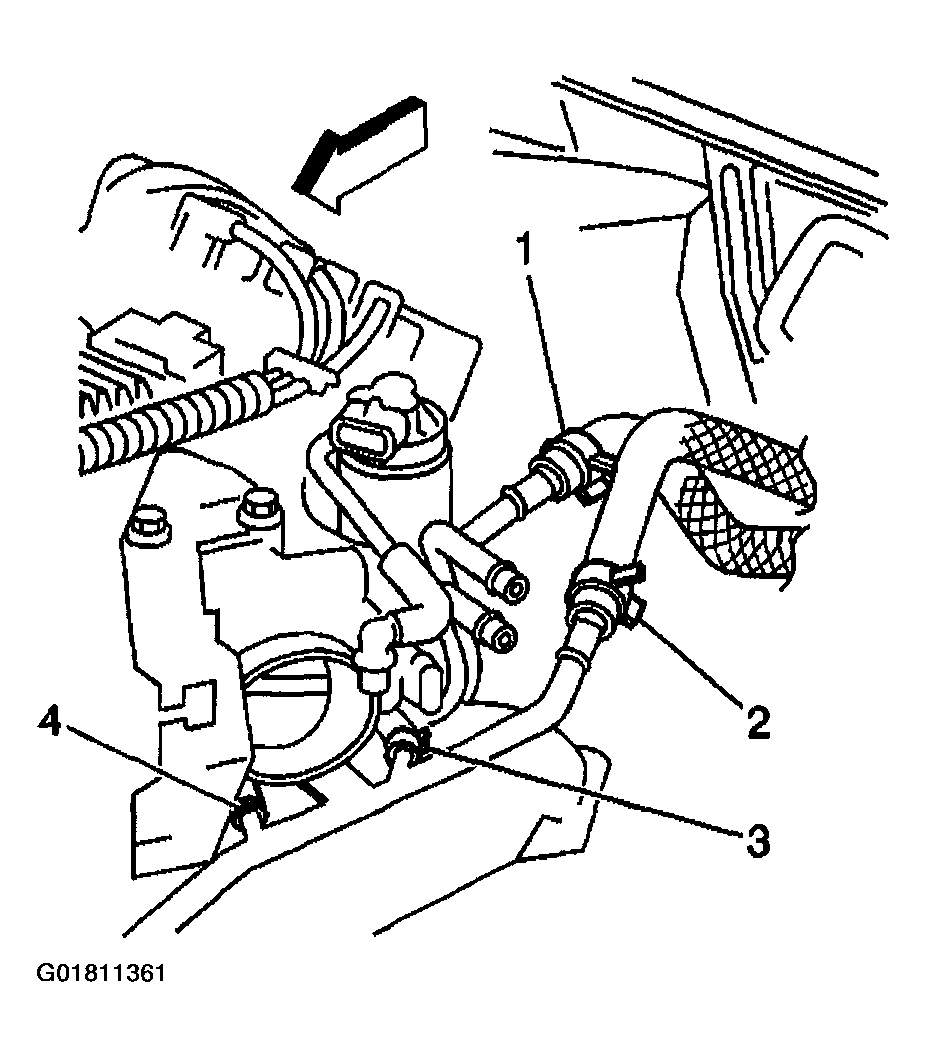

    Fig 1: Installing Throttle Body Heater Inlet Hose
    G01811361Courtesy of GENERAL MOTORS CORP.
