Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System  .
  2. Using the J 38185,  reposition the hose clamp at the water pump housing.
  3. Disconnect the outlet hose from (3) the water pump housing (1).
  4. Using the J 38185,  reposition the hose clamp at the radiator.
  5. Disconnect the outlet hose (3) from the radiator (2).
  6. Remove the outlet hose.

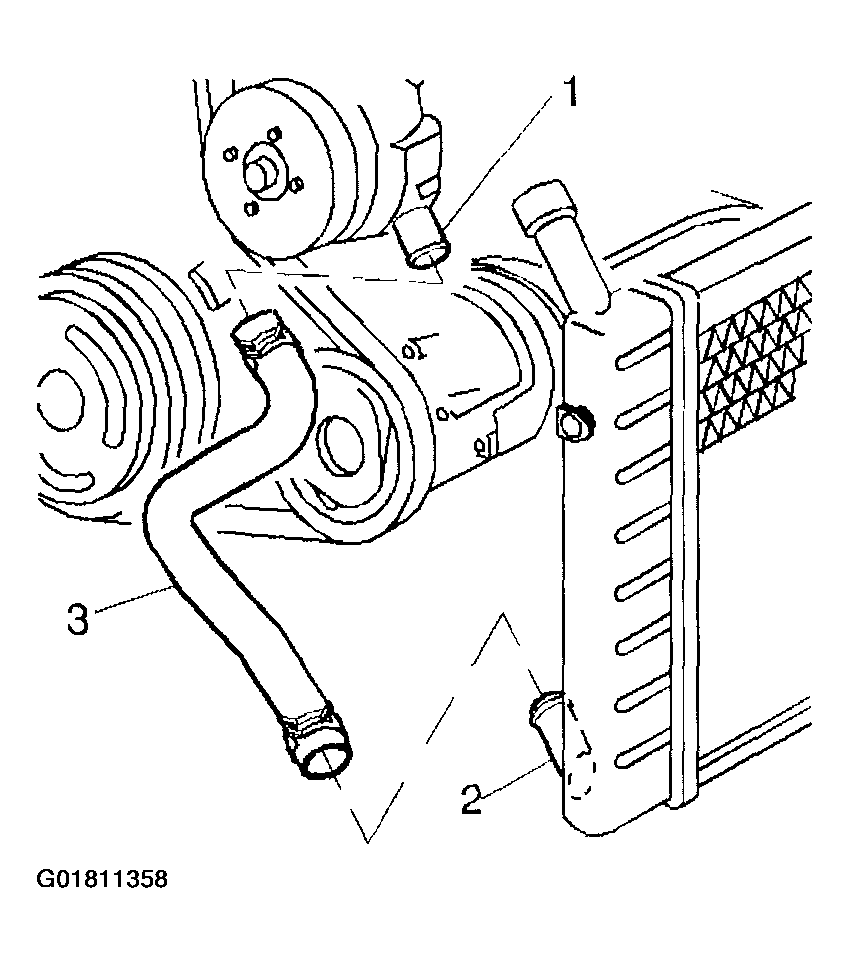

    Fig 1: Removing Radiator Outlet Hose
    G01811358Courtesy of GENERAL MOTORS CORP.
