Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the marks on the hose. Install the outlet hose to the radiator.
  2. Install the outlet hose (3) to the radiator (2).
  3. Using the J 38185,  reposition and install the hose clamp at the radiator.
  4. Install the outlet hose (3) to the water pump housing (1).
  5. Using the J 38185,  reposition and install the hose clamp at the water pump housing.
  6. Fill the cooling system. Refer to Draining and Filling Cooling System  .

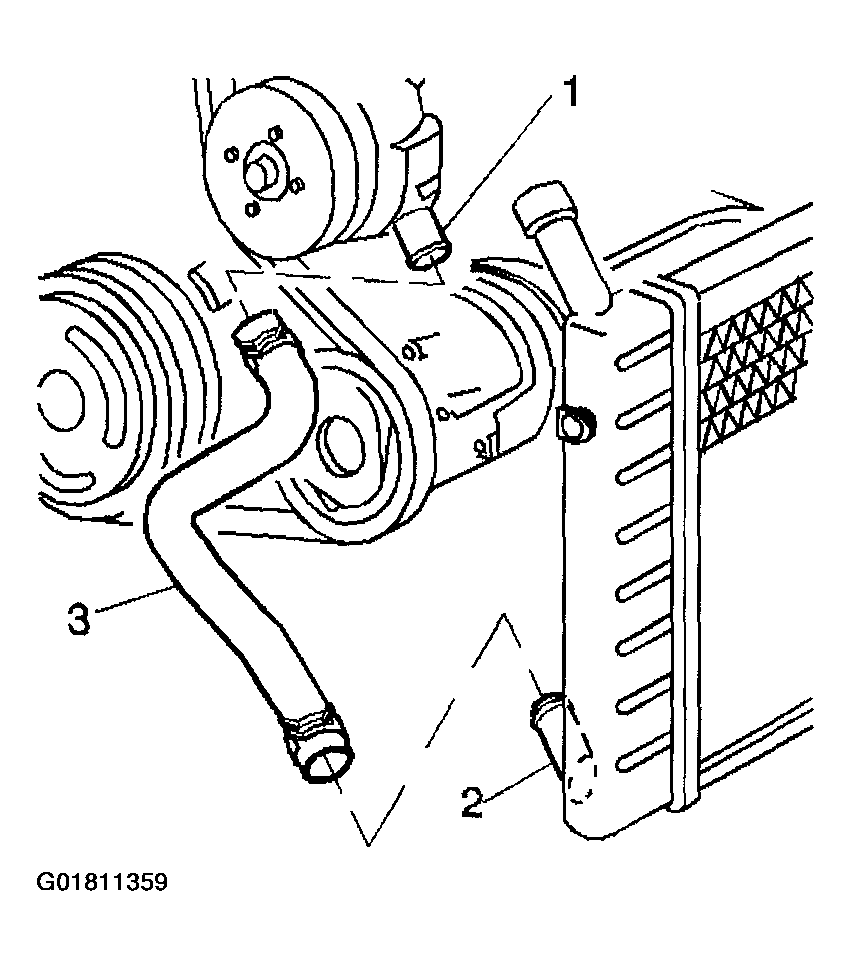

    Fig 1: Installing Radiator Outlet Hose
    G01811359Courtesy of GENERAL MOTORS CORP.
