Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system to a level below the hose being removed. Refer to Draining and Filling Cooling System  .
  2. Using the J 38185,  reposition the hose clamp at the radiator and the coolant outlet.
  3. Remove the radiator inlet hose clamps (1) and hose (2) from the radiator and the coolant outlet.

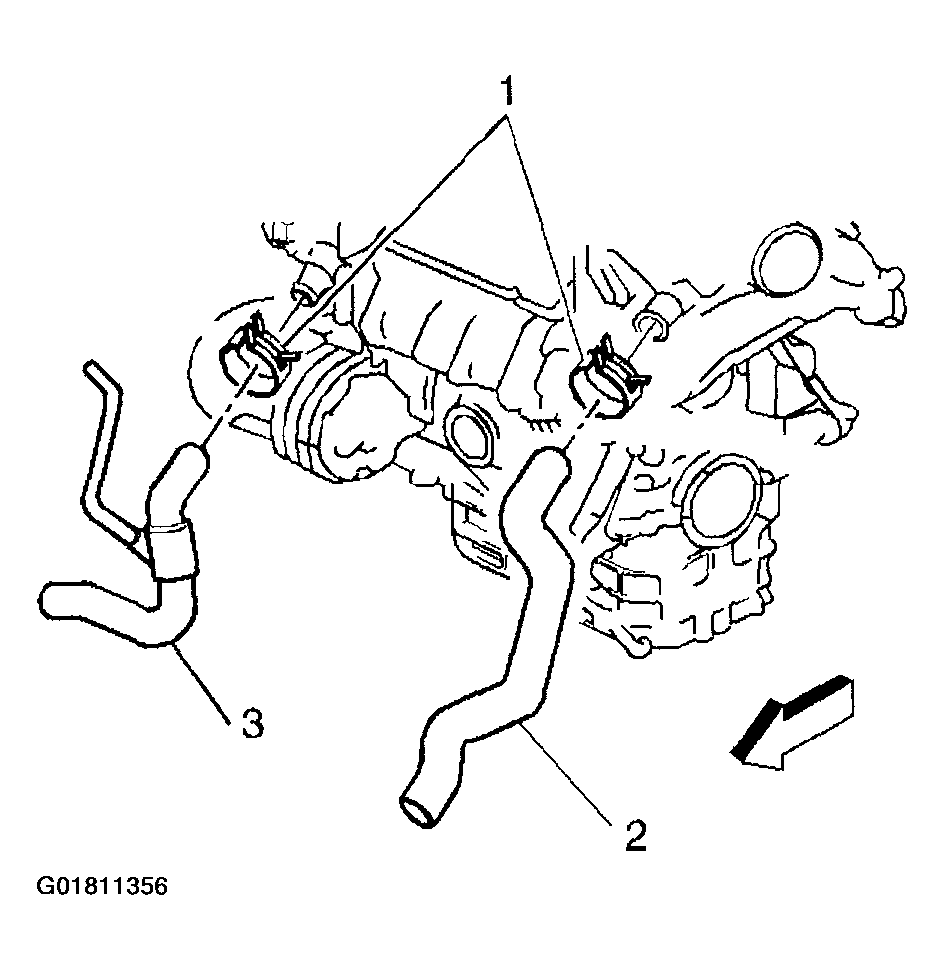

    Fig 1: Removing Radiator Inlet Hose
    G01811356Courtesy of GENERAL MOTORS CORP.
