Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: To help avoid personal injury or damage to the vehicle, a bent, cracked, or damaged fan blade or housing should always be replaced.
  1. Remove the bolt which retains the A/C line to the fan shroud.
  2. Remove air deflector shield.
  3. Remove electrical harness from cooling fan retainers.
  4. Disconnect the cooling fan electrical connector.
  5. Remove the four upper fan bolts.
  6. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

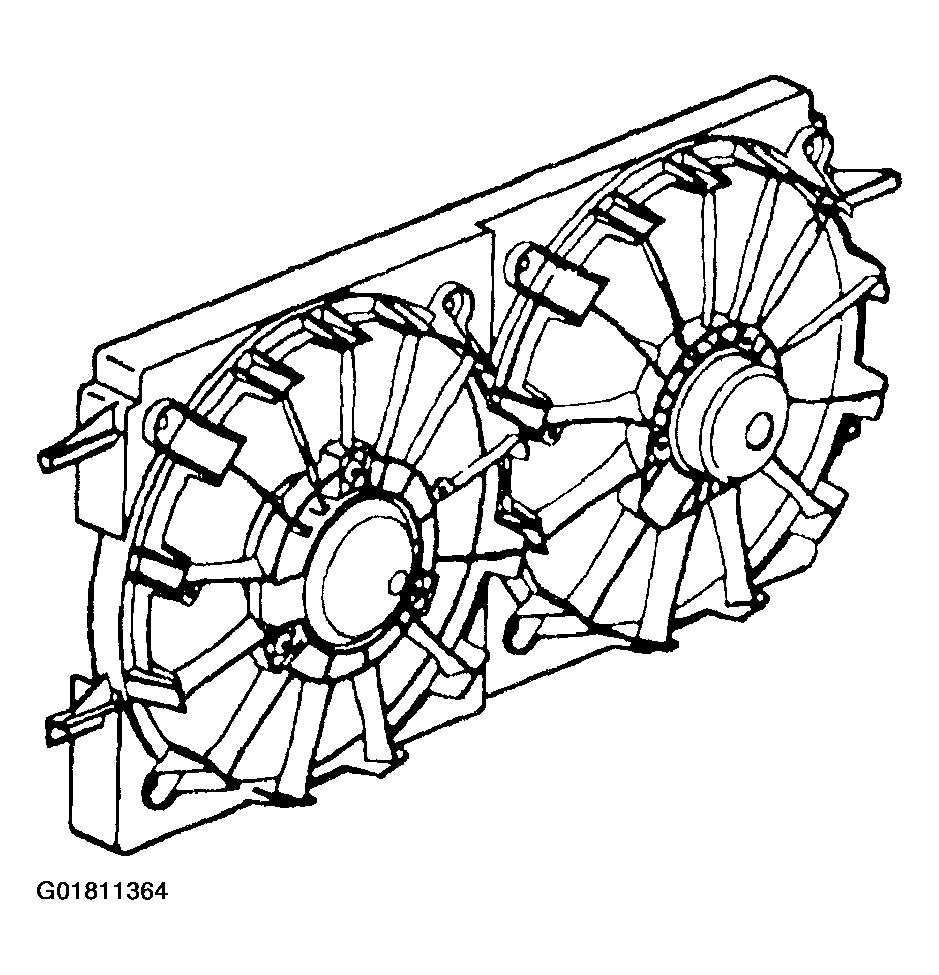

    Fig 1: Removing Cooling Fan
    G01811364Courtesy of GENERAL MOTORS CORP.
  7. Remove lower closeout panel.
  8. Remove the four lower fan bolts.
  9. Remove the fan from the shroud.
  10. Remove fan shroud from radiator.
