Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install fan shroud to radiator.
  2. Install the fan to the shroud.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the four lower fan bolts.

    Tighten

    Tighten bolts to 10 N.m (89 lb in).

  4. Install lower closeout panel.
  5. Lower the vehicle.
  6. Install the four upper fan bolts.

    Tighten

    Tighten bolts to 10 N.m (89 lb in).

  7. Connect the cooling fan electrical connector.
  8. Install wiring harness to retainers on cooling fans.
  9. Install air deflector.
  10. Install bolt to retain A/C line to fan shroud.

    Tighten

    Tighten bolt to 10 N.m (89 lb in).

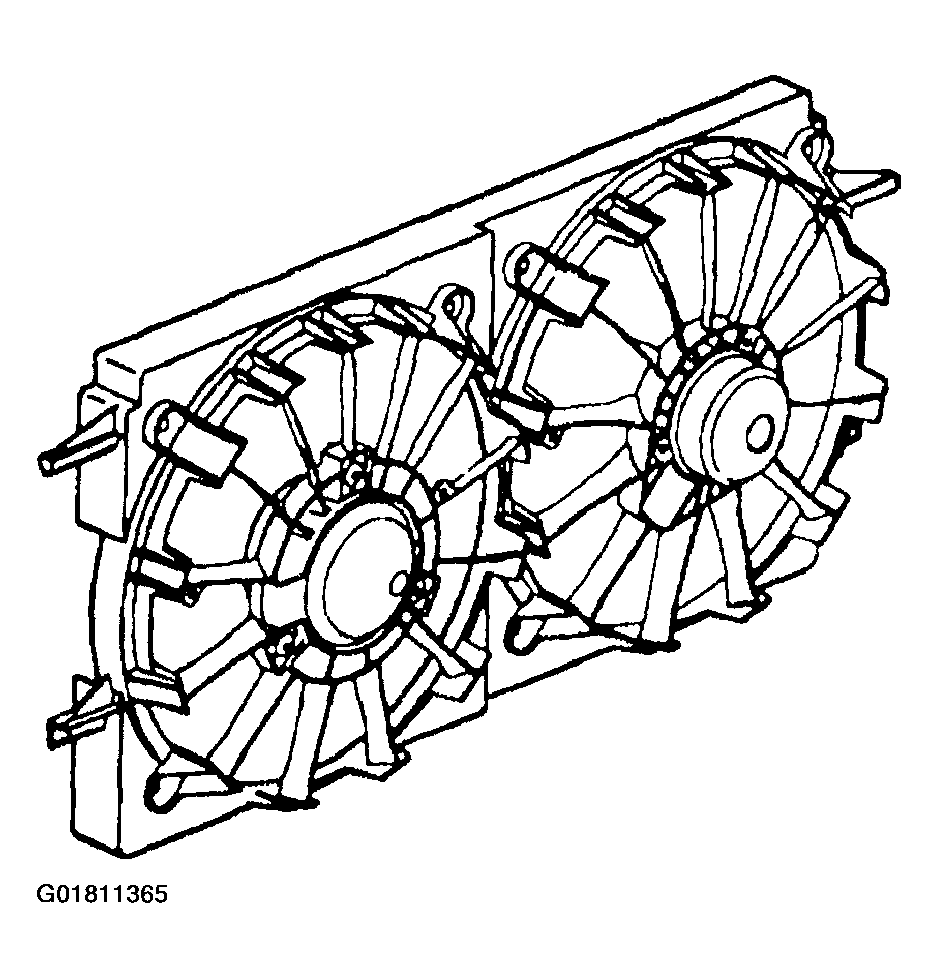

    Fig 1: Installing Cooling Fan
    G01811365Courtesy of GENERAL MOTORS CORP.
