Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Disconnect the engine coolant heater cord from the engine coolant heater.
  3. Remove the engine coolant heater cord straps.
  4. Disconnect the upper engine coolant heater cord from the diagonal brace strap.
  5. Remove the engine coolant heater cord.

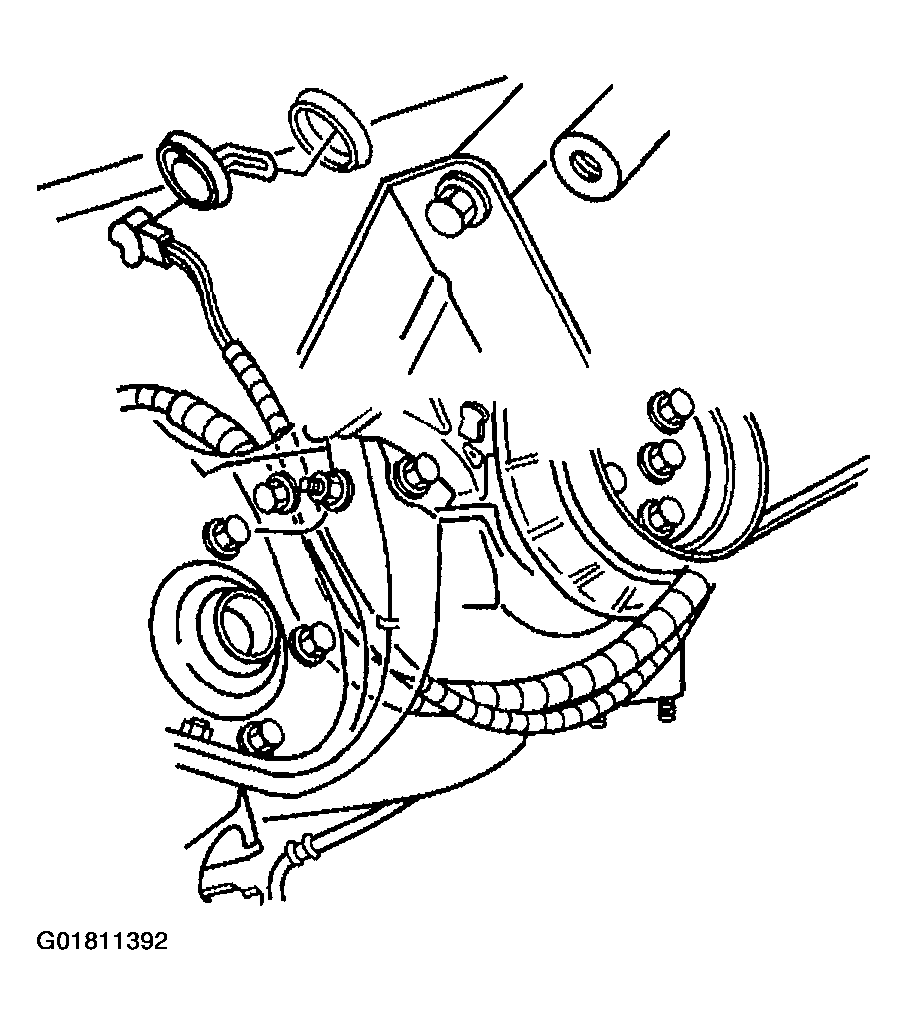

    Fig 1: Removing Coolant Heater Cord
    G01811392Courtesy of GENERAL MOTORS CORP.
