Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front door window to the full up position.
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the carpet retainer. Refer to CARPET RETAINER REPLACEMENT .
  4. Disconnect the rubber conduit from the front door pillar.

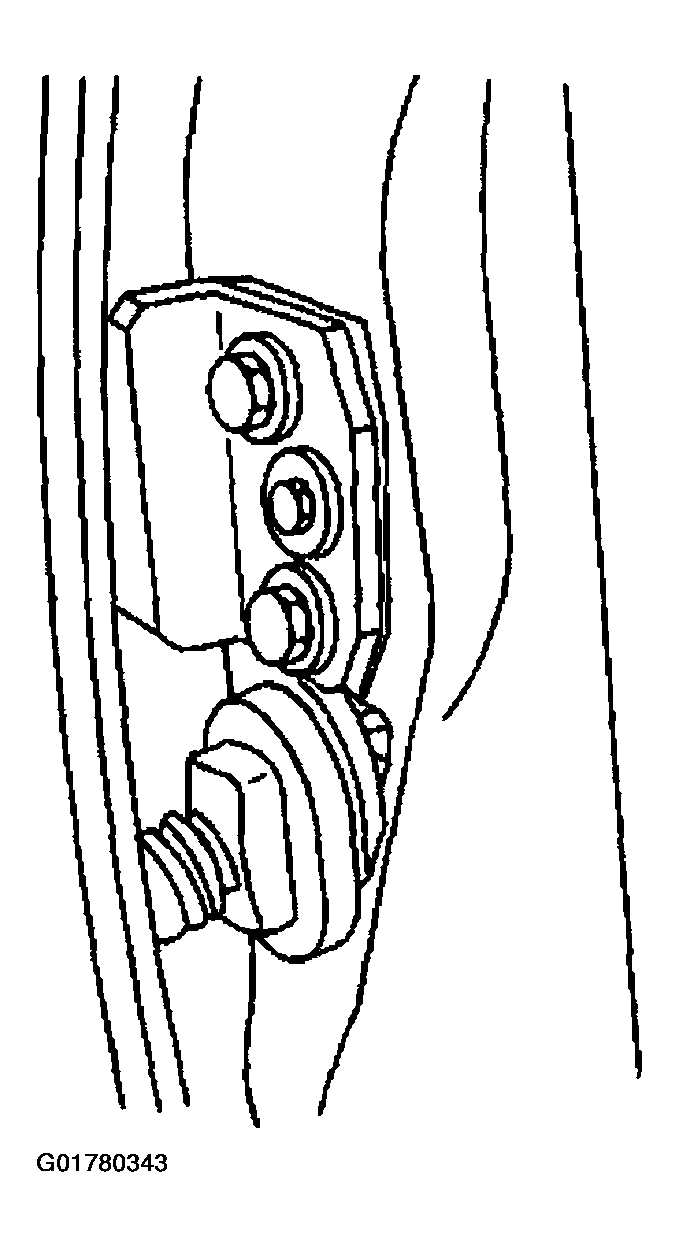

    Fig 1: Disconnecting Front Door Pillar Rubber Conduit
    G01780343Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the front door wiring harness (1) from the main body wiring harness at the front door pillar.
  6. Remove the front door wiring harness (1) through the opening in the front door pillar.

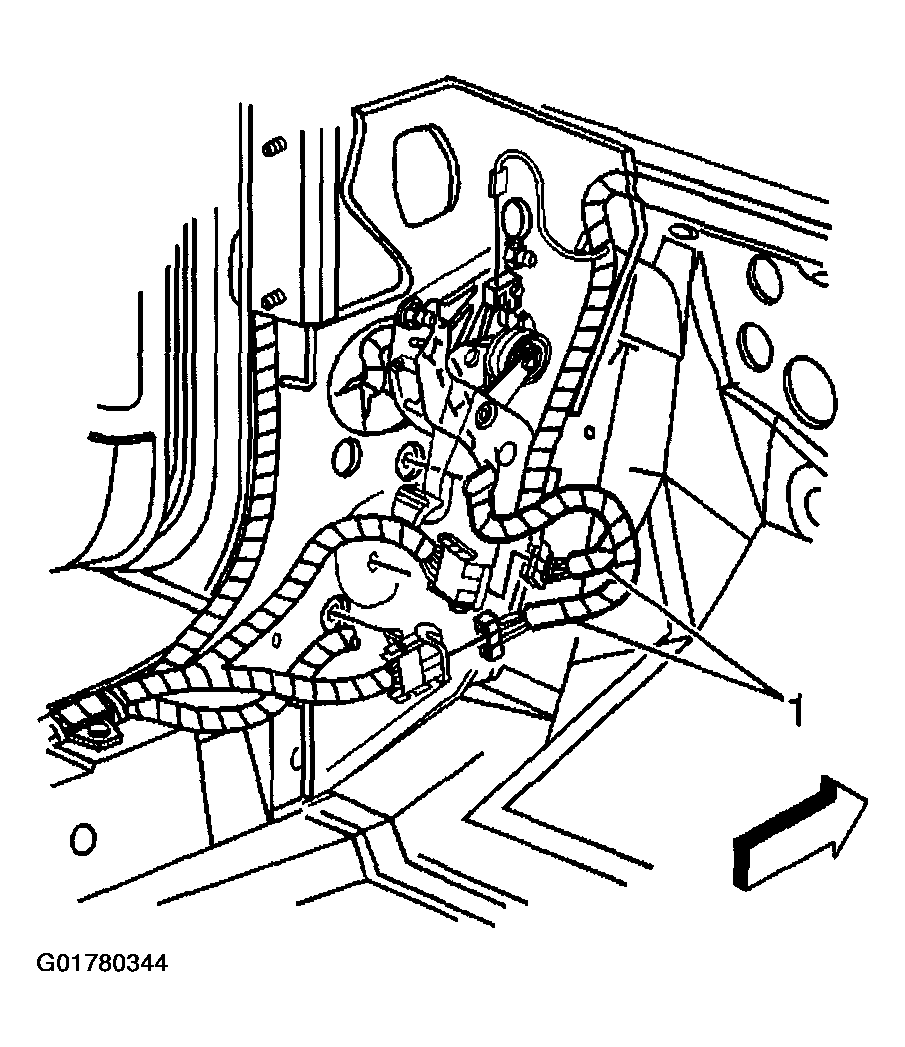

    Fig 2: Disconnecting Front Door Wiring Harness
    G01780344Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the rubber conduit from the front door.
  8. Disconnect the front door wiring harness from the front door components.
  9. Disconnect the front door wiring harness rosebuds from the front door.
  10. Route the front door wiring harness through the opening in the front door and remove the front door wiring harness from the front door.

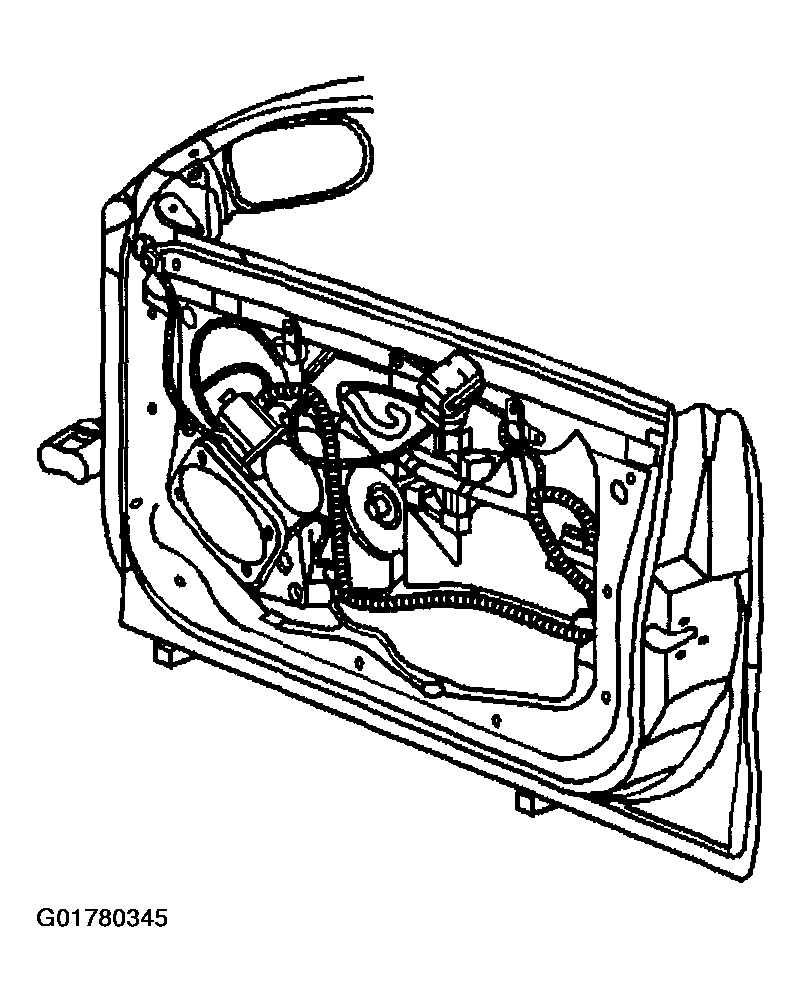

    Fig 3: Identifying Front Door Wiring Harness Routing
    G01780345Courtesy of GENERAL MOTORS CORP.
