Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Starting at the top and pulling downward, separate the rear door water deflector (1) from the rear door.
  3. Route the electrical harness through the openings in the rear water deflector (1).
  4. Remove the rear door water deflector (1) from the rear door.

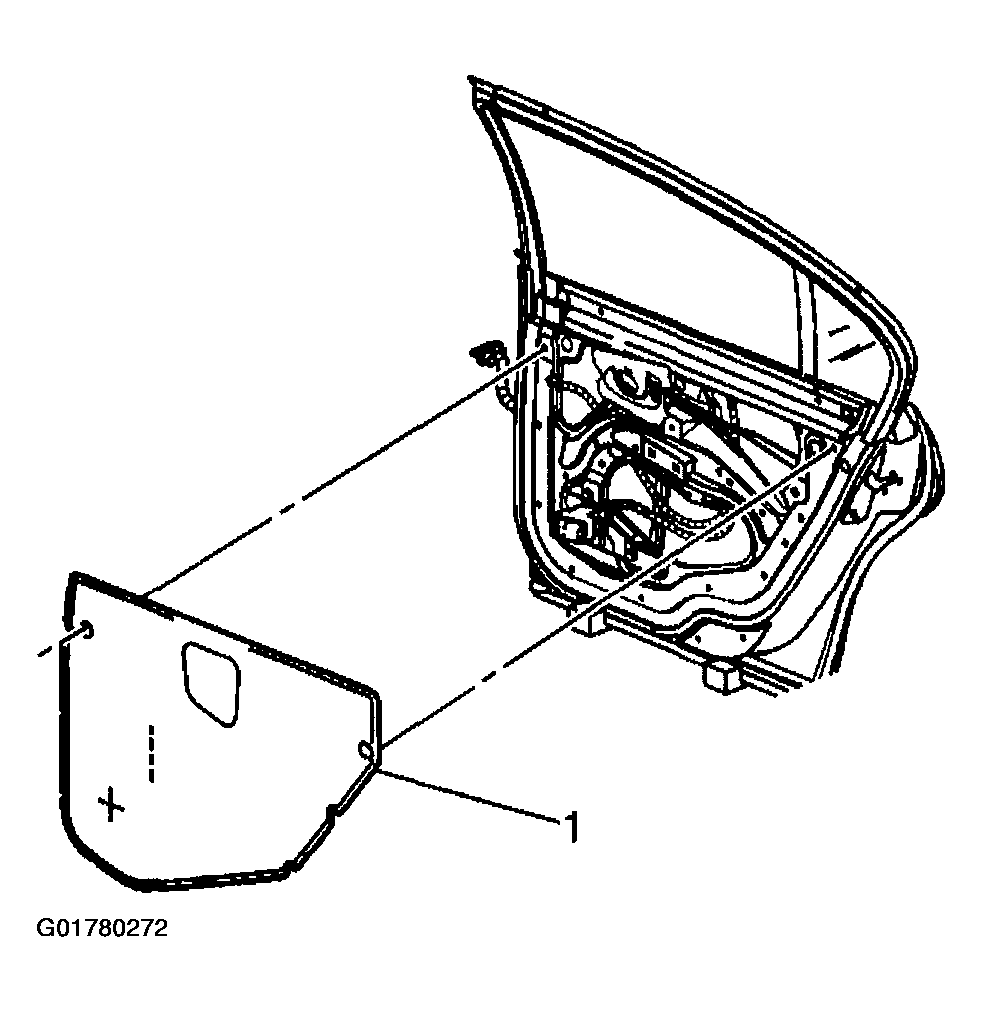

    Fig 1: Removing Rear Door Water Deflector
    G01780272Courtesy of GENERAL MOTORS CORP.
