Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door handle bezel. Refer to Door Handle Bezel Replacement .
  2. Remove the power window switch from the door trim panel, if equipped. Refer to Power Window Switch Replacement - Left Front  or Power Window Switch Replacement - Right Front  .
  3. Use a flat bladed tool in order to remove the inside door pull handle plug (3) from the door trim panel (1).
  4. Remove the door trim panel screws (2) from under the inside pull handle.
  5. Remove the window regulator handle, if equipped. Refer to Window Regulator Handle Replacement-Door .
  6. Using the J 38778  and starting at the door bottom, disengage the door trim panel retainers (4) from the door.
  7. Lift up on the door trim panel to disengage it from the inner belt molding.
  8. Remove the door trim panel (1) from the door.

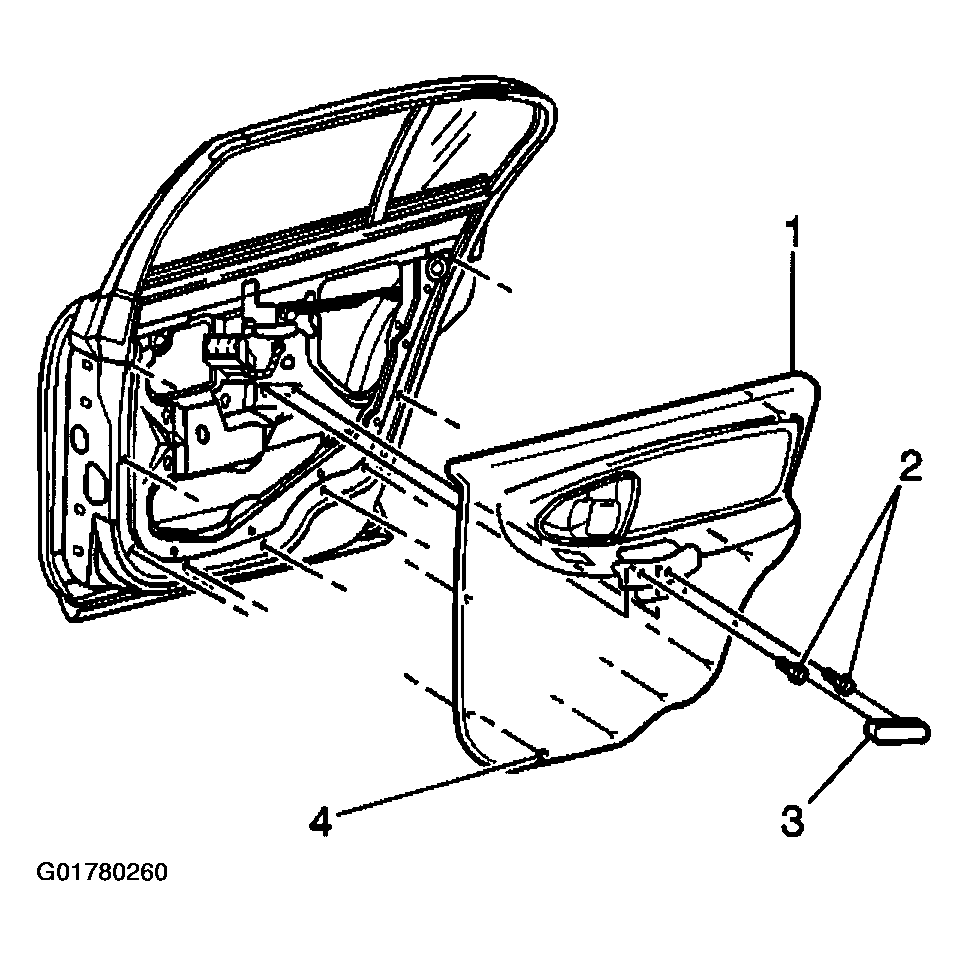

    9. Fig 1: Removing Door Trim Panel
    G01780260Courtesy of GENERAL MOTORS CORP.
