Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel insert from the door. Refer to Trim Panel Insert Replacement - Front Door .
  2. Remove the front door handle bezel. Refer to Door Handle Bezel Replacement .
  3. Remove the power accessory switch panel. Refer to Power Accessory Switch Panel Replacement .
  4. Use a flat bladed tool in order to remove the inside door pull handle plug.

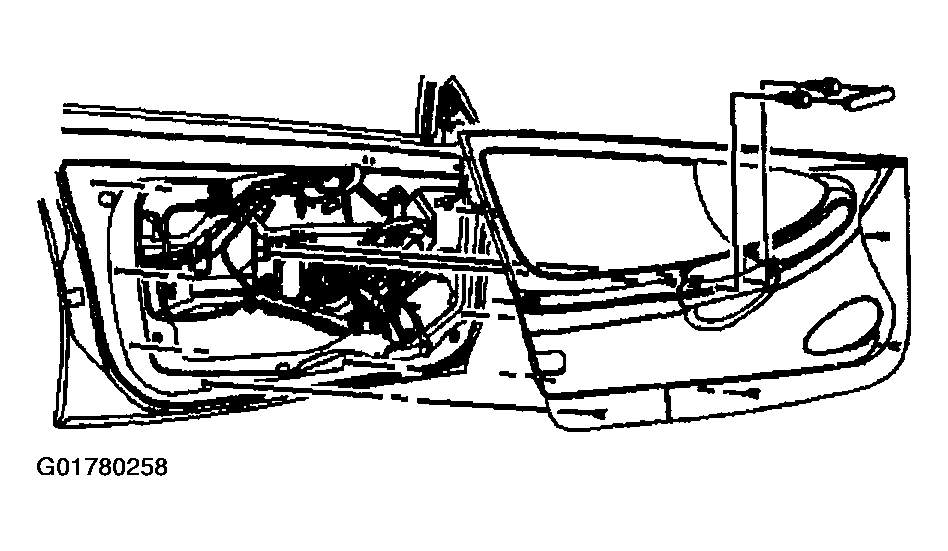

    Fig 1: Removing Side Front Door Trim Panel
    G01780258Courtesy of GENERAL MOTORS CORP.
  5. Remove the door trim panel screws from under the inside pull handle.
  6. Remove the window regulator handle, if equipped. Refer to Window Regulator Handle Replacement-Door .
  7. Using J 38778  and starting at the door bottom, disengage the door trim panel retainers.
  8. Lift up on the door trim panel to disengage it from the inner belt molding.
  9. Remove the door trim panel from the door.
