Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the lower front corner rearward in order to disengage the hidden plastic tab.
  2. Push the lower rear corner forward in order to disengage the hidden plastic tab.
  3. Pull inward in order to disengage the top clip.
  4. Remove the front door upper trim panel (1) insert.

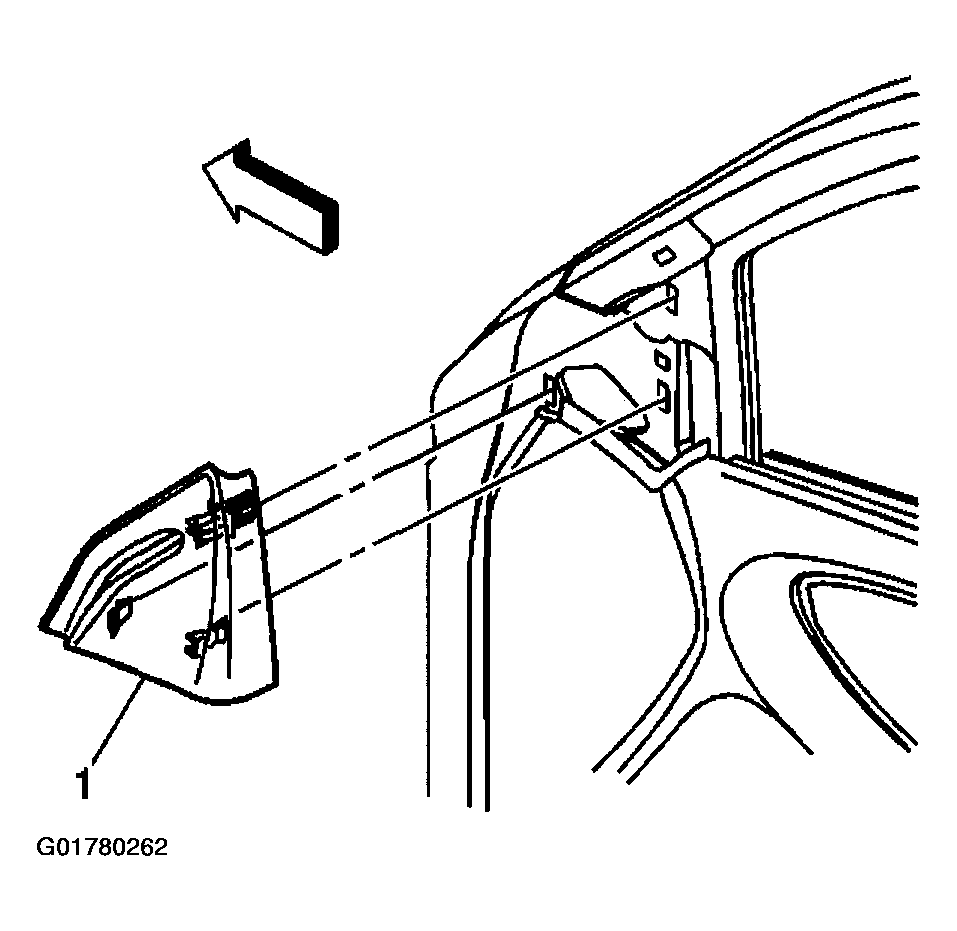

    Fig 1: Removing Front Door Trim Panel Insert
    G01780262Courtesy of GENERAL MOTORS CORP.
