Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Mark the position of the striker with a grease pencil.
  3. Remove the door lock striker bolts (1).
  4. Remove the door lock striker (3). and the door lock striker spacers (2) from the body.

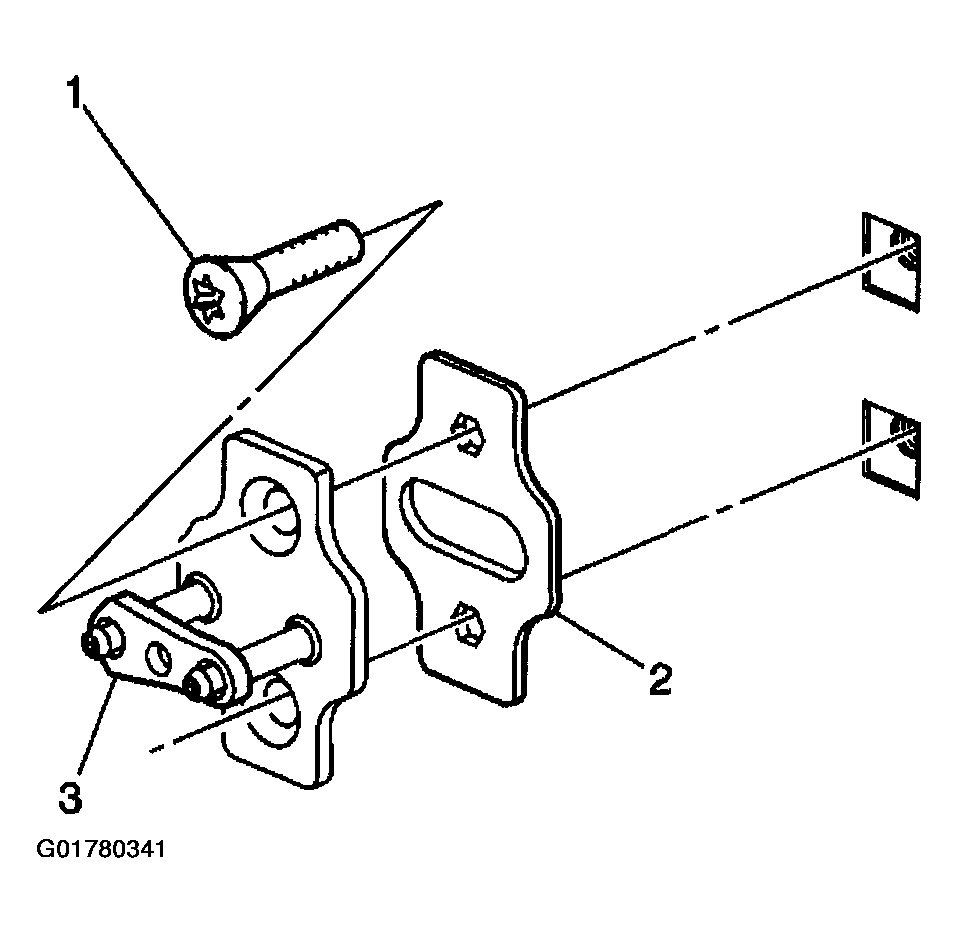

    Fig 1: Removing Door Lock Striker
    G01780341Courtesy of GENERAL MOTORS CORP.
